Numerics

Spectral discretization

Perpendicular spatial coordinates are discretized with Fourier modes on a uniform grid in \(x\) and \(y\), while the parallel coordinate is resolved in real space along the field line. The velocity space uses a Hermite-Laguerre basis. The resulting data layout for a single species is

(N_l, N_m, N_y, N_x, N_z).

Algorithm mapping (numerics → code)

The core numerical algorithms and their implementation entry points are:

JAX execution model

The implementation leverages the following JAX primitives:

  • JIT compilation: jax.jit is used in spectraxgk.linear.integrate_linear() to stage time-stepping kernels.

  • Loop fusion: jax.lax.scan drives the time integration loop.

  • FFT grids: jax.numpy.fft.fftfreq is used in spectraxgk.core.grid.build_spectral_grid().

  • Sparse Krylov solver: solvax.gmres is used for implicit linear and nonlinear IMEX time steps through one shared SPECTRAX-GK policy adapter. Nonlinear IMEX reverse mode wraps the tolerance-controlled solve with solvax.linear_solve. Its implicit-function VJP solves the transposed linear system instead of differentiating dynamic GMRES iterations; plain and checkpointed two-step trajectories agree with centered finite differences. A separate gate rebuilds the gyrokinetic cache and matrix-free operator from a traced \(R/L_{T_i}\) and verifies that the VJP includes both right-hand side and operator dependence. Shift-invert eigenmode extraction temporarily retains the prior JAX GMRES route because its branch-continuity gate has not passed with the replacement.

  • Backend-aware Hermite line solve: solvax.tridiagonal_solve uses a deterministic Thomas recurrence on CPU and the fused JAX/vendor path on accelerators. SPECTRAX-GK moves only the Hermite system axis; all remaining dimensions are independent line-solve columns.

  • Memory-bounded sensitivities: solvax.chunked_jacfwd underlies the geometry gradient report when jacobian_chunk_size is set. Chunking changes batching and peak memory, not the mathematical JVP columns. Without a chunk request, jacobian_mode="auto" uses forward mode for few controls and reverse mode for few observables; the resolved mode is recorded and checked against finite differences.

  • Stencil operations: jax.numpy.roll and jax.numpy.pad implement the centered z derivative and Hermite/Laguerre ladder couplings in spectraxgk.linear.grad_z_periodic(), spectraxgk.linear.streaming_term(), spectraxgk.linear.apply_hermite_v(), spectraxgk.linear.apply_laguerre_x().

These links are clickable in the HTML docs via the viewcode extension.

Structured solver dependency contract

SPECTRAX-GK requires solvax>=0.7.3,<0.8. Version 0.7.3 is the current admitted release because its complex Krylov and structured-solve interfaces pass the downstream linear, IMEX, geometry-gradient, and implicit-objective suite on the current JAX stack. The release also retains current-JAX linear-transpose compatibility, complex CPU/GPU tridiagonal identity gates, and strict type information. Generic numerical algebra lives in SOLVAX; gyrokinetic state layout, linked-boundary assembly, preconditioner coefficients, eigenbranch tracking, transport windows, and physics gates remain in SPECTRAX-GK.

The admitted migration covers the Hermite-line tridiagonal solve, memory-chunked geometry Jacobians, and implicit linear/nonlinear time-step GMRES. Implicit time stepping now exposes one FGMRES algorithm with explicit tolerance, restart, iteration-limit, and physical-preconditioner controls; the obsolete backend-name selector has been removed.

Shift-invert remains explicitly excluded. In its current streaming test, both inner solvers stagnate above the requested tolerance and their small solution difference changes the selected outer eigenbranch. The prior JAX route remains in that one call site until preconditioning/recycling improvements pass inner residual, eigenpair residual, eigenvalue, and eigenvector-overlap gates.

Time integration algorithms

The linear solver supports:

  • Forward Euler (method="euler") and RK2/RK4 explicit schemes for non-stiff runs.

  • reference-compatible RK4 with CFL step control (integrate_linear_explicit). The timestep is recomputed from the linear max-frequency estimate using the benchmark-locked CFL rule, and growth rates are extracted from the midplane phi ratio using the same diagnostic convention as the tracked comparison data.

  • IMEX (semi-implicit) where the collisional/hyper-diffusion terms are treated implicitly and the remaining terms explicitly.

  • Backward Euler + GMRES in method="implicit" for stiff scans, with a diagonal preconditioner that includes damping and drift/mirror diagonals.

  • IMEX (implicit linear operator + explicit nonlinear term) in method="imex" for nonlinear runs, using the same GMRES-based linear solve and preconditioner. Reverse derivatives use the converged-system implicit derivative, so the gradient does not depend on the number of Krylov iterations except through primal/transpose solve accuracy.

These are all implemented in spectraxgk.linear.integrate_linear() and share the cached operator data assembled by spectraxgk.linear.build_linear_cache().

Diffrax integration

Diffrax-backed solvers are available via spectraxgk.solvers.time.integrate_linear_diffrax() and spectraxgk.solvers.time.integrate_nonlinear_diffrax(). Explicit solvers (e.g., Tsit5) and implicit/IMEX solvers (e.g., KenCarp) are supported. Progress reporting is disabled by default; enable it by setting TimeConfig.progress_bar=True (or progress_bar=True in the integrator call). Diffrax currently emits a warning when evolving complex-valued states; the solvers still run, but treat this as experimental behavior.

Use spectraxgk.config.TimeConfig and spectraxgk.solvers.time.runners.integrate_linear_from_config() to select diffrax integration from input configuration without changing call sites. By default, TimeConfig enables diffrax with a fixed-step Dopri8 solver; set use_diffrax=False to force the built-in fixed-step integrators.

For distributed parallelization, set TimeConfig.state_sharding = "auto" (or "ky" / "kx" for the release-gated nonlinear path) to partition the packed state array over multiple JAX devices. This is honored by diffrax integrations and by the fixed-step nonlinear scan through integrate_nonlinear_sharded. When only one device is visible, the parallelization request is ignored and the run proceeds on a single device while preserving the same control-flow path for identity testing. The nonlinear config path intentionally rejects "z" sharding because the current multi-device FFT-axis decomposition has not passed the identity gate. On macOS you can emulate multiple CPU devices with XLA_FLAGS=--xla_force_host_platform_device_count=2 for non-FFT-axis parallelization checks, but the nonlinear whole-state pjit profile skips active multi-device CPU sharding by default because current JAX/XLA CPU FFT layouts can abort before Python can catch a failure. Multi-GPU artifacts remain the release reference for active nonlinear state-sharding diagnostics, and production nonlinear speedup claims still require separate identity, transport-window, and profiler gates.

For scan workloads, the default path is custom fixed-step imex2 with TimeConfig.use_diffrax=False. This keeps stepping shape-stable and improves throughput for multi-ky scans. Diffrax adaptive stepping remains available as an optional mode through TimeConfig.use_diffrax=True.

Adaptive differentiation is an explicit API policy rather than an accidental property of the controller. For a low-dimensional tangent direction, call spectraxgk.solvers.time.integrate_linear_diffrax() with derivative_mode="forward". This selects native JAX rules and supports a JVP through the accepted adaptive trajectory. The release gate uses a nonzero thermodynamic-drive tangent: it agrees with a centered finite difference to 1.9e-5 relative error, and changing rtol from 1e-3 to 3e-4 changes the objective and tangent by less than 2e-4 relative. The default derivative_mode="reverse" retains the custom-VJP field solve used by scalar objectives. With checkpoint=True, adaptive Tsit5 uses Diffrax’s recursive checkpoint adjoint; its reverse gradient matches both the forward JVP and centered finite difference to 1.9e-5 relative on the same physical observable. Adaptive reverse mode without checkpointing remains unpromoted because its direct adjoint exceeded the bounded local memory envelope.

Nonlinear FFT bracket

The nonlinear \(E\times B\) term is evaluated pseudospectrally using FFT-based derivatives in the perpendicular plane. By default SPECTRAX-GK uses the compressed real-FFT path (TimeConfig.compressed_real_fft = true), which computes gradients from the Nyquist-compressed (N_y/2+1) spectrum using the benchmark-compatible compressed wavenumber layout: non-negative k_y (including positive Nyquist when N_y is even) and a positive Nyquist multiplier on the k_x axis when N_x is even. The result is then expanded back to full \(k_y\). This matches the tracked nonlinear reference layout and minimizes memory traffic. Set compressed_real_fft = false to use the full complex FFT bracket instead.

For electromagnetic nonlinear runs, SPECTRAX-GK stacks the gyro-averaged potentials J0*phi, J0*apar, and the bpar correction into a single FFT batch. This collapses multiple rFFT/iFFT passes into one pipeline per step and reuses the same real-space gradients for all channels. Laguerre/Bessel factors on the benchmark quadrature grid (J0 and J1/alpha) are precomputed once per grid and cached in the linear operator, so the nonlinear kernel only applies them via inexpensive elementwise multiplies. For nonlinear runs that do not require the benchmark quadrature grid, set TimeConfig.laguerre_nonlinear_mode="spectral" to skip the Laguerre quadrature transform and instead use the spectral gyroaverage factors Jl directly. The default "grid" mode applies the quadrature transform.

Equilibrium-flow shearing coordinates

The validated coordinate kernel spectraxgk.operators.nonlinear.projection.advance_shearing_coordinates() follows a shearing wave according to

\[k_x^*(t) = k_x(0) - k_y\,\gamma_E t.\]

This model isolates perpendicular equilibrium-flow decorrelation. It does not include a parallel-velocity-gradient drive, which is a distinct physical term and requires its own normalization, instability, and transport gates [Schekochihin12] [Ball19]. The matched comparison campaign uses the same scope: continuous \(k_x^*\) geometry updates, nearest-cell remapping, and the residual nonlinear FFT phase, without claiming a toroidal-rotation or parallel-flow-shear model.

When the displacement crosses half a radial Fourier cell, the state is moved to the nearest \(k_x\) mode. The residual sub-cell displacement is retained both in the effective wavenumber and in the real-space phase \(\exp(i\,\delta k_x x)\). Modes leaving the two-thirds retained band are zeroed rather than wrapped around the FFT grid. Retaining this residual phase implements the corrected-remap principle and avoids the non-convergent smeared nonlinear coupling of integer-only wavevector remapping [McMillan19]. Tests cover zero-shear identity, the analytic shearing-wave trajectory, norm-preserving forward/inverse remaps, the de-alias boundary, and JAX tangents with respect to both \(\gamma_E\) and the radial scale against centered finite differences.

The integer nearest-mode decision is piecewise constant and therefore uses a stopped tangent. Continuous effective wavenumbers and phases remain differentiable between the measure-zero remap events. This kernel is not yet a shipped equilibrium-flow-shear model. The periodic/linked-boundary cache updater spectraxgk.operators.linear.cache_builder.update_linear_cache_for_sheared_kx() already rebuilds \(k_\perp^2\), drift frequencies, gyroaverages, Bessel tables, field-solve inputs, bracket multipliers, and hyperdiffusion from the two-dimensional effective \(k_x\) grid. Its zero-shear arrays and complete linear RHS reproduce the static-cache path, and its nonzero-shear tangent agrees with finite differences. The full-complex nonlinear bracket uses split transforms to apply the residual radial phase between the \(k_x\) and \(k_y\) FFTs; a canonical-coordinate invariance test verifies that the Poisson bracket is unchanged by the shear-coordinate transformation. The full-complex state is projected onto its Hermitian subspace after every remap and Runge–Kutta stage, matching the real-field constraint implicit in the production real-FFT layout. Without this projection a physical pilot accumulated a 3.15% conjugate-symmetry defect by \(t=5\); the corrected trajectory keeps that residual at machine zero. The compressed bracket can also evaluate this fractional state in canonical shearing coordinates: the common residual phase of the distribution and potential cancels from their Poisson bracket, leaving the row-relative \(k_x\) mesh. Direct full/compressed bracket, JAX-tangent, three-step state, and heat-flux gates agree within 2e-5 relative tolerance. The research function spectraxgk.nonlinear.integrate_nonlinear_sheared() verifies zero-shear trajectory identity and cumulative full-step remapping. Its midpoint RK2 and three-stage Heun RK3 routes evaluate each RHS in the correctly remapped stage coordinate basis and return each derivative to the step basis before combining stages. Both recover their designed orders on a physical drift/diamagnetic trajectory. A fixed-window Cyclone-like linear ITG pilot is converged to below 1% under a factor-two timestep refinement and reduces the final potential norm by more than 20% when \(\gamma_E=1\). This is the expected decorrelation direction when the shearing rate exceeds the instability rate [Biglari90] [Waltz95], but it is not a nonlinear transport validation.

Standard linked flux tubes use the cache-normalized radial spacing selected by the twist-and-shift construction. The equilibrium-flow displacement is constant along a fixed-\(k_y\) linked chain, so the chain topology and endpoint separation are unchanged while \(k_\perp\), drifts, gyroaverages, and field operators are rebuilt. RK2 and RK3 recover the established linked trajectory exactly at zero shear. At nonzero shear, tests preserve every linked-neighbor spacing and compare the cache tangent with a centered finite difference. Non-twist flux tubes remain unsupported because their radial coordinate is \(z\) dependent.

The fixed-step method="imex" route applies explicit nonlinear forcing in the current sheared basis, remaps its right-hand side and warm start to \(t_{n+1}\), rebuilds the matrix-free endpoint operator, and solves

\[[I-\Delta t L(t_{n+1})]G_{n+1} = G_n^* + \Delta t\,N(G_n,t_n)^*.\]

The tolerance-controlled solve uses the shared SOLVAX implicit derivative rule. It is exactly identical to the static linked IMEX trajectory at zero shear, recovers first-order convergence on a physical nonzero-shear trajectory, and passes endpoint heat-flux plus JVP/VJP finite-difference gates. Adaptive sheared IMEX and custom collision operators remain explicitly rejected.

State-only campaigns may set return_fields=False. This follows the main nonlinear-integrator contract and avoids the endpoint field/RHS evaluation and field-history allocation on every step; the default retains field histories for diagnostic compatibility. State-only and field-returning trajectories satisfy the same zero-shear identity gate.

Field-returning and transport scans reuse each accepted endpoint RHS and field solve as the next step’s initial evaluation. The carried physical time ensures the reused derivative and shearing basis are identical. This removes one redundant RHS evaluation per step without altering the Runge–Kutta tableau; the state-only path remains separate so it never computes fields solely for reuse.

spectraxgk.nonlinear.integrate_nonlinear_sheared_transport() records the canonical per-species gyro-Bohm heat flux at every accepted step. It uses the same flux-surface quadrature and transport kernel as production nonlinear diagnostics and evaluates that kernel with the instantaneous sheared cache. The returned ShearedTransportTrace stores only the final distribution plus time, and heat-flux traces, avoiding distribution- and field-history allocations. Its default differentiable=True path traces the JAX-native field solve so both forward JVP and reverse gradient reach the transport objective; both agree with a centered finite difference in the validated mini-case. Setting differentiable=False selects the faster custom-VJP production field solve, and a numerical-identity gate confirms that this policy switch does not alter the trajectory or heat flux.

Setting fixed_dt=False applies the same production nonlinear CFL policy used by the main diagnostic integrator. The accepted step combines conservative linear-frequency bounds with the instantaneous pseudo-spectral \(E\times B\) frequency and is clipped by dt_min and dt_max. The trace’s time array then records the nonuniform accepted-time grid, while steps is an explicit work budget. Time, step size, shearing remaps, fields, and transport remain inside the JAX scan so tangents propagate through the piecewise-smooth adaptive policy away from clipping and remap transitions. Long campaigns can continue from final_state using the previous terminal time and accepted step as initial_time and initial_dt. A chunked versus single-scan identity gate covers the absolute shearing basis, state, and heat-flux trace.

Treatment effects are evaluated with spectraxgk.matched_nonlinear_transport_report(), not by comparing two instantaneous chaotic traces. The baseline and treatment first pass independent post-transient finite-sample, running-mean drift, terminal-mean, block count, and conservative SEM gates. Only then is the relative mean reduction reported; its uncertainty separation uses the quadrature sum of the two block/bootstrap SEMs. A drifting source window therefore blocks a treatment claim even when its provisional mean is lower.

The first full-grid internal transport campaign uses 64x64x24 spatial resolution, Nl=4, Nm=8, periodic x0=y0=28.2, adaptive Heun RK3, dt_max=0.02, and x64 precision. Over the independently selected t=[240,300] window, both the unsheared and gamma_E=0.01 traces pass the finite-sample, 12-block, running-drift, terminal-mean, and bootstrap-SEM gates. Their heat fluxes are 10.5009 +/- 0.0949 and 9.8603 +/- 0.0569, giving a 6.10% reduction with 5.79 quadrature-SEM separation. Moving the lower window bound from t=240 through t=280 preserves the reduction direction (4.46--6.28%). This closes the internal saturated-transport check for the periodic research path.

A clean external comparison campaign used the same 64x64x24, Nl=4, Nm=8, periodic-domain contract and evolved both references from identical initial states to t=300. Over t=[240,300], the comparison traces pass the same finite-sample, stationarity, and uncertainty checks but give 5.9963 +/- 0.0321 without shear and 6.0014 +/- 0.0416 with shear. The corresponding -0.084% reduction is only -0.10 combined SEM and disagrees with the internal 6.10% response. This is negative parity evidence, not a flow-suppression result. A dealiased real-field regression shows that the full-complex and compressed-real Poisson brackets agree before and immediately after both integer and fractional remaps. A short physical sheared integration also reproduces the full-complex state and heat-flux trace with the canonical compressed bracket. A subsequent source audit localized a time-discretization difference: the external adaptive RK3 route advances shear once with the previous step size before selecting the next dt and holds that coordinate basis fixed across all RK stages. SPECTRAX-GK advances accepted physical time and evaluates each stage in its exact shearing basis. The -0.084% result is therefore negative cross-discretization evidence, not a model-identical parity failure. Linked-boundary and fixed-step IMEX implementation gates now pass.

A bounded fixed-step source-localization probe confirms that the external shearing path is active when the time policy is controlled. On a deterministic reduced periodic Cyclone-like case with \(\gamma_E=0.5\), the terminal Phi2 treatment ratios are 0.64032, 0.64051, and 0.64060 for dt=0.02, 0.01, and 0.005. The corresponding startup heat-flux ratios change from 0.5079 to 0.5142 and are not used as transport evidence. This closes only the short fixed-step response check.

The subsequent full-resolution fixed-step campaign used the same 64x64x24, Nl=4, Nm=8, periodic weak-shear contract through t=300. The internal fixed-IMEX baseline and treatment remained finite, but both failed the predeclared t=[240,300] stationarity policy. Their means are 15.4508 +/- 0.2628 and 16.1948 +/- 0.1602, a 4.82% increase rather than the required reduction. An independent fixed-RK4 comparison completed the same grid, timestep, duration, seed, dissipation, and diagnostic contract. Both of its windows pass the drift, terminal-mean, block, and SEM gates, with 11.7154 +/- 0.2157 and 14.6236 +/- 0.1407. This is a 24.82% increase, resolved by 11.29 combined SEM. Integrator-specific absolute trajectories are not claimed identical; the important result is that neither fixed-step audit supports the earlier adaptive suppression claim.

RK3 remains useful for bounded research campaigns because it expands the stable explicit operating envelope without changing the coordinate or transport definitions. This path is a numerical foundation, not a promoted physical model. The compressed-real bracket is an opt-in research route, while non-twist and linked boundaries remain distinct: linked standard tubes are gated, while non-twist tubes fail closed. The failed matched-response gate keeps flow shear out of input files and executable claims. The compact machine-readable record is docs/_static/flow_shear_fixed_step_response_gate.json; large raw states and comparison outputs are intentionally not tracked.

De-aliasing and hyperdiffusion

Nonlinear brackets are filtered using the standard 2/3 de-alias mask. The mask lives on the spectral grid and is applied after each bracket evaluation. Additional numerical stabilization is provided by hyperdiffusion in \(k_\perp\) (TermConfig.hyperdiffusion / D_hyper settings), which acts as a scale-selective damping term and is treated implicitly in IMEX schemes.

Performance tuning

SPECTRAX-GK includes several performance-oriented options that preserve end-to-end JAX differentiability:

  • Streaming growth-rate fits: use spectraxgk.solvers.time.integrate_linear_diffrax_streaming() to compute (gamma, omega) online without storing time series. This reduces memory pressure during long scans. The streaming fit supports phi or density moments via fit_signal and uses a fixed tmin/tmax window.

  • Batched ky scans: pass ky_batch>1 to the benchmark scan helpers to integrate multiple ky values at once using a sliced ky grid. Set fixed_batch_shape=True (default) to edge-pad the final batch and avoid recompilation on short tail batches.

  • Stacked FFT channels: nonlinear brackets batch phi/apar/bpar into a single FFT pipeline so the spatial derivatives are computed once and reused across fields. This removes redundant transforms and reduces FFT calls.

  • Donation and parallelized buffers: time integrators donate state buffers in JIT-compiled paths to reduce allocations. The diffrax integrators accept a state_sharding argument if you want to preserve explicit JAX parallelization on the state array.

  • Implicit preconditioning hooks: implicit_preconditioner accepts "auto"/"diag"/"physics"/"block" (full diagonal preconditioner), "damping" (collisional/hyper-only), "pas" (PAS line preconditioner), "pas-coarse" (line + coarse correction in kx/linked-kx chains), "hermite-line" (Hermite streaming line solve in m at fixed \(k_z\)), or "hermite-line-coarse" (Hermite line solve + kx-coarse correction), or "identity" to disable preconditioning.

  • Shift-invert preconditioning hooks: the shift-invert Krylov solver uses GMRES solves for (A - \sigma I)^{-1}. Configure KrylovConfig.shift_preconditioner to accelerate these solves with "damping" (element-wise inverse of the collisional/hyper damping). "hermite-line" and "hermite-line-coarse" remain accepted aliases but currently resolve to that conservative damping preconditioner; the real-time IMEX Hermite factorization is not a valid complex shift preconditioner. A dedicated complex block implementation must pass inner and outer residual gates before those aliases can advertise streaming-line acceleration. A preconditioned solve is checked against the original shifted system; if its true residual exceeds the requested tolerance by an order of magnitude, the solve is retried without that preconditioner, starting from the finite rejected iterate so useful Krylov progress is not discarded. This prevents convergence in a transformed norm from hiding a poor physical solve. Every returned pair is checked with the matrix-free relative residual \(\lVert Av-\lambda v\rVert/ \max(\lVert Av\rVert,|\lambda|\lVert v\rVert)\). Configure the acceptance threshold with KrylovConfig.shift_outer_residual_tol; the default is 0.1. Rejected primary and fallback pairs raise instead of returning a plausible frequency with an unconverged eigenvector.

  • Arnoldi breakdown policy: a candidate basis direction is retained only when its norm exceeds a dtype-scaled threshold relative to the applied operator. Exact and numerical happy breakdown therefore terminate the resolved subspace instead of amplifying roundoff into a spurious mode.

  • Physical Ritz refinement: after selecting a shift-invert Ritz vector, the solver recomputes its eigenvalue with the physical-operator Rayleigh quotient. For a fixed vector this scalar minimizes the Euclidean residual; it removes avoidable error from mapping an inexact inverse Ritz value through lambda = sigma + 1 / mu. The outer residual gate remains mandatory.

  • Interior-eigenvalue restart boundary: an augmented retained-Ritz prototype was tested against the physical KBM operator and removed. At matched Nl=8, Nm=24 resolution, retaining two and four nearby vectors selected damped or opposite-frequency branches and changed the outer residual from 0.881 to 0.922 and 0.991. Merely carrying several Ritz vectors is therefore not treated as Krylov–Schur: a future retained implementation must perform ordered Schur compression or an equivalently branch-preserving correction. Two further physical discriminators were also rejected at reduced Nl=4, Nm=8 resolution. An exact projected Jacobi–Davidson correction solved its correction equation to relative residual 0.035 but worsened the eigenpair residual from 0.742 to 0.876 on the first step. Ordered complex-Schur compression retaining four vectors selected a damped branch and changed the residual from 0.755 to 0.956 while costing about 61 seconds per restart. A propagated seed reduced the residual to 0.521 but selected the wrong damped branch. These failures rule out one-vector projection, generic thick restart, and seed changes as release repairs. The next candidate must couple the field and low-moment blocks or use a two-sided interior-eigenvalue correction, and must pass branch identity, physical residual, runtime, and peak-memory gates. A bounded A4000 check at Nl=8, Nm=24 reached only 0.429 after three projected corrections from 0.975 and moved to the wrong high-frequency branch; the projected systems themselves remained poorly converged. The failure therefore persists beyond the smallest CPU discriminator. A two-sided variant also failed because its adjoint inverse iterations had residuals between 0.67 and 2.12; its first accurately solved projected correction still worsened the physical residual to 0.870. A matrix-free low-moment block preconditioner that retained the self-consistent field response cost 240 seconds versus 30 seconds for the damping baseline and returned residual 0.972 on the wrong branch. Future work must therefore assemble and factor a genuinely reduced field/moment Schur block rather than nesting another full-operator Krylov solve. That reduced-block route was subsequently tested with a 1536 x 1536 complex field/moment block. Assembly took 0.49 seconds, factorization 0.15 seconds, and storage 36 MiB, so construction was not the bottleneck. However, diagonal and Hermite-line high-moment complements returned physical residuals 0.936 and 0.999 on incorrect branches, each taking about 55 seconds and more than 1.3 GB resident memory. The omitted high-moment drift/mirror coupling is therefore material; adding more coarse layers is not an accepted path without a new spectral transformation and an independently converged physical discriminator. JAX’s current Schur primitive is CPU-only, so it is not used in the CPU/GPU solver API. See the SLEPc Krylov–Schur documentation and harmonic extraction guidance.

  • Targeted shift-invert mode selection: set KrylovConfig.mode_family (for example "cyclone", "etg", "kbm") and KrylovConfig.shift_selection to stabilize branch selection in stiff spectra. KBM uses the positive reported-frequency convention in the tracked benchmark table, so its matrix eigenvalue target lies on the negative imaginary axis. KrylovConfig.fallback_method controls the automatic fallback policy when shift-invert returns a non-finite, strongly damped, or high-residual mode.

  • Reusable IMEX operators: nonlinear IMEX runs can prebuild and reuse the matrix-free linear operator with spectraxgk.nonlinear.build_nonlinear_imex_operator() and pass it to spectraxgk.nonlinear.integrate_nonlinear_imex_cached() via implicit_operator. When apar=bpar=0, the IMEX fixed-point and post-step field paths use the same electrostatic compiled linear-RHS route as the explicit nonlinear RHS, avoiding unused electromagnetic Hamiltonian branches while preserving the generic-RHS identity gate.

Automatic solver + fit-signal selection

For newcomer-friendly runs, the benchmark and runtime drivers accept solver="auto" and fit_signal="auto". The auto solver tries the preferred path for the case (time integration for ion-scale Cyclone/KBM benchmarks, Krylov for ETG) and falls back to the alternative if the returned (gamma, omega) is non-finite or violates require_positive. The auto fit-signal choice computes both phi and density moment time traces (when available), scores each using the same windowing rules (R^2 of log-amplitude and phase fits plus an optional growth-rate weight), and selects the higher score. To make this decision robust, auto mode disables streaming fits and stores the minimal time traces needed for the comparison.

Advanced users can override these defaults in TOML or Python drivers by setting solver="time"/"krylov" and fit_signal="phi"/"density" together with custom fit-window parameters.

Implementation note:

  • Cached hypercollision factors: the linear cache now stores the Hermite– Laguerre hypercollision ratios and masks to avoid repeated power operations inside the RHS assembly.

Custom collision operators

The shipped conserving long-wavelength model is independently exposed as drift_kinetic_dougherty_contribution. It implements Appendix C, equation (C6), of Frei, Hoffmann & Ricci (2022) in SPECTRAX-GK’s Hermite–Laguerre ordering. The test suite verifies exact agreement between that equation-level kernel and the production finite-Larmor-radius operator at b=0, its density/momentum/thermal null moments, non-positive quadratic rate, and collision-frequency JVP against centered finite differences. At finite b, the suite independently reconstructs the gyroaveraged flow and temperature moments in Mandell et al. equations (3.39)–(3.42), verifies the free-energy dissipation identity in equation (4.10), and measures first-order convergence to the drift-kinetic equation as b tends to zero. This is not a Sugama/Coulomb promotion: those operators require the complete mass/temperature-ratio-dependent test- and field-particle coefficients and their own ITG, zonal, conductivity, entropy, and convergence gates.

conservative_full_f_dougherty_cross_moments separately implements only the cross-species primitive-moment targets in equations (2.11)–(2.12) of Francisquez et al. (2022). The tests check those formulas directly, pairwise momentum and energy conservation, positive target temperatures, equal-species limits, and AD/FD agreement. The multispecies gate covers several spatial samples and \(d_v=1,2,3\), and checks that a uniform velocity offset shifts only the target flow. It is useful when developing a future nonlinear full-distribution collision operator, but it is not itself that operator and is not routed through the current delta-f gyrokinetic evolution.

The full finite-Larmor-radius coefficient formulas contain deeply nested, cancellation-sensitive sums. Following the implementation guidance in the same reference, the planned advanced operator will generate those coefficients offline with multiple-precision arithmetic, record normalization/provenance and checksums with the resulting tables, and load only compact arrays into the JAX runtime. Direct evaluation of the published sums in runtime float64 is not an accepted implementation path. The generated tables must first pass symmetry, conservation, adjointness, and entropy gates before any transport benchmark can promote the operator.

The exact Bessel–Laguerre kernel entering those sums is already implemented as core.velocity.bessel_laguerre_kernels. Its recurrence is differentiable, avoids factorial overflow, and is independently checked by velocity-space quadrature and the finite-\(b\) truncation behavior reported by Frei et al. (2021). The associated-Laguerre prefactors for \(J_m\), \(m=0,1,2\), additionally reconstruct the independent Bessel functions over velocity space. The Appendix-A Coulomb speed integrals \(e_k\) and \(E_k\) are generated at 80-digit precision and checked independently by improper quadrature for several orders and unequal thermal-speed ratios. Their test- and field-particle speed moments from equations (A5) and (A13) additionally match direct Maxwellian quadrature for unequal masses and temperatures, including equal-species density and momentum invariant endpoints. Generalized-Laguerre monomial coefficients from equation (3.10) reconstruct independent polynomials through order eight. The cancellation-sensitive basis transforms and test-/field- particle matrix contractions remain offline-generator work; these exact primitives must not be interpreted as a complete finite-\(b\) Sugama or Coulomb operator. The required transform formulas have been located in Jorge, Ricci & Loureiro (2017), Appendix A, equation (A4), and Jorge, Frei & Ricci (2019), Appendix B, equations (B5)–(B6); their printed normalization is checked against the defining basis identity rather than treated as an independent source of truth.

That isotropic transform is now implemented with 80-digit nested sums and only casts at the generated-table boundary. Independent velocity quadrature and forward/inverse shell products pass through total degree 12, including a shell with condition number above \(10^8\). The finite-\(m\) extension remains implemented as lower-triangular parity blocks through reduced degree six for \(m=0,1,2,3\). A convention factor \(2(-1)^m\) is required for direct velocity projection and pointwise basis reconstruction. Because literal equation (B6) does not invert the finite-\(m\) blocks, the generator inverts the full forward matrix with 80-digit arithmetic as an independent oracle. Frei et al. (2021), equation (3.33), includes the required weighted Laguerre contraction and matches that inverse for all tested \(m=0,1,2,3\) blocks; it is the scalar inverse used for subsequent sums. Complete collision contractions and conductivity, ITG, zonal-response, and velocity-resolution gates remain required before runtime promotion.

The associated-Laguerre product coefficients in equations (3.36)–(3.37) and (3.44)–(3.45) are evaluated by the same multiprecision generator and reconstruct their defining products pointwise. Equation (3.35)’s finite- \(b\) gyro-moment-to-spherical-moment map then combines those products, the finite-\(m\) basis transform, and the exact \(K_n(b)\) kernel. Independent Bessel-weighted velocity projection verifies six coefficients through \(m=3\); agreement between 20- and 32-term sums provides a local truncation gate. These intermediate coefficients are not direct runtime APIs.

At the drift-kinetic endpoint the generator removes Bessel orders \(n>0\) and azimuthal harmonics \(m>0\) before forming contractions; their coefficients vanish exactly at \(b=0\). A bitwise regression against the unspecialized pre-change path and a tracked Bessel-order-independence gate protect the algebra. For the converged eight-mode \((p_{\max},j_{\max})=(6,3)\) probe this reduces generation from 11.1 to 4.24 seconds without changing either test- or field-particle matrices. The collision-table subcommands also avoid importing the runtime, JAX, or any device backend; benchmark and solver dependencies are loaded only by the subcommands that use them. This keeps offline arbitrary-precision generation CPU-only even on GPU hosts. The development extra installs gmpy2 so mpmath can use its GMP backend for these exact offline tables; it is not a runtime dependency and does not alter stored coefficients. A matched \((5,2)\) office probe retained the checksum and reduced generation by 18% relative to the pure-Python multiprecision backend. The general finite-\(b\) contraction remains too expensive for the full conductivity resolution. It now evaluates equation (A4)’s basis transform as an exact polynomial projection followed by analytic Gaussian and Laguerre moments, replacing a six-deep combinatorial sum. Independent velocity quadrature and inverse-shell gates are unchanged. After factoring \(s_\perp^m\), the finite-\(m\) associated basis is also transformed by direct polynomial projection; the separately factorized equation-(B5) overlap is retained as an independent oracle. A representative \((5,2)\) two-wavelength build falls from 26.41 to 12.44 seconds with the same checksum; \((7,3)\) falls from 411.22 to 247.04 seconds on the office CPU. Remaining contractions now evaluate Laguerre products through cached analytic moments, hoist wavelength/angular factors, group all radial indices sharing one speed contraction, and collapse equation (3.33)’s auxiliary Laguerre sum by orthogonality into one weighted polynomial projection. With shared pair caches, the exact \((9,4)\), Bessel-argument \(B=0.5\) build falls from 464.05 to 183.59 seconds while preserving all six arrays and checksum -152.93360627939981. Matrices take 156.68 seconds and the four polarization vectors 26.91 seconds. These transformations reorder exact multiprecision algebra; they do not truncate the collision model.

Correct full-block indexing gives 3.74% and 1.28% test/field matrix changes between \((7,3)\) and \((9,4)\), with nonzero polarization changes below \(1.2\times10^{-8}\). The GMP-backed \((12,5)\) point then completes in 556.21 seconds; its common \((9,4)\) test/field blocks change by 2.87% and 1.07%, and polarization changes remain below \(10^{-11}\). collision_finite_wavelength_generation_hierarchy.json records the prospective 5% intermediate-resolution coefficient pass. The transport gate below applies the stricter growth-rate protocol rather than promoting coefficient convergence by itself. This distinction matters: Frei, Hoffmann & Ricci normalize the Bessel argument as \(B=k_\perp\sqrt{2\tau}\). At \(\tau=1\), the existing \(B=0.5\) hierarchy corresponds to paper \(k_\perp=0.5/\sqrt{2}\); their \(k_\perp=0.5\) convergence point requires \(B=1/\sqrt{2}\). The runtime interpolation uses the same convention explicitly through \(B=\sqrt{2b_\mathrm{cache}}\). At that required wavelength, exact \((7,3)\), \((9,4)\), and \((12,5)\) builds complete in 43.48, 145.71, and 557.87 seconds on the office CPU. The common test/field matrix changes are 5.87%/2.35% from \((7,3)\) to \((9,4)\), then 4.38%/1.92% from \((9,4)\) to \((12,5)\); the latter passes the prospective 5% intermediate gate. Polarization-vector changes are below \(2.2\times10^{-9}\) at the latter step. These are coefficient-hierarchy results, not a collisional-ITG acceptance claim. The paper-facing growth scan below now supplies the required demonstrably equivalent converged resolution.

The exact generator subsequently contracts the Bessel expansion with each Laguerre product before applying the inverse Hermite–Laguerre transform. It also caches the shared Poisson/Bessel kernels and uses the associated basis’s exact reduced-degree support. On the local CPU, the same archived \((7,3)\), \((9,4)\), and \((12,5)\) tables rebuild in 11.35, 37.27, and 139.42 seconds. Every one of the six generated arrays is bitwise identical to its archived GMP result. These timings establish generator efficiency and identity only; a bounded \((15,6)\) probe still required 350.84 seconds for its matrix before polarization, so the paper endpoint requires the planned shared-precompute Hermite decomposition rather than an unbounded serial run.

That decomposition now forks only complete output-Hermite matrix rows after serial polarization has populated the shared transform and speed caches. At \((12,5)\), four local CPU workers reduce the exact total from 139.42 to 110.13 seconds; all six arrays remain bitwise identical. The matrix tail takes 46.26 seconds after 63.88 seconds of shared polarization precomputation. This is a scoped offline-generator improvement, not linear strong scaling: the measured serial fraction is retained explicitly and polarization is not forked. Eight matrix workers subsequently completed the exact \((15,6)\) table in 261.39 seconds, including 142.93 seconds of serial polarization work; its checksum is -423.2127750524206.

The drift-kinetic generator has a separate polynomial-support decomposition. It evaluates independent multiprecision speed moments with fork workers and optionally performs only the final dense contraction in float64. The latter changes the P12/J5 matrices by \(1.4\times10^{-16}\) relative L2. On the 36-core validation host, 28 workers generated the inclusive P24/J10 Coulomb endpoint (275 moments) in 181.24 seconds. Its checksum is -1365.8775659269347; an independently generated P20/J5 common block agrees to \(7.3\times10^{-17}\) relative L2, while density, momentum, energy, symmetry, and non-positive-spectrum checks pass to roundoff.

The runtime-level scan below applies those exact tables through the complete solved-field RHS at the paper’s homogeneous-slab parameters. It confirms collisional stabilization and closes the equivalent growth-convergence gate. From \((12,5)\) to \((15,6)\), the maximum growth-rate change is 1.99% over all collision frequencies and 0.037% over the unstable \(\nu\geq0.03\) interval, both below the fixed 5% gate. An independent collisionless hierarchy checks the remaining high-order endpoint: the \((15,6)\) to \((18,6)\) change is 0.59%. Thus the expensive finite- collision \((18,6)\) table is not required to establish equivalent growth convergence. This closes the scoped homogeneous-slab ITG gate; it does not promote the finite-wavelength operator to input files because the independent collisional zonal-response gate remains open. Machine-readable values and every gate are retained in collision_finite_wavelength_itg_convergence.json.

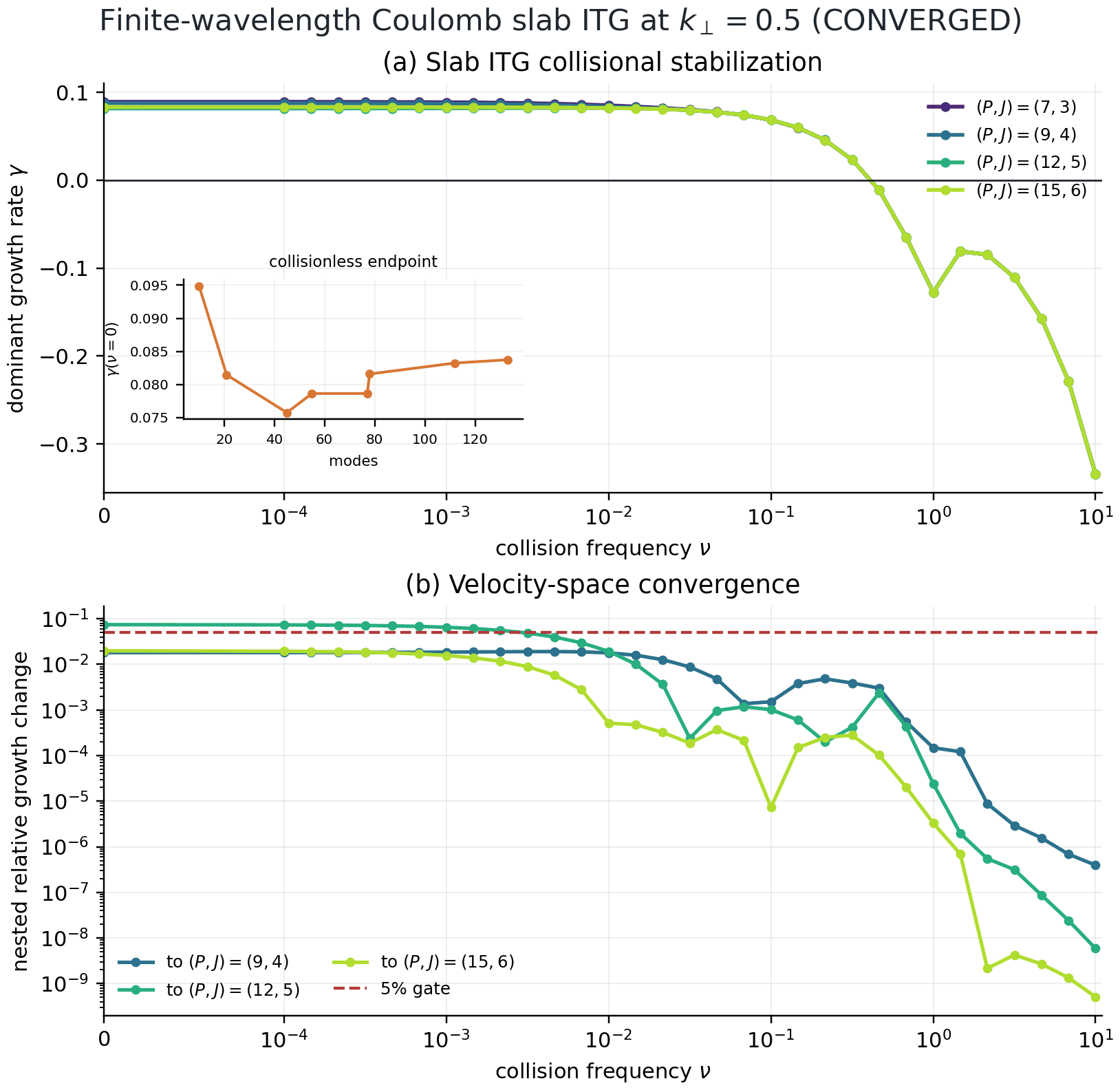

Finite-wavelength Coulomb slab ITG growth and velocity-space convergence

Exact paper-wavelength slab-ITG hierarchy. The \((15,6)\) finite- collision scan and independent \((18,6)\) collisionless endpoint pass the fixed equivalent-convergence gates.

The panel is regenerated with the existing artifact owner after exact table archives are built with build_finite_wavelength_coulomb_pair_tables:

python tools/artifacts/build_linear_validation_artifacts.py collision-itg \
  --table finite_b_P7_J3.npz --table finite_b_P9_J4.npz \
  --table finite_b_P12_J5.npz --table finite_b_P15_J6.npz

For a fixed-wavelength zonal-response audit, generate a compact endpoint archive instead of a full two-dimensional interpolation table:

python tools/artifacts/build_linear_validation_artifacts.py collision-endpoint \
  --out finite_b_zonal_P24_J10_kx020.npz \
  --bessel-argument 0.282842712474619 --maximum-hermite-order 24 \
  --maximum-laguerre-order 10 --maximum-angular-bessel-order 4 \
  --maximum-bessel-laguerre-order 6 --digits 32 --worker-count 16

This command records every truncation, timing, and checksum in the archive. It is a coefficient diagnostic, not a complete zonal table: on the paper Miller surface the local Bessel argument varies along the field line. For the one-species zonal problem, generate the required equal-target/source diagonal table by repeating --bessel-argument over a grid that covers the measured field-line interval:

python tools/artifacts/build_linear_validation_artifacts.py collision-diagonal-table \
  --out finite_b_zonal_P24_J10_diagonal.npz \
  --bessel-argument 0.126 --bessel-argument 0.140 \
  --bessel-argument 0.155 --bessel-argument 0.254 \
  --bessel-argument 0.282 --bessel-argument 0.311 \
  --maximum-hermite-order 24 --maximum-laguerre-order 10 \
  --maximum-angular-bessel-order 4 \
  --maximum-bessel-laguerre-order 6 --digits 32 --worker-count 16

The generator prints each expensive phase, shares wavelength-independent Coulomb speed coefficients across the complete grid, and writes coefficients in the runtime Laguerre convention. A nested B-grid trace comparison remains mandatory because the illustrative grid above is coverage, not an interpolation convergence claim.

Run one table through the common zonal integrator with:

python tools/artifacts/build_zonal_flow_artifacts.py \
  simulate-collisional-zonal-finite-b \
  --config benchmarks/collisional_zonal_response.toml \
  --table-archive finite_b_zonal_P24_J10_diagonal.npz \
  --model coulomb \
  --kx 0.1 --out-csv finite_b_zonal_kx010.csv \
  --dt 0.005 --maximum-normalized-time 30 --sample-stride 10 --nz 32

The runner rejects the wrong archive scope or Laguerre convention, malformed resolution metadata, non-finite coefficients, and tables that do not cover the actual field-line Bessel-argument range. The same command with --kx 0.2 produces the second Figure-13 wavelength once the table and moment hierarchy have passed their nested convergence gates. Select --model original_sugama or --model improved_sugama with the corresponding converted archive; a model/archive mismatch fails before integration.

For the \(k_x=0.2\) run, add --out-sections-csv sections.csv. The integrator advances first to \(t\nu=5\), retains that state, and then continues to \(t\nu=30\), so producing Figure 14 does not repeat the first part of the trace. At the outboard midplane it reconstructs the modulus of the gyrocenter perturbation from Frei, Ernst & Ricci (2022), equation (52),

\[g_i/F_{Mi} = \sum_{p,j} N_i^{pj} \frac{H_p(s_{\parallel i})}{\sqrt{2^p p!}}L_j(x_i),\]

with the runtime’s equivalent signed-Laguerre convention. The output contains the cuts in \(s_{\parallel i}\) at \(x_i=0\) and in \(x_i\) at \(s_{\parallel i}=0\), each normalized to its maximum. A density-only manufactured state independently recovers the two Maxwellian cuts. The publication panel overlays those analytical Maxwellians as dashed references, following Figure 14 of the source paper.

The tracked lower-hierarchy interpolation pilot is docs/_static/collision_finite_wavelength_zonal_b_grid_pilot.json. At \((P,J)=(7,3)\) through \(t\nu=2\), refining from four to six B-grid points changes the normalized traces by relative \(L_2\) errors \(1.40\times10^{-4}\) at \(k_x=0.1\) and \(3.68\times10^{-4}\) at \(k_x=0.2\). This passes the declared \(10^{-3}\) interpolation gate but deliberately does not promote moment resolution or the paper’s \(t\nu=30\) trace.

Velocity-space convergence is tracked independently in docs/_static/collision_finite_wavelength_zonal_moment_hierarchy.json. Adjacent physical traces are normalized by their common initial potential and must satisfy both a 5% relative \(L_2\) bound and a 5% maximum-deviation bound at \(k_x=0.1\) and \(0.2\). The P7/J3 to P12/J5 changes are 19.2% and 12.0% in relative \(L_2\); P12/J5 to P15/J6 still changes by 8.90% and 9.93%. The latter maximum deviations are 6.89% and 5.82%. The four-point P18/J7 extension costs 189.06 seconds and changes the P15/J6 traces by 3.86% at \(k_x=0.1\) and 7.16% at \(k_x=0.2\); the first wavelength passes both criteria while the second still fails relative \(L_2\). A four-wavelength P21/J8 table then completes in 584.73 seconds with the decomposition described below. Its change from P18/J7 is 2.37% at \(k_x=0.1\) and 5.60% at \(k_x=0.2\); both maximum-deviation tests pass, but the second relative-\(L_2\) test narrowly remains open. Consequently the tracked hierarchy shows monotone convergence but is not a substitute for the paper-required P24/J10 traces. Reproduce the report with:

python tools/artifacts/build_zonal_flow_artifacts.py \
  collisional-zonal-moment-gate \
  --level 7 3 p7_kx010.csv p7_kx020.csv \
  --level 12 5 p12_kx010.csv p12_kx020.csv \
  --level 15 6 p15_kx010.csv p15_kx020.csv \
  --level 18 7 p18_kx010.csv p18_kx020.csv \
  --level 21 8 p21_kx010.csv p21_kx020.csv \
  --out-json collision_finite_wavelength_zonal_moment_hierarchy.json

An adjacent hierarchy can be derived from one authoritative high-order table without recomputing or interpolating any coefficient. The projection keeps the principal Hermite–Laguerre subspace in the runtime’s Hermite-major ordering, projects every collision matrix and polarization vector with the same indices, and records the parent resolution and checksum:

python tools/artifacts/build_linear_validation_artifacts.py \
  collision-project-table \
  --source P24_J10_coulomb.npz \
  --out P21_J8_coulomb.npz \
  --maximum-hermite-order 21 \
  --maximum-laguerre-order 8

This is a Galerkin truncation study of the same generated operator. It cannot expand an archive, silently change its wavelength grid, or support a physics claim beyond the source archive’s declared collision model. The resulting paper-endpoint comparison is retained in collision_finite_wavelength_zonal_P21_P24_gate.json. Both traces reach \(t\nu=30\): the P21/J8-to-P24/J10 relative \(L_2\) changes are 4.93% at \(k_x=0.1\) and 1.72% at \(k_x=0.2\), with maximum absolute changes 0.0188 and 0.0070. All four values pass the prospectively fixed 5% adjacent-hierarchy gate. This closes the moment-resolution question while leaving the independent three-operator literature ordering as the physical acceptance test.

The bounded archive generator uses a separate, prospectively gated optimization. Every transform, collision moment, and projection coefficient is still evaluated at the requested multiprecision; only the final dense projection-vector contraction is performed in the float64 precision of the stored table. The tracked P12/J5 six-wavelength gate in docs/_static/collision_finite_wavelength_table_contraction_gate.json gives relative errors below \(6.4\times10^{-16}\) across all matrices and polarization vectors, and reduces eight-worker generation from 86.79 to 40.67 seconds (2.13x). The matched P12/J5 \(k_x=0.1\) physical trace is bitwise identical in every saved real and imaginary sample. This optimization affects offline table generation, not the collision equations or runtime operator. The same archive path factors the Bessel/Laguerre projection that is independent of spherical and Hermite indices. A matched P18/J7, \(B=0.16\) endpoint retains checksum -604.0543094294402 while reducing matrix assembly from 141.18 to 138.91 seconds and total generation from 235.12 to 229.70 seconds. This measured but modest reduction is retained; it does not by itself make the P24/J10 campaign tractable.

For high-order tables, independent Bessel-argument points can also be assigned to separate processes. The default --wavelength-worker-count 1 retains the lower-memory shared algebra cache. Setting, for example, --worker-count 28 --wavelength-worker-count 4 runs four points concurrently with seven inner angular/row workers per point. Every point still shares the wavelength-independent multiprecision speed coefficients, while its mutable algebra cache remains process-local. A serial-versus-decomposed archive test gates all six stored arrays to roundoff; this is an offline table-generation strategy and is not evidence for simulation-runtime strong scaling.

If a complete high-order table cannot finish inside one bounded process, the same equations can be generated as resumable angular shards. The production command constructs the wavelength-independent speed coefficients once, forks all M=0,...,4 writers from that copy-on-write cache, and combines the complete set in deterministic angular order:

python tools/artifacts/build_linear_validation_artifacts.py \
  collision-shared-angular-table \
  --out finite_b_zonal_P24_J10_diagonal.npz \
  --bessel-argument 0.12 --bessel-argument 0.16 \
  --bessel-argument 0.24 --bessel-argument 0.32 \
  --maximum-hermite-order 24 --maximum-laguerre-order 10 \
  --maximum-angular-bessel-order 4 \
  --maximum-bessel-laguerre-order 6 --digits 32 \
  --worker-count 30 --wavelength-worker-count 2

The command retains sibling *_m0.npz through *_m4.npz files as restartable evidence. Repeating the shared-table command validates and reuses matching finite shards, skips precomputation when all are complete, and redistributes the total worker budget across only the missing harmonics. Existing complete shards can also be recombined without regeneration using:

python tools/artifacts/build_linear_validation_artifacts.py \
  collision-combine-angular-shards \
  --shard finite_b_zonal_P24_J10_diagonal_m0.npz \
  --shard finite_b_zonal_P24_J10_diagonal_m1.npz \
  --shard finite_b_zonal_P24_J10_diagonal_m2.npz \
  --shard finite_b_zonal_P24_J10_diagonal_m3.npz \
  --shard finite_b_zonal_P24_J10_diagonal_m4.npz \
  --out finite_b_zonal_P24_J10_diagonal.npz

At P24/J10, even one angular harmonic evaluated at two wavelengths exceeded the 600-second campaign bound. The bounded production checkpoint is therefore one (B,m) equation block. Generate each block with a single --bessel-argument, --angular-order m, and --wavelength-worker-count 1; combine the five harmonics at each wavelength with collision-combine-angular-shards. Finally concatenate the complete single-wavelength tables without recomputing coefficients:

python tools/artifacts/build_linear_validation_artifacts.py \
  collision-combine-wavelength-tables \
  --table finite_b_zonal_P24_J10_B012.npz \
  --table finite_b_zonal_P24_J10_B016.npz \
  --table finite_b_zonal_P24_J10_B024.npz \
  --table finite_b_zonal_P24_J10_B032.npz \
  --out finite_b_zonal_P24_J10_diagonal.npz

Both combiners verify complete angular ownership, matching equation and resolution metadata, finite arrays, and a strictly ordered nonoverlapping wavelength grid. This 20-block layout is exact additive checkpointing of the published equations; it neither changes the collision model nor weakens the P24/J10 acceptance criteria.

The combiner rejects missing/duplicate harmonics, metadata mismatches, and non-finite arrays. A unit-level equation gate verifies that the ordered sum of single-harmonic matrices and polarization vectors reproduces the monolithic archive to roundoff. This is checkpointing of an additive analytical sum, not a reduced collision model. The production-topology P12/J5 check is retained in collision_finite_wavelength_angular_shard_gate.json: both matrix relative \(L_2\) errors are below \(5.8\times10^{-16}\), and all four polarization vectors are bitwise identical.

The radial order six follows the convergence statement in Frei, Ernst & Ricci (2022); the separate angular cutoff must pass a nested endpoint or observable-level convergence check before use. The current P12/J5 check at \(B=\sqrt{2}\,0.2\) changes the most sensitive matrix norm by \(1.24\times10^{-7}\) between angular orders four and six. The command generates exact Coulomb coefficients only. Original-Sugama field terms are then projected independently from equations (3.65), (3.68)–(3.69), and (3.79)–(3.80) of the 2021 gyro-moment collision derivation. In the runtime’s orthonormal signed- Laguerre basis their matrix is assembled as

\[C^{F,\mathrm{OS}}_{ij}(B) = -\frac{A_i^\parallel(B)A_j^\parallel(B)}{\gamma} -\frac{A_i^\perp(B)A_j^\perp(B)}{\gamma} -\frac{A_i^E(B)A_j^E(B)}{\eta},\]

where each \(A\) is a direct velocity projection of the corresponding parallel-flow, perpendicular-flow, or energy test response in equation (3.65). Product Gauss–Hermite/Laguerre rules with 80 and 96 nodes must agree before the higher-order matrix is accepted. At \(B=0\) this independent route recovers the verified drift-kinetic C6 field matrix to roundoff. At finite \(B\) the same channels are not gyrocenter collision invariants: their nonzero action is the classical gyro-diffusion expected from the gyroaveraged operator. The improved model adds the separate Braginskii-moment correction of Frei, Ernst & Ricci (2022), equations (61)–(69), under the same quadrature-convergence contract.

An independent homogeneous-slab matrix reconstruction now evaluates equations (2.14)–(2.18) directly at \(k_\perp=0.5\), \(k_\parallel=0.1\), \(\eta=3\), and \(\tau=1\). It exposed and fixed a separate truncation-boundary error: the distribution moment \(N_{p,J+1}\) is zero, but the analytically known Bessel coefficient \(K_{J+1}\) in equation (2.16a) is not. Retaining that coefficient makes every collisionless runtime matrix entry agree with the published hierarchy to roundoff in x64 and within \(2\times10^{-6}\) in default precision. The drift-kinetic generator still evaluates collapsed equations (3.53)–(3.56) directly: its \((20,5)\) response is the validated transport path, whereas finite-\(b\) still requires the independent zonal-response gate. These are local algorithm timings, not portable runtime-performance claims.

That contraction is now implemented offline. Equations (3.48)–(3.49) produce test and field matrices in Hermite-major order, while equations (3.41) and (3.50) produce separately coupled polarization vectors for target and source species. The \(b=0\) endpoint recovers the independent drift-kinetic Coulomb coefficients and passes symmetry, negative-semidefinite, density, momentum, and energy gates. Direct \(J_0J_m\) quadrature verifies the polarization coefficient. Runtime promotion still requires the independent collisional zonal-response benchmark.

The tracked collision_operator_verification.json and matching panel in Operators And Terms turn this into a numerical gate rather than a visual claim. The present level covers arbitrary-precision coefficient generation, direct manufactured velocity-space projection, Bessel-sum convergence, the three collision-invariant null modes, and non-positive entropy production. Its coupled spherical/radial scan rejects the former low-order cutoff at 29% relative error and admits \((p_{\max},j_{\max})=(8,4)\) at \(8.68\times10^{-7}\) against a converged \((9,4)\) reference. The drift-kinetic driven response now has its separate paper-scale Hermite/Laguerre scan. Finite-\(b\) runtime-table convergence, Spitzer–Härm and Braginskii transport, collision-frequency convergence, and finite-\(b\) slab ITG have separate closed gates; collisionless versus collisional zonal response is the remaining promotion gate. Finite-\(b\) gyrocenter density is deliberately not treated as a local invariant: the tracked test, field, and combined \(O(b^2)\) density-row gates resolve the classical gyro-diffusion discussed after equation (3.5) of Frei et al. (2021). Particle-space conservation would require evaluating the pre-gyroaverage operator at fixed particle position; it cannot be reconstructed from the gyrophase-independent runtime matrix.

The finite-wavelength ITG promotion target follows the convergence section of the 2022 finite-wavelength ITG study by Frei, Hoffmann & Ricci. Its first gate is the \(k_\perp=0.5\), \(k_\parallel=0.1\), \(\eta=3\), \(R_B=0.1\) collisionality scan through \((P,J)=(18,6)\). The independent follow-ups hold \(P=18\) for the perpendicular-wavenumber/J scan, use \(J=10\) for the weak-collision P-scan and \(P=32\) for the J-scan, and vary magnetic-gradient strength separately. Analytical peak estimates are context, not numerical acceptance data.

The strongly collisional stage now has a differentiable constrained-response solver rather than a matrix-distance surrogate. It removes stated invariant modes, solves the remaining dense moment system on device, and differentiates the resulting current through the same JAX solve. Analytic damping, long-time matrix-exponential, JIT, and centered finite-difference checks close this algorithmic layer. The direct Coulomb hierarchy is resolved through \((P,J)=(20,5)\): its largest current change from \((15,5)\) is \(1.66\times10^{-4}\) over \(Z=1,2,5,10,100\), below the fixed 0.5% gate. The Spitzer–Härm normalization is closed for this unmagnetized, equal-temperature drift-kinetic problem. With \(\widehat E=eE/(m_ev_{Te}\nu_{ee})\), the computed ratio \((u_e/v_{Te})/\widehat E\) is \(\sigma_\parallel/[n_e e^2/(m_e\nu_{ee})]\). Substituting the collision frequency and Spitzer conductivity gives the high-charge limit \(64/[3\,2^{3/2}\pi Z]\). The \(Z=100\) Coulomb result is 7.453% below this limit, inside the prospectively fixed 8% gate. The source is also converted to the paper’s \(eE/(\sqrt{m_eT_e}\nu_{ee})=10^{-3}\) convention; Coulomb, original Sugama, and improved Sugama all reach their matrix steady state by \(t\nu_{ee}=50\) and remain linear over fields from \(10^{-4}\) to \(10^{-2}\).

The original-Sugama hierarchy is generated at equal temperature from the Coulomb test matrix plus the unique self-adjoint low-rank momentum/energy restoration. The improved hierarchy evaluates the Coulomb Braginskii \(N\) matrix, removes its momentum-restoring Schur complement, and applies the exact drift-kinetic basis transforms through \(K=5\) in multiprecision. The two constructions recover the independently tabulated C6 and C103 coefficients and reproduce the published low- and high-charge current ordering without fitting response data. At the converged endpoint, the largest improved-to-Coulomb current difference is 0.307%, the \(K=4\rightarrow5\) change is 0.439%, and the final velocity-hierarchy change is 0.0237%.

Rosenbluth–Hinton residual flow is collisionless and is therefore not used as a substitute for the Hinton–Rosenbluth collisional damping test. The collisional gate follows Figures 12–14 of Frei, Ernst & Ricci (2022) rather than an unrelated collisionless zonal benchmark. It uses ion–ion collisions at \(q=1.4\), \(\epsilon=0.1\), and \(\nu_i^*=3.13\), with the paper’s converged \((P,J)=(24,10)\) hierarchy. Required outputs are the drift-kinetic \(k_x=0.05\) response, finite-Larmor \(k_x=0.1\) and 0.2 responses, Coulomb/original-Sugama/improved-Sugama ordering, the Xiao long-time estimate

\[R_z(\infty) = \frac{\epsilon^2/q^2}{1 + \epsilon^2/q^2},\]

and parallel/perpendicular sections of the perturbed distribution at \(t\nu=5\). The stated \(q\) and \(\epsilon\) give \(R_z(\infty)=0.00508\); this is deliberately distinct from the collisionless Rosenbluth–Hinton estimate. Lower moment counts or collisionless residual agreement are development evidence, not substitutes for that converged gate.

The paper normalization is converted explicitly rather than fitted,

\[\nu = \frac{\nu_i^*\epsilon^{3/2}}{\sqrt{2}q} = 0.0499921,\]

so a trace through \(t\nu=30\) evolves to solver time approximately 600. The canonical geometry and time contract is benchmarks/collisional_zonal_response.toml. Its Miller surface sets rhoc/R0=0.1 explicitly; changing only the analytic epsilon metadata would leave the generated surface at the wrong aspect ratio. The dense drift-kinetic matrix acts on evolved gyrocenter \(g\) moments, following Frei, Ernst & Ricci (2022), Eq. (73), rather than on the post-field Hamiltonian. One drift-kinetic model trace is reproduced from an offline P24/J10 matrix archive with:

python tools/artifacts/build_zonal_flow_artifacts.py \
  simulate-collisional-zonal-dk \
  --config benchmarks/collisional_zonal_response.toml \
  --model-archive collisional_zonal_dk_p24j10.npz \
  --model coulomb --out-csv coulomb_zonal_trace.csv

The runner rejects a requested radial mode if it is outside the grid’s active linear spectrum, records imaginary-response contamination and the tail median, and keeps the generated dense archive outside the repository. Coulomb, original-Sugama, and improved-Sugama runs use the same initial state, grid, and time discretization.

The drift-kinetic Figure-12 subset has late-window medians 0.00565 (original Sugama), 0.00572 (Coulomb), and 0.00585 (improved Sugama, \(K=5\)) against the Xiao estimate 0.00508. It is incorporated into the complete panel below rather than retained as a duplicate figure and trace bundle.

The acceptance contract is implemented by the existing zonal-artifact owner:

python tools/artifacts/build_zonal_flow_artifacts.py collisional-zonal \
  --traces collisional_zonal_traces.csv \
  --sections collisional_zonal_velocity_sections.csv \
  --out-json collisional_zonal_gate.json \
  --out-png collisional_zonal_gate.png

Trace rows contain model,kx,t_nu,response,p_max,j_max. Velocity-section rows add coordinate,abscissa,normalized_distribution and are evaluated at \(k_x=0.2\), \(t\nu=5\). The gate requires all three collision models, all three radial wavenumbers, normalized-time coverage through 30, the \((24,10)\) hierarchy, the Xiao residual at \(k_x=0.05\), OS/IS/Coulomb late-time ordering at finite wavelength, improved-Sugama proximity to Coulomb over \(t\nu\leq10\), and both velocity sections. Missing data fail closed; the tool does not infer a pass from a lower-resolution or collisionless trace, and the command exits nonzero while any gate remains open.

Paper-resolution Coulomb and Sugama collisional zonal responses

Complete Figures 12–14 protocol at \((P,J)=(24,10)\). The finite-wavelength late responses obey original Sugama < improved Sugama < Coulomb at \(k_x\rho_i=0.1\) and 0.2; the improved model has the smaller early-window error relative to Coulomb at both wavenumbers. Both \(t\nu=5\) velocity sections and the drift-kinetic Xiao-residual gate pass.

The full-resolution campaign contains 73,824 trace rows. Its exact verdict is retained in the JSON report, and the compact velocity sections are not decimated. Dense coefficient archives, raw traces, and logs remain external campaign artifacts rather than adding more than six megabytes of duplicative data to the repository.

Nonlinear full-distribution Landau collisions are a separate future model, not an extension flag on this linearized matrix. A dense precomputed collision tensor would have prohibitive basis scaling. The planned route follows the one-centre Coulomb/Talmi formulation of Jorge et al. (2026): approximate the Boys kernel with a controlled sum of exponentials, contract the resulting separable factors matrix-free, rotate between oscillator and Hermite–Laguerre bases, and project roundoff-level particle, momentum, and energy defects. Generic separable Kronecker contractions and differentiable constrained solves belong in SOLVAX; gyrokinetic normalization, species coupling, and Landau physics remain SPECTRAX-GK responsibilities. Any implementation must reproduce manufactured dense low-order tensors, quadrature refinement, Maxwellian stationarity, conservation, entropy production, isotropic relaxation, two-species equilibration, JVP/VJP checks, and measured memory scaling before runtime exposure.

For unlike species, runtime interpolation is two-dimensional: target \(k_\perp\rho_a\) controls the outer/test factors and source \(k_\perp\rho_b\) controls the field-particle moment map. The pure JAX kernel contracts the resulting test block with \(G_a\), the field block with \(G_b\), and the four polarization vectors with the solved \(\phi\). This ordering is JIT- and JVP-gated and prevents the common error of applying the complete finite-wavelength matrix to the nonadiabatic Hamiltonian response, which would count the pullback field terms twice.

Python workflows may supply any JAX-compatible object implementing apply(context) to linear_rhs, linear_rhs_cached, integrate_linear, or nonlinear_rhs_cached through the collision_operator keyword. The returned array is the unit-weight collisional contribution and must match the distribution-state shape. The configured collision term weight multiplies this contribution; built-in collisions are disabled, while hypercollisions remain independent.

Custom operators currently support serial explicit and IMEX linear integration, cached nonlinear RHS evaluation, and serial explicit nonlinear state integration. Implicit solves, diagnostic scans, and decomposed state integration reject this option until their operator, observable, and preconditioner contracts can include the same model exactly. This boundary is appropriate for differentiable collision-model research because state, cache, and parameter arrays remain inside the JAX trace while artifact writing and configuration parsing remain outside it.

The context contains both the evolved distribution \(G\) and the post-field Hamiltonian response \(H\), plus the solved fields, cache, and parameters. This is required for gyroaveraged field-particle terms and keeps the callback differentiable without repeating the field solve.

An operator may additionally satisfy SplitCollisionOperator by defining split_step(context, dt). This advertises a valid finite-time update; the general runtime does not route it until the operator-specific invariant and entropy gates pass. Built-in collision_split applies only to diagonal hypercollisions. Conserving collisions stay in the assembled RHS so their low-order field-particle terms cannot be dropped by diagonal operator splitting.

Gyroaverage and polarization

The Laguerre gyroaverage coefficients follow the Laguerre–Hermite convention used in Hermite–Laguerre gyrokinetic moment closures,

\[J_\ell(b) = \frac{1}{\ell!}\left(-\frac{b}{2}\right)^\ell e^{-b/2},\]

with \(b = k_\perp^2 \rho^2\). This definition is consistent with the Laguerre projection of the gyroaveraged potential in the Hermite–Laguerre closure used by the linear operator.

Parallel streaming

The streaming operator is applied in real space using a spectral periodic derivative in \(z\) (FFT-based, via jax.numpy.fft) and the Hermite ladder coupling

\[\mathcal{L}_m[H] = \sqrt{m+1} H_{m+1} + \sqrt{m} H_{m-1}.\]

In the current linked-FFT formulation we apply the parallel derivative to the non-adiabatic moments plus explicit field terms before the Hermite ladder is applied. In other words, the streamed quantity is

\[\tilde{G}_{\ell m} = G_{\ell m} + \frac{Z_s}{T_s} J_\ell \phi\,\delta_{m0} - \frac{Z_s v_{th}}{T_s} J_\ell A_\parallel\,\delta_{m1} + J_\ell^B B_\parallel\,\delta_{m0},\]

so that the current streaming term uses \(\partial_z \tilde{G}\) instead of the full \(H_{\ell m}\) derivative. This matches the ordering and ghost exchange used by GX’s grad_parallel_linked operator.

Curvature, grad-B, and mirror couplings

The magnetic drift terms follow a Laguerre-Hermite stencil: curvature (cv) couples Hermite indices \(m\pm 2\), grad-\(B\) (gb) couples Laguerre indices \(\ell\pm 1\), and the mirror term couples \(m\pm 1\) and \(\ell\pm 1\) with a \(b^\prime(\theta)\) prefactor. These couplings are applied directly to the gyrokinetic variable \(H_{\ell m}\) built from the non-adiabatic moments and the gyroaveraged potential.

Putting the pieces together, the linear operator is assembled from:

  • Streaming: \(v_{th}\,\partial_z\) with Hermite ladder couplings.

  • Mirror: \(b'(\theta)\) coupling across \((\ell\pm1, m\pm1)\).

  • Curvature drift: cv_d coupling across \(m\pm2\).

  • Grad-B drift: gb_d coupling across \(\ell\pm1\).

  • Diamagnetic drive: \(\omega_*\) energy-weighted source in m=0,2.

Operator toggles start from spectraxgk.linear.LinearTerms and are converted into one canonical spectraxgk.terms.TermConfig through spectraxgk.linear.linear_terms_to_term_config(). The same modular RHS path is then used by fixed-step linear integrators, diffrax integrators, Krylov operator applications, and nonlinear IMEX linear solves.

The RHS is assembled in spectraxgk.terms via spectraxgk.terms.assemble_rhs_cached(), which sums per-term kernels (streaming, mirror, drifts, diamagnetic drive, collisions, hyper-collisions, and end damping). This keeps the physics core branch-free and easier to extend, while preserving JAX differentiability and performance.

For the explicit equations and per-parameter operator definitions, see Operators And Terms.

Field solve and electromagnetic coupling

Electrostatic runs solve quasineutrality for \(\phi\) with optional Boltzmann response (tau_e). Electromagnetic runs solve the coupled quasineutrality/perpendicular-Ampere system for \((\phi, B_\parallel)\) and then compute \(A_\parallel\) from parallel Ampere’s law. The implementation is in spectraxgk.terms.fields and is called from spectraxgk.terms.assemble_rhs_cached().

Normalization control

LinearParams exposes a rho_star factor that scales the perpendicular wave numbers used in the drift and drive terms. This allows fine adjustments of the effective \(k_\perp \rho\) without changing the FFT grid spacing.

Diamagnetic drive

The diamagnetic drive is written in the standard energy form,

\[\mathcal{D}_{\ell m} = i \omega_*\, J_\ell(b)\, \phi \left[1 + \eta_i \left(\mathcal{E}_{\ell m} - \frac{3}{2}\right)\right],\]

where \(\omega_* = k_y R/L_n\), \(\eta_i = (R/L_T)/(R/L_n)\), and \(\mathcal{E}_{\ell m}\) is the Hermite–Laguerre energy operator applied to the basis. The coefficients are generated by spectraxgk.linear.diamagnetic_drive_coeffs().

Time integration

The linear system is integrated using explicit fixed-step schemes (Euler, RK2, RK4) implemented inside a jax.lax.scan loop. For higher-order Hermite-Laguerre scans, the imex and implicit options provide additional stability by treating damping terms implicitly. RK4 remains the default for the Cyclone harness.

Boundary damping

For field-aligned domains with extended \(z\) coverage, the linear operator optionally applies a smooth end-cap damping profile (matching the analytic linked-boundary taper used in flux-tube calculations). The damping profile is controlled by:

  • damp_ends_widthfrac: fraction of the domain used for the taper.

  • damp_ends_amp: damping amplitude applied to \(H_{\ell m}\).

The damping is only applied to nonzonal modes (\(k_y>0\)) and can be disabled by setting damp_ends_amp = 0 in LinearParams.

Dealiasing

Nonlinear E×B terms use the 2/3 de-aliasing rule in perpendicular Fourier space, consistent with standard pseudo-spectral practice. The current implementation applies the mask before and after the real-space bracket evaluation.

Nonlinear Electromagnetic Terms

The nonlinear kernel evaluates gyro-averaged Poisson brackets in spectral space and converts to real space only for the perpendicular derivatives. The E×B term advects each Hermite–Laguerre moment with a gyro-averaged potential \(\chi = J_0 \phi + J_1 b_\parallel\) (implemented via \(J_l\) and \(J_l^B\) in the Laguerre basis). The electromagnetic flutter contribution uses \(\{g_m, J_0 A_\parallel\}\) and couples adjacent Hermite moments with the standard ladder factors, matching the GX nonlinear formulation. See FC82, AL80, and GX in References for the governing electromagnetic gyrokinetic equations and GX’s implementation details.
