Geometry

S-alpha flux-tube model

We start with a simple analytic geometry based on the s-alpha model, which is widely used for Cyclone base case benchmarks. The field-aligned perpendicular wave number is

\[k_x(\theta) = k_{x0} - \left(\hat{s}\,\theta - \alpha \sin\theta \right) k_y,\]

and the metric coefficients are

\[g_{ds2} = 1 + \left(\hat{s}\,\theta - \alpha \sin\theta\right)^2,\quad g_{ds21} = -\hat{s}\left(\hat{s}\,\theta - \alpha \sin\theta\right),\quad g_{ds22} = \hat{s}^2.\]

The perpendicular wave number is then

\[k_\perp^2(\theta) = k_y \left(k_y g_{ds2} + 2 k_x g_{ds21} \right) + k_x^2 g_{ds22},\]

with an additional \(B^{-2}\) factor from the s-alpha magnetic field strength,

\[B(\theta) = \frac{1}{1 + \epsilon \cos\theta}.\]

Parameters

The geometry is specified by:

• q: safety factor

• s_hat: magnetic shear

• epsilon: inverse aspect ratio

• R0: reference major radius

• B0: reference magnetic field

• drift_scale: drift normalization (1.0 is the tracked default; 2.0 selects the alternate doubled-drift convention)

Field-aligned grid parameters

For direct comparison with published Cyclone base case benchmarks, GridConfig exposes field-aligned grid inputs:

• y0 sets the minimum binormal wave number via \(k_y \rho = 1/y_0\). Internally this maps to Ly = 2\pi y0 so that the FFT grid spacing matches.

• ntheta and nperiod (or zp) control the parallel grid. We set \(Z_p = 2\,nperiod-1\) and choose Nz = ntheta * Zp, which spans \([-\pi Z_p, \pi Z_p)\).

Curvature and grad-B drift

The magnetic drift frequency used in the linear operator follows the standard s-alpha form

\[\omega_d(\theta) = k_y \left(\mathcal{C}_v + \mathcal{C}_g\right) + k_x \left(\mathcal{C}_v^0 + \mathcal{C}_g^0\right),\]

with

\[\mathcal{C}_v = \mathcal{C}_g = \frac{\cos\theta + (\hat{s}\,\theta - \alpha \sin\theta)\sin\theta}{R_0}, \qquad \mathcal{C}_v^0 = \mathcal{C}_g^0 = -\frac{\hat{s}\sin\theta}{R_0}.\]

These parameters will be extended to VMEC/DESC geometry once the linear solver is validated against Cyclone benchmarks.

Slab Model

SPECTRAX-GK exposes a slab flux-tube geometry contract directly with geometry.model = "slab". This is the correct backend for slab secondary and collisional-ETG benchmark families; it is not an s-alpha approximation.

The slab overrides are:

• bmag = 1 and bgrad = 0

• cvdrift = gbdrift = cvdrift0 = gbdrift0 = 0

• gradpar = 1 by default, or 1/z0 when geometry.z0 > 0

• the metric still uses the supplied s_hat unless geometry.zero_shat = true

• with zero_shat = true, the slab metric becomes gds2 = 1, gds21 = 0, gds22 = 1 and the effective solver shear is zero

That contract is now locked by unit tests so future secondary or slab full-GK work is built on stable geometry semantics. The retired reduced collisional-ETG path is no longer part of the maintained runtime.

Geometry Data Contract

The linear cache now accepts either:

• the analytic SAlphaGeometry model, or

• a sampled FluxTubeGeometryData contract.

FluxTubeGeometryData stores the solver-ready profiles on a specific theta grid:

• bmag and bgrad,

• gradpar,

• metric coefficients (gds2, gds21, gds22),

• curvature / grad-B drift coefficients (cv, gb, cv0, gb0),

• geometry metadata such as q, s_hat, R0, and the kperp2_bmag / bessel_bmag_power switches.

This is the insertion point for future VMEC/DESC or imported field-line geometry. The helper sample_flux_tube_geometry converts the analytic s-alpha model into the same contract, and ensure_flux_tube_geometry_data normalizes analytic and sampled inputs onto one solver-facing representation.

The sampled geometry contract is now a JAX pytree and is accepted by the linear cache, runtime initial-condition builder, RHS assembly entry points, nonlinear config runner, and reference-compatible volume-weight diagnostics. That means upcoming VMEC or imported field-line geometry can be threaded into more of the codebase without rebuilding solver-specific side paths.

The contract also preserves explicit jacobian and grho profiles when they are available from imported geometry. The helper load_imported_geometry_netcdf reads grouped NetCDF files with Geometry/Grids groups and root-level *.eik.nc field-line geometry files from VMEC/DESC-style workflows. That is the intended short path for imported stellarator examples: import the sampled field-line geometry first, prove solver/diagnostic parity on that contract, and only then add a native VMEC path that generates the same contract inside SPECTRAX-GK.

Runtime and executable paths can now construct that bridge directly from config with geometry.model = "imported-netcdf" and geometry.geometry_file = "external_geometry.nc". Analytic s-alpha remains the default with geometry.model = "s-alpha". For slab cases use geometry.model = "slab" with optional geometry.z0 and geometry.zero_shat controls. In practice an imported geometry file can be either a grouped diagnostic *.out.nc file or a VMEC/DESC-generated *.eik.nc file such as the W7-X examples used in benchmark comparisons. Root-level *.eik.nc files are no longer assumed to be closed-interval grids: the importer now infers whether the terminal theta point is present from the periodic endpoint content of the geometry profiles, so both VMEC-style closed grids and already-open Miller *.eiknc.nc grids are mapped onto the correct solver contract. For imported geometry, the runtime now also adopts the file’s theta extent, twist-shift jtwist/x0 defaults for both linked and fix aspect boundaries, and kxfac metadata so the flux-tube grid is built from the same field-line domain encoded in the file. The same importer is also exposed under the aliases geometry.model = "imported-eik", "vmec-eik", and "desc-eik" so configs can reflect the provenance of a root-level *.eik.nc file without changing the solver-facing geometry contract. The linear runtime uses the same geometry builder for KBM and ordinary cases. Regression coverage exercises imported sampled geometry explicitly for both "vmec-eik" and "desc-eik" aliases, so imported W7-X-style geometry is checked through the promoted runtime entry point. The test suite locks both root-level contracts explicitly:

• imported VMEC/DESC closed-interval *.eik.nc files must preserve theta_scale/nfp metadata and trim the terminal theta point consistently when mapped onto the solver’s open field-line grid, and

• imported GX Miller *.eiknc.nc files must stay on their already-open theta grid without a spurious terminal-point trim.

With the corrected imported-VMEC contract, that imported-geometry bridge now also reproduces the GX W7-X linear ITG t=2 reference on the same sampled field line over the tracked ky range. The refreshed scan in docs/_static/w7x_linear_t2_scan.csv shows mean relative gamma errors of about 2.3% to 3.5% and mean relative omega errors of about 0.02% to 0.27% across ky = 0.1 through 0.8.

That same imported contract now has a first-class nonlinear runtime workflow: examples/nonlinear/non-axisymmetric/w7x_nonlinear_imported_geometry.py and examples/nonlinear/non-axisymmetric/runtime_w7x_nonlinear_imported_geometry.toml mirror the GX nonlinear W7-X adiabatic-electron setup while keeping the geometry source explicitly tied to a VMEC/DESC *.eik.nc field-line file.

SPECTRAX-GK now also supports a direct VMEC runtime bridge with geometry.model = "vmec". This path uses the VMEC field-line helper to produce an imported *.eik.nc file and then re-enters the same imported-geometry contract described above. The bridge is cached by input content and VMEC file timestamp when SPECTRAX chooses the output path itself. If the user supplies an explicit geometry_file target, the runtime now regenerates that file instead of silently reusing whatever stale *.eik.nc may already be present there. That keeps the native JAX geometry contract centered on FluxTubeGeometryData while preserving reproducible imported-geometry workflows. For VMEC fix aspect cases, the bridge now leaves x0 unset when calling the geometry helper so it chooses the cut from y0 and the geometry itself. SPECTRAX no longer back-solves x0 = Lx/(2 pi) into the helper input, which was generating the wrong HSX/W7-X *.eik.nc files. When booz_xform_jax is not installed into the active environment, point SPECTRAX at it through BOOZ_XFORM_JAX_PATH or SPECTRAX_BOOZ_XFORM_JAX_PATH. The internal backend is preferred. A booz_xform install is only needed as an automatic fallback reader for older helper environments. Differentiable VMEC/Boozer transport-gradient audits require a booz_xform_jax checkout at or after upstream commit 1d5e8c. That revision replaces inactive zero-mode Fourier divisions by safe denominators in the JAX Boozer transform so reverse-mode cotangents through w spectrum reconstruction remain finite. Older checkouts can produce finite values but non-finite gradients and must not be used for promoted transport-gradient claims. The first differentiable-geometry bridge is now explicit in spectraxgk.geometry.differentiable. Use discover_differentiable_geometry_backends() to audit optional vmec_jax / booz_xform_jax availability and flux_tube_geometry_from_mapping(...) to validate an in-memory, solver-ready field-line geometry bundle before passing it into the existing FluxTubeGeometryData contract. This is a real contract boundary, not a proxy equilibrium: the upstream differentiable pipeline must still supply the sampled theta, bmag, gradpar, metric, drift, Jacobian, and grho arrays. The bridge is tracer-safe: finite-value checks are kept on host inputs, while JAX-traced arrays can flow through flux_tube_geometry_from_mapping(..., validate_finite=False) so geometry observables, inverse-design objectives, and covariance estimates can be differentiated.

The release validation artifact is generated by:

JAX_ENABLE_X64=1 PYTHONPATH=src \
  python examples/theory_and_demos/differentiable_geometry_bridge.py

It writes docs/_static/differentiable_geometry_bridge.png and docs/_static/differentiable_geometry_bridge.json. The JSON records vmec_jax and booz_xform_jax API availability, autodiff-vs-finite difference sensitivity errors, inverse-design convergence, local UQ covariance diagnostics, and seven optional real-backend derivative gates: a vmec_jax boundary-aspect check, a vmec_jax metric-tensor check through vmec_jax.geom.eval_geom, a stellarator VMEC field-line tensor check through vmec_jax.geom plus vmec_jax.vmec_bcovar, a direct VMEC tensor-derived flux-tube mapping check, a tiny booz_xform_jax Boozer-spectrum check, a bounded Boozer-spectrum-to-flux-tube mapping check, and a real vmec_jax VMECState to booz_xform_jax to SPECTRAX-GK field-line geometry check. The metric-tensor gate currently has max absolute AD-vs-finite-difference error about 5.9e-8 and max relative error about 1.3e-7. The field-line tensor gate uses the non-axisymmetric nfp4_QH_warm_start fixture and checks |B| ripple plus sampled VMEC metric observables before any reduced SPECTRAX-GK metric/drift closure is applied; its current max absolute AD-vs-finite-difference error is about 2.1e-3 and max relative error is about 2.4e-5. The direct VMEC flux-tube gate inverts the sampled VMEC metric tensor, derives gds*, gradpar, Jacobian, grho, and a local grad-\(B\) drift closure, and checks the resulting solver-ready geometry observables; the current max relative AD-vs-finite-difference error is about 1.3e-4 on the nfp4_QH_warm_start fixture. The same artifact now also records a bounded VMEC/EIK array-parity audit for that direct tensor path. That audit currently keeps the full production gate open because the direct tensor path still uses a VMEC-coordinate/equal-theta sampling and local grad-\(B\) closure. The same report now also runs a JAX-native vmec_jax -> booz_xform_jax Boozer equal-arc core audit. On the tracked nfp4_QH_warm_start fixture, that audit matches the imported convention for bmag, the solver Jacobian, gradpar, q, and s_hat with worst normalized/scalar errors 4.5e-3 and 2.4e-3; the derivative-like bgrad check is recorded separately and is 2.3e-2. The same JAX-native path now reconstructs the zero-beta Boozer metric profiles gds2, gds21, gds22, and grho with worst normalized mismatch 3.45e-2 and the loaded-convention zero-beta drift profiles cvdrift, gbdrift, cvdrift0, and gbdrift0 with worst normalized mismatch 3.50e-2. The remaining promotion gap is finite-beta and broader production-runtime drift parity beyond the tracked zero-beta equal-arc fixtures, not the Boozer equal-arc field-line or zero-beta metric/drift normalization on the tracked fixture. The Boozer gates evaluate the JAX-native Boozer |B| spectrum along a field line, build the FluxTubeGeometryData input mapping, and compare geometry-observable sensitivities against central finite differences. In the current artifact the VMEC-state path has max absolute AD-vs-finite-difference error about 5.8e-7 and max relative error about 1.4e-8 for the tracked geometry observables.

The reusable API entry point for this workflow is geometry_inverse_design_report(mapping_fn, initial_params, target_observables, ...): it runs a bounded Gauss-Newton inverse design on selected solver-ready geometry observables, checks the final sensitivity Jacobian against central finite differences, and records local covariance diagnostics. High-fidelity vmec_jax / booz_xform_jax optimization examples should use the same contract once their in-memory field-line mapping is available.

The gradient-report API accepts jacobian_chunk_size. None evaluates all forward directions in one vmap; an integer bounds the simultaneous directions; and "auto" delegates the memory policy to SOLVAX. The standard VMEC/Boozer geometry sensitivity report uses "auto" and records that choice in its JSON output. Chunked and unchunked Jacobians are required to agree before a report can support an optimization claim.

jacobian_mode separately controls derivative direction. "forward" is appropriate for few design variables, "reverse" for few observables, and "auto" selects between them from the input/output dimensions. Requesting chunking forces forward mode because the chunk size budgets simultaneous JVP directions. Reports record the resolved mode, and both explicit modes must agree with central finite differences before either is used in optimization.

The bridge validates more than array shapes. Host-side mappings must contain finite scalar metadata such as q, R0, B0, and theta_scale, must provide at least one theta sample, and must use a positive integer nfp. JAX-traced mappings can still be passed with validate_finite=False so autodiff transforms do not attempt host NumPy checks during tracing. The finite-difference utilities used by these gates also reject non-positive step sizes, and the inverse-design covariance block records rank and conditioning before any optimization result is promoted from local sensitivity evidence to a transport-design claim. Each geometry AD/finite-difference gate now also records a compact conditioning block alongside the raw Jacobians. That block includes finite flags for the AD and finite-difference Jacobians, singular values, numerical rank, condition number, AD row/column norms, per-parameter finite-difference step scaling, and the observable/parameter location of the worst absolute and relative AD/FD mismatch. This metadata is intentionally separate from the pass tolerance: a derivative can agree with finite differences and still be a poor optimization direction if the sensitivity map is nearly rank deficient or if the finite-difference step is not well scaled to the chosen VMEC coefficient. Research artifacts should quote both the derivative error and this conditioning metadata before treating a VMEC/Boozer bridge row as optimization-ready.

Growth-rate transport-gradient audits also need an eigenbranch-locality check. The public helper solver_linear_operator_matrix_from_geometry(geometry, ...) materializes the same SPECTRAX-GK linear operator used by solver_growth_rate_from_geometry(...). The report vmec_jax_transport_growth_branch_locality_report_from_states(base, plus, minus, ...) then compares the dominant-growth finite-difference slope against the slope of the eigenvalue nearest to the base dominant eigenvalue for every configured surface, field line, and k_y sample. If the independently selected max-growth branch switches, or if the base branch is under-isolated, the report fails closed and labels the row before any transport-gradient optimization claim is admitted. Current VMEC-JAX exposes the equilibrium implicit derivative through its public optimization API. SPECTRAX-GK growth campaigns select that policy with --jacobian implicit and retain the branch-locality report as a package-level physics gate. Historical frozen-axis boundary-chain artifacts remain in docs/_static as conditioning evidence, but their private-tape executable was removed when VMEC-JAX retired that optimizer generation. New derivative claims require the current VMEC-JAX turbulence tangent tests, SPECTRAX eigenbranch locality checks, and an independent finite-difference comparison on the exact objective used by the campaign.

Assemble several probe JSON files into the collection consumed by the projected writer with:

python tools/artifacts/build_vmec_state_to_input_mapping_response.py boundary-chain-collection \
  --probe-json tools_out/latest_vmec_stack/boundary_chain_zs13_h2e5_branch_locality.json \
               tools_out/latest_vmec_stack/boundary_chain_rc14_h2e5_branch_locality.json \
  --out-json tools_out/latest_vmec_stack/boundary_chain_growth_collection.json

The reusable low-level entry point is observable_gradient_validation_report(observable_fn, params, ...). It flattens arbitrary geometry or objective observables, compares JAX AD Jacobians with central finite differences, records absolute and relative error tables, checks a tangent direction, adds finite flags, and applies an explicit rank/condition-number gate. Its payload is strict JSON compatible: nonfinite diagnostic numbers are written as null while the corresponding finite flag and failure reason remain explicit. geometry_sensitivity_report is a thin FluxTubeGeometryData wrapper around the same helper.

For vmec_jax and booz_xform_jax this remains a bridge contract, not a claim that SPECTRAX-GK has run a full optimization. The upstream JAX pipeline must first produce the sampled solver-ready field-line arrays accepted by flux_tube_geometry_from_mapping. Passing the reusable AD/finite-difference gate proves local differentiability and conditioning of the supplied observables; production stellarator optimization still requires the VMEC/Boozer array parity, solver-objective gradient, and nonlinear transport gates described below.

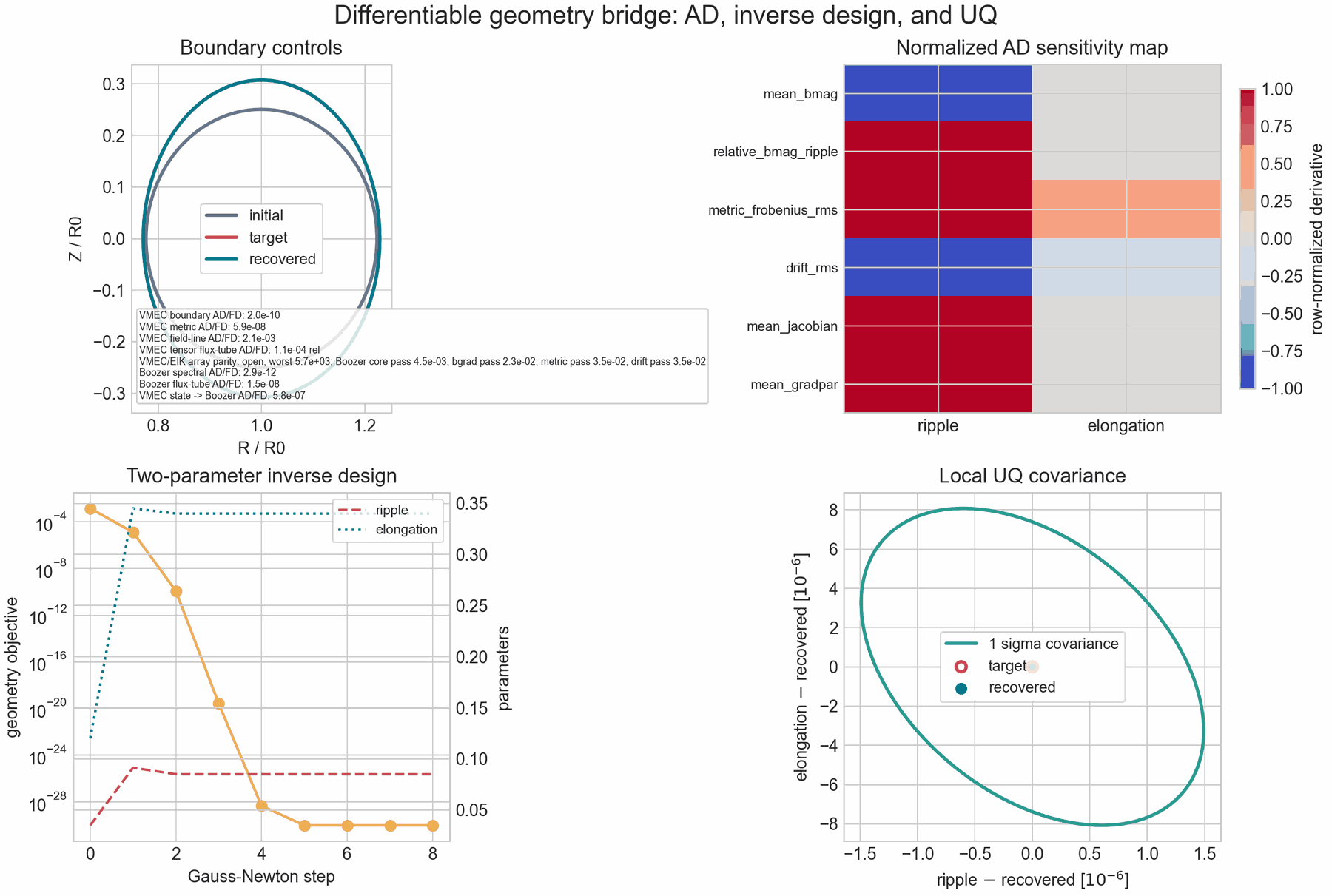

Differentiable geometry bridge validation. The panel checks boundary-control sensitivities, geometry-observable Jacobians, a two-parameter inverse design, and local UQ covariance at the in-memory flux-tube contract boundary. When vmec_jax is available, the panel/JSON also includes a real VMEC boundary-aspect derivative check and sampled VMEC metric-tensor derivative check, plus a real VMEC field-line tensor check for a non-axisymmetric fixture, a direct VMEC tensor-derived flux-tube mapping check, and a Boozer equal-arc core/metric parity check against the imported VMEC/EIK geometry; when booz_xform_jax is available, it runs a bounded JAX-native Boozer spectral transform, samples that spectrum onto a field-line flux-tube mapping, checks both autodiff derivative paths against central finite differences, and, when both optional backends are available, starts from a real vmec_jax VMECState before converting through booz_xform_jax into the SPECTRAX-GK field-line contract.

Multi-Equilibrium Boozer Parity Matrix

The single-fixture bridge artifact is complemented by a replayable multi-equilibrium matrix:

JAX_ENABLE_X64=1 PYTHONPATH=src \
  python tools/artifacts/build_vmec_boozer_parity_matrix.py

It writes docs/_static/vmec_boozer_parity_matrix.{png,pdf,json,csv}. The builder enforces mboz,nboz >= 21 before calling the real optional backend path, because the QI drift gate is under-resolved at lower Boozer mode counts. The JSON now includes a sample_set_provenance block and the CSV includes a sample_set_id column so each bounded row is identified by case_name, ntheta, mboz, and nboz. That provenance block also records that the builder does not launch external VMEC solves; input-only QI variants remain explicitly artifact-limited until a bundled wout reference exists. The tracked matrix covers the nfp4_QH_warm_start, nfp3_QI_fixed_resolution_final, and shaped_tokamak_pressure examples. At mboz=nboz=21 the current regenerated artifact passes all matrix rows. The fixed-resolution QI case passes the loaded-convention drift subgate with mismatch about 7.13e-2 against an 8e-2 release tolerance after fixing the Boozer half-mesh radial-index convention. The evaluated QI robustness variants at ntheta=8 and ntheta=16 also pass. The broader QI seed campaign is still artifact-limited because three input-only QI seeds have no bundled wout references, and none of this is broad random-seed nonlinear QI transport validation or QI optimization. The release guard now requires the finite-beta/pressure shaped_tokamak_pressure equal-arc row, so the current claim cannot silently regress to zero-beta-only parity evidence. Finite-beta solver-objective geometry gradients, broader production-runtime pressure-correction drift audits, and nonlinear transport optimization remain explicitly scoped as follow-up work.

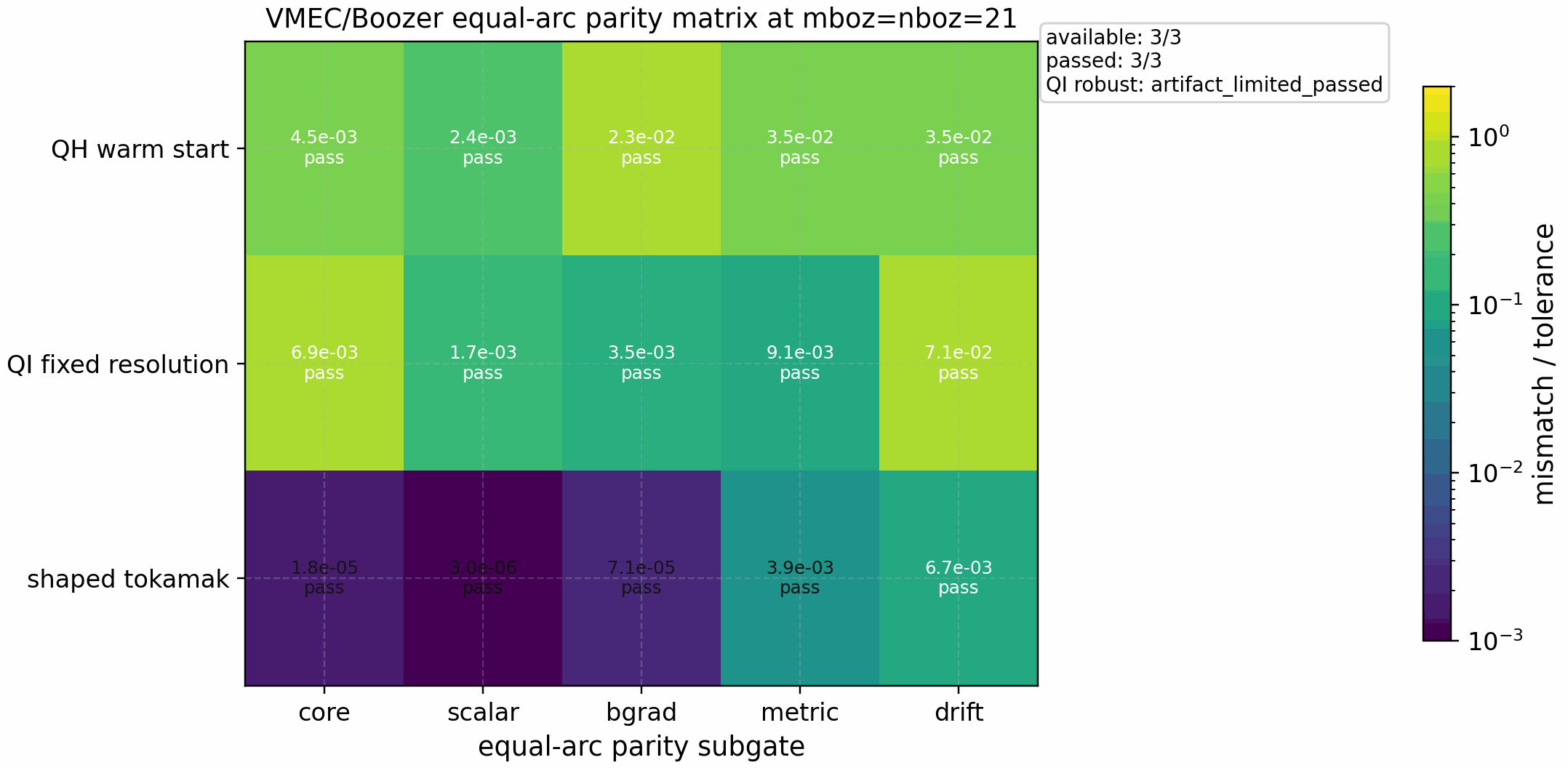

VMEC/Boozer equal-arc parity matrix. Each cell reports the absolute mismatch for one subgate, while the color shows mismatch divided by the relevant tolerance. The matrix is generated from the actual optional vmec_jax and booz_xform_jax bridge path and rejects Boozer mode counts below 21.

The next implementation step is to extend the same equal-arc path to finite-beta/production-runtime curvature and drift reconstruction, then replace the reduced estimator-gradient checks with converged transport-gradient and broader optimized-equilibrium audits beyond the selected QA candidate.

In-memory differentiable geometry API

Differentiable stellarator optimization must stay on the in-memory path:

from spectraxgk import flux_tube_geometry_from_vmec_boozer_state

geom = flux_tube_geometry_from_vmec_boozer_state(
    state,
    static,
    indata,
    wout,
    surface_index=surface_index,
    alpha=0.0,
    ntheta=32,
    mboz=21,
    nboz=21,
)

This public wrapper converts a solved vmec_jax state through booz_xform_jax and returns the existing SPECTRAX-GK FluxTubeGeometryData solver contract. The path is VMECState -> BoozXformInputs -> Boozer coefficients -> FluxTubeGeometryData and does not write or reload *.eik.nc files. The file-backed VMEC/EIK route remains the right runtime import path for ordinary examples, but it is not the path to use for end-to-end differentiable optimization.

The current wrapper is a production API boundary, not a new physics claim. It inherits the same mboz,nboz >= 21 and equal-arc parity requirements as the VMEC/Boozer gates. Full stellarator-optimization claims still require multi-surface/multi-field-line objective gates and nonlinear heat-flux audits of optimized equilibria.

The lightweight readiness tests mirror that claim boundary. The parity-matrix tests reject mboz,nboz < 21 and assert that a passed equal-arc matrix is still tagged as not_full_transport_gradient_claim. The gradient-holdout tests require the mode21_vmec_boozer_state source scope, mboz,nboz >= 21, and explicitly track the nonlinear-window estimator objectives as a reduced differentiability gate rather than a production nonlinear-optimization gate. The release guard docs/_static/vmec_boozer_differentiability_claim_guard.json now checks those contents directly: it requires the equal-arc parity matrix, the QH/Li383 mode-21 frequency/quasilinear/nonlinear-window gradient holdouts, explicit diagnostic_open status for the direct VMEC tensor-vs-imported-EIK convention gap, a passing finite-beta/pressure equal-arc parity row, and a startup-only label for the nonlinear finite-difference audit. It now also requires the shaped-pressure finite-beta eigenfrequency-gradient gate in docs/_static/vmec_boozer_shaped_pressure_solver_frequency_gradient_gate.json and the shaped-pressure finite-beta quasilinear-gradient gate in docs/_static/vmec_boozer_shaped_pressure_quasilinear_gradient_gate.json. It also requires the shaped-pressure finite-beta reduced nonlinear-window estimator-gradient gate in docs/_static/vmec_boozer_shaped_pressure_nonlinear_window_gradient_gate.json. A tagged release must fail if these artifacts try to promote a direct tensor-parity failure or a startup nonlinear-window response into a converged nonlinear transport-gradient claim. The same guard also checks the solver-objective content of each QH/Li383 gradient row: frequency rows must carry gamma and omega; quasilinear rows must additionally carry kperp_eff2, linear_heat_flux_weight, and mixing_length_heat_flux_proxy; nonlinear-window estimator rows must also carry the window mean, coefficient of variation, and trend metrics. The release thresholds are 5e-2 for frequency rows, 2e-2 for quasilinear rows, and 7.5e-2 for reduced nonlinear-window estimator rows. These are AD/finite-difference consistency gates, not nonlinear turbulence-gradient accuracy claims.

For release claims, the differentiable-geometry lane is closed only for artifact-passing equal-arc parity rows, reduced QH/Li383 AD/finite-difference objectives, and the shaped-pressure finite-beta eigenfrequency/quasilinear/reduced nonlinear-window estimator-gradient gates. The fixed-resolution QI row and evaluated QI ntheta variants now pass, but production nonlinear heat-flux optimization and finite-beta converged transport-gradient gates are still open. The active publication wording must keep these levels separate: the current bridge starts at real vmec_jax state coefficients and reaches SPECTRAX-GK solver observables, but it has not yet validated converged nonlinear turbulence gradients, broad QI transport behavior, or nonlinear audits of optimized equilibria. The VMEC bridge now also expands environment variables in geometry.vmec_file. The shipped portable runtime TOMLs now point to relative wout_*.nc paths under examples/vmec. Generate those WOUT files locally from the bundled vmec_jax input decks with examples/vmec/generate_wouts.sh or a single vmec_jax input.<case> command. Environment variables and --vmec-file remain useful for machine-specific validation equilibria, but they are no longer required for the bundled demos. For future validation-lane selection, the external vmec_jax example-data portfolio can be inventoried without copying those VMEC files into this repository:

VMEC_JAX_ROOT=/path/to/vmec_jax
python tools/artifacts/plot_vmec_jax_equilibrium_inventory.py \
  --data-dir "$VMEC_JAX_ROOT/examples/data" \
  --out docs/_static/vmec_jax_equilibrium_inventory.png

This writes docs/_static/vmec_jax_equilibrium_inventory.{png,pdf,json}. The artifact is an equilibrium-selection aid only. It excludes VMEC files with degenerate reference-scale metadata from the recommended follow-up list, but it still does not validate quasilinear transport until each selected VMEC equilibrium also has matched linear and nonlinear SPECTRAX-GK runs and physics gates. The first bounded smoke checks have finite stable linear branches for Li383, nfp4 QH, CTH-like, and shaped-tokamak fixtures from vmec_jax/examples/data; those checks only validate the runtime geometry and quasilinear-feature plumbing, not nonlinear transport. The nonlinear W7-X and HSX startup audits now confirm that this VMEC runtime path reproduces GX startup g_state and phi to roundoff when the generated *.eik.nc is rebuilt from the same VMEC input. The late-time W7-X diagnostic-state audit now also matches GX on the exact dumped nonlinear state once the comparison tool reconstructs the compressed real-FFT positive-ky dump grid directly from diag_state_ky_t*.bin. The tracked exact-state panel docs/_static/w7x_exact_state_audit.png records a maximum finite pointwise relative error of 4.62e-5 under the explicit 1e-4 convention gate, with late scalar diagnostics below 1.8e-7. That closes the remaining imported-geometry diagnostic-contract gap for nonlinear VMEC cases: startup, phi, kperp2, fluxfac, Wg, Wphi, and heat flux all agree on the same GX state. The follow-on exact-state linear audit on that same W7-X dump now also matches GX to roundoff. The remaining operator-level fixes were:

• treat boundary = "fix aspect" and "continuous drifts" as GX linked twist-and-shift boundaries in the linear cache, and

• include the GX collision-conservation correction on top of the Lenard-Bernstein damping term.

With those in place, the imported VMEC/eik bridge, the late-time linear RHS, and the late-time nonlinear E x B diagnostics all agree with GX on the same dumped stellarator state. The final nonlinear W7-X free-run mismatch then collapsed once the runtime de-alias mask matched GX exactly: the two-thirds cutoff must be strict (< 1/3), not inclusive. With that correction, the tracked stock-GX W7-X t = 200 VMEC runtime rerun also passes the native late-window comparison, so the shipped nonlinear W7-X example is now closed at startup, exact-state, and long-horizon levels.

Tokamak Miller geometry now follows the same imported-geometry bridge pattern. With geometry.model = "miller", the in-package geometry backend constructs the Miller surface, straight-field-line and equal-arc grids, metric and drift coefficients, writes a root-level *.eiknc.nc file, and then re-enters the same imported-geometry contract described above. An existing generated target is reused unless spectraxgk geometry miller --force is requested; this makes repeated runs cheap while keeping explicit regeneration available after changing an input deck. On the tracked Cyclone Miller parameters, the generated *.eiknc.nc file matches the clean GX grouped Geometry arrays to roundoff in the main metric and drift profiles. With the root-level open/closed theta inference corrected, the clean-mainline Cyclone Miller late-state audit also now closes on the exact dumped GX state: kperp2, fluxfac, phi, Wg, Wphi, and heat flux all match to roundoff on the same nonlinear state.

Two user-facing entry points now exercise that bridge:

• spectraxgk geometry vmec --config ... generates a compatible *.eik.nc file from a SPECTRAX runtime TOML.

• spectraxgk geometry miller --config ... generates a compatible Miller *.eiknc.nc file from a SPECTRAX runtime TOML, or reuses the existing target when its path is already populated.

• examples/nonlinear/non-axisymmetric/hsx_nonlinear_vmec_geometry.py and examples/nonlinear/non-axisymmetric/runtime_hsx_nonlinear_vmec_geometry.toml run a nonlinear adiabatic-electron ITG case on the bundled QHS VMEC input deck after its wout_NuhrenbergZille_1988_QHS.nc file is generated with vmec_jax. They still accept --vmec-file for exact HSX validation WOUTs while letting SPECTRAX generate and reuse the field-line geometry automatically.

VMEC and Miller runtime examples

VMEC-driven stellarator runs:

cd examples/vmec
vmec_jax input.nfp3_QI_fixed_resolution_final
cd ../..
spectrax-gk run-runtime-nonlinear \
  --config examples/nonlinear/non-axisymmetric/runtime_w7x_nonlinear_vmec_geometry.toml \
  --steps 200 \
  --out tools_out/w7x_vmec.out.nc

cd examples/vmec
vmec_jax input.NuhrenbergZille_1988_QHS
cd ../..
spectrax-gk run-runtime-nonlinear \
  --config examples/nonlinear/non-axisymmetric/runtime_hsx_nonlinear_vmec_geometry.toml \
  --steps 200 \
  --out tools_out/hsx_vmec.out.nc

Miller geometry runs:

spectrax-gk run-runtime-nonlinear \
  --config examples/nonlinear/axisymmetric/runtime_cyclone_nonlinear_miller.toml \
  --steps 200 \
  --out tools_out/cyclone_miller.out.nc

Imported geometry currently bypasses analytic twist-shift reconstruction and uses the provided grid as-is. That keeps the GX-import bridge honest while the native VMEC path is still being generalized.
