Testing

Testing philosophy

SPECTRAX-GK enforces high coverage on critical solver modules and requires physics-based checks for each numerical component. The test suite is designed to be:

  • pedagogic: each test explains the concept being validated

  • deterministic: no stochastic outcomes or tolerance drift

  • future-proof: targeted at invariants and well-posed regressions

Current testing target

The package-wide target is 95% coverage, but the coverage number is a guardrail rather than the scientific objective. New tests should be accepted because they protect one of the following contracts:

  • an implemented equation or reduced physical limit;

  • a numerical method, convergence rate, or conservation/free-energy identity;

  • a geometry, normalization, or diagnostic convention;

  • a benchmark artifact and its documented fit/window policy;

  • an autodiff contract checked against finite differences, tangent tests, or an adjoint consistency relation;

  • a regression for a bug found in parity, restart, runtime, plotting, or geometry-adapter work.

Long reference-code runs and office/GPU comparisons should not be hidden inside the default local suite. They should live behind explicit manifests or CI/manual lanes so local tests remain fast enough for routine development.

The refactor branch also carries a machine-readable validation/coverage manifest at tools/validation_coverage_manifest.toml. It is checked by tools/check_validation_coverage_manifest.py and maps each critical module to reference anchors, physics contracts, numerical contracts, fast tests, tracked artifacts, and next tests. This is the working guardrail for reaching 95% package-wide coverage without adding shallow tests that do not validate the implemented physics or numerics.

The manifest now has two levels of coverage ownership:

  • direct [[modules]] rows for public, high-risk, or actively refactored surfaces that need their own contracts and artifact traceability;

  • owned_modules entries for smaller implementation modules whose fast-test responsibility is intentionally carried by a direct row.

The checker inventories src/spectraxgk and fails if a package module is not directly listed, owned by a listed row, or explicitly excluded as package plumbing such as __init__.py or version metadata. This makes source extractions fail fast until the coverage owner, fast tests, and next-test debt are declared. New manifest tests for this policy should stay cheap and live in tests/test_validation_coverage_manifest.py or tests/test_refactor_coverage_*.py.

Manifest paths are intentionally concrete. fast_tests and artifact_paths must name files, not directories or placeholder buckets, and list fields must not repeat the same module, test, artifact, contract, or next test. The optional Cobertura XML pass also rejects duplicate measured entries for the same package module so coverage enforcement cannot depend on whichever duplicate XML row happened to be parsed last.

The wide CI matrix also feeds the manifest checker with coverage-wide.xml. That pass enforces the declared package-wide coverage target and writes the measured summary to docs/_static/validation_coverage_manifest_summary.json. Module-level rows in that summary are a debt map: they identify direct and owned modules below their row target, but release blocking remains tied to the package-wide gate unless the CI command is explicitly upgraded to --enforce-module-coverage.

Optional external-backend artifact builders that require local vmec_jax or booz_xform_jax checkouts are kept out of the default package-wide coverage denominator when the public CI cannot install or execute those repositories. Their fast contracts are still covered by mocked backend tests and low-level geometry/numerics tests, while the real physics claims are validated by the tracked JSON/PDF artifact gates documented below. This avoids treating unavailable optional backends as missing unit coverage while preserving the requirement that every differentiable-geometry claim has an explicit finite-difference or parity artifact.

Test categories

  • Basis tests: orthonormality and recurrence checks.

  • Operator tests: Hermite ladder streaming and mode extraction.

  • Benchmark tests: loading reference data and growth-rate fitting.

  • Physics sanity checks: conservation properties under simplified limits.

  • Response-function tests: zonal-flow residuals, GAM damping, and late-time envelopes.

  • Spectral tests: fluctuation spectra and windowed nonlinear statistics.

  • Autodiff tests: tangent, finite-difference, and inverse/UQ consistency.

Unit tests (numerical invariants)

Representative unit checks include:

These tests live in tests/test_linear.py and tests/test_grids.py and tests/test_normalization.py and tests/test_terms_assembly.py and are designed to fail deterministically if a discretization, assembly path, or normalization changes.

Physics regression tests

The physics-focused tests exercise reduced or symmetry limits that should remain invariant across refactors:

  • Term toggles: spectraxgk.linear.LinearTerms switches individual operator components without changing the equation structure.

  • Mirror/curvature activation: nonzero drift terms create nonzero response when streaming and drive are turned off.

  • Diamagnetic drive structure: the energy-weighted drive produces a nonzero response when gradients are enabled and vanishes at \(k_y=0\).

  • Normalization scaling: rho_star rescales the cached \(k_y\) values exactly.

  • End-cap damping: the linked-boundary taper only affects \(k_y>0\) modes and vanishes when damp_ends_amp = 0.

These checks are in tests/test_linear.py and are meant to be future-proof physics invariants.

Benchmark regression tests

Benchmark regression tests validate the Cyclone base case reference dataset and growth-rate extraction pipeline:

These tests live in tests/test_benchmarks.py and tests/test_full_operator.py.

Literature-anchored response and spectrum tests

The next research-facing additions should follow the published benchmark observables rather than inventing repo-local metrics:

  • Rosenbluth-Hinton / GAM response in shaped tokamaks: use the shaped benchmark conventions summarized by Merlo et al. to track residual levels and GAM damping alongside the linear shaping scan.

  • W7-X zonal-flow response: use the stella/GENE W7-X benchmark conventions for residual level and damping envelope.

  • W7-X fluctuation spectra: follow the W7-X Doppler-reflectometry comparison work for density and zonal-flow frequency spectra. The current closed artifact is a simulation-spectrum diagnostic; experimental transfer functions remain outside the release claim.

  • Electromagnetic stellarator verification: adopt a heavy-electron electromagnetic lane before realistic-mass claims, following the GENE-3D verification pattern.

These should be implemented as reproducible, script-owned figure/artifact lanes, not as ad hoc notebooks.

The first reusable tooling for this lane now exists:

The gate-report helpers are intentionally small and JSON-ready. They should be used by manuscript refresh scripts so every reported artifact has the same observable, reference, absolute/relative tolerance, and pass/fail convention. The companion coverage manifest should be updated when a new gate helper, artifact script, or refactor extraction changes module ownership or test responsibility. tools/generate_miller_zonal_response_pilot.py now writes the first such gate report into its JSON metadata for the residual, GAM frequency, and signed GAM growth/damping comparison against the Merlo Case-III paper-scale read-off. tools/generate_kbm_reference_overlay.py writes the same gate structure for the raw KBM eigenfunction overlay, using a strict overlap/relative-L2 policy. The current refreshed KBM overlay passes that policy with overlap 0.999985 and relative L^2 mismatch 0.00721 against the frozen GX raw mode. tools/generate_w7x_reference_overlay.py applies the same raw-mode policy to the imported W7-X linear benchmark at k_y rho_i = 0.3. It refreshes the frozen finite GX raw-mode bundle when a matching .big.nc file is supplied and writes docs/_static/w7x_eigenfunction_reference_overlay_ky0p3000.png plus JSON/CSV companions. The current artifact passes with overlap 0.9999999994 and relative L^2 mismatch 3.33e-5. tools/compare_gx_nonlinear_diagnostics.py --summary-json now emits a matching gate report for nonlinear diagnostic comparison figures, using the window mean relative mismatch as the scalar acceptance metric. The summary writer now accepts case/source labels, explicit tmin/tmax windows, and writes strict JSON, replacing nonfinite absolute-gate relative errors with null. The tracked release-window summaries cover Cyclone, Cyclone Miller, KBM, HSX, and W7-X. The older short Cyclone diagnostic remains available as an exploratory startup/resolved-spectrum audit, but it is not counted in the release-gate index. Observed-order and branch-continuity gate helpers are also available so velocity-space convergence panels and branch-followed scan tables can use the same JSON-ready acceptance convention. tools/generate_observed_order_gate.py is the generic no-rerun path for CSV-backed convergence studies: it reads either an explicit step column or a resolution column, writes an observed-order JSON gate report, and can generate a log-log convergence figure. The tracked Cyclone velocity-space convergence artifact lives at docs/_static/cyclone_resolution_observed_order.json and docs/_static/cyclone_resolution_observed_order.png. It uses an office/GPU ky=0.30 time-path sweep through (Nl,Nm)=(4,8),(6,12),(12,24),(16,32) with tmax=150 and passes the strict pairwise-order and final-error gates. tools/compare_gx_kbm.py --branch-summary-json wires that convention into the KBM branch-following workflow by summarizing adjacent gamma/omega jumps and successive eigenfunction-overlap continuity for the selected branch. tools/generate_kbm_branch_gate_summary.py provides the corresponding no-rerun artifact path: it reads the existing selected KBM candidate table and writes docs/_static/kbm_branch_gate_summary.json with the same strict gate schema. The current continuity-first selected branch passes the adjacent growth/frequency jump and successive-overlap gates. tools/make_validation_gate_index.py scans tracked JSON metadata and writes docs/_static/validation_gate_index.json, .csv, and .png so the docs always have one compact pass/open view of the currently materialized release validation gates. The current JSON index has 14/14 tracked reports passing. Exploratory diagnostics can set gate_index_include=false to remain documented without being treated as release blockers. tools/plot_nonlinear_window_statistics.py provides the companion manuscript-facing statistics panel for the nonlinear GX comparison gates by plotting the per-diagnostic mean_rel_abs and max_rel_abs values from those same tracked JSON summaries. tools/plot_nonlinear_feasibility_pilot.py is the analogous tool for new finite nonlinear pilots that do not yet have a reference comparison or production-resolution convergence gate. It writes PNG/PDF/JSON/CSV artifacts with explicit claim_level and promotion_gate.passed = false metadata, so exploratory external-VMEC runs can be documented without being promoted to transport validation claims.

tools/plot_external_vmec_nonlinear_convergence_gate.py is the promotion gate for those pilots once at least two grid levels exist. It replays the pilot JSON/CSV traces, compares common and least-trending late windows, requires enough samples, bounds relative heat-flux trend and coefficient of variation, and finally checks pairwise grid-refined heat-flux agreement. The tracked CTH-like external-VMEC artifact intentionally fails this gate and sets gate_index_include=false because it is a research-planning negative result, not a release-blocking validation gate.

tools/write_external_vmec_holdout_configs.py is the reproducibility companion for that lane. It writes the fixed-step nonlinear TOMLs and restart copy commands for the standard two-grid external-VMEC holdout ladder, e.g. t = 150 initial runs followed by t = 250 restart continuations at 48x48x32 and 64x64x40. The script does not promote any data by itself; the resulting traces must still pass the convergence gate above before they can enter quasilinear calibration reports or optimization studies. For the production nonlinear optimization evidence lane the same generator also accepts --seed-variant and --dt-variant entries. Those options write explicit [metadata] blocks and variant-specific filenames so seed and timestep replicate windows can be launched on the office GPUs, extracted with the same transport-window protocol, and checked by tools/check_nonlinear_window_ensemble_readiness.py before any absolute-flux or turbulent-flux optimization wording can be considered. For external-VMEC replicate campaigns, tools/build_external_vmec_replicate_ensemble.py is the reproducible NetCDF-to-evidence wrapper: it extracts heat-flux traces from finished *.out.nc files, writes the transport-window summaries and convergence reports, runs the readiness and ensemble gates, and produces the documentation figure used by the manuscript ledger. Before those files enter the ensemble builder, run tools/check_nonlinear_runtime_outputs.py on every produced *.out.nc. That gate verifies the grouped NetCDF contains Grids/time and the requested heat-flux diagnostic, checks finite monotone time samples, enforces optional tmin/tmax coverage, and fails closed for restart-only or metadata-only artifacts. It is the first campaign-level smoke check after a long office GPU batch exits with rc=0. tools/check_production_nonlinear_optimization_guard.py then consumes those replicated long-window ensembles together with the reduced optimization and startup finite-difference artifacts. It is the fail-closed check that allows release-safe scoped wording while blocking production nonlinear turbulent-flux optimization promotion until optimized equilibria have replicated post-transient transport-window audits. For actual nonlinear turbulence-gradient promotion, use tools/write_vmec_boundary_perturbation_inputs.py when the perturbation is a VMEC boundary coefficient. It writes the matched input.* files and records the exact vmec_jax commands needed to create the three real re-equilibrated wout files. Then use tools/write_nonlinear_turbulence_gradient_campaign.py to write the matched baseline/plus/minus VMEC launch ladders and replay commands. The campaign writer rejects missing files, duplicate resolved paths, and byte-identical VMEC contents unless --allow-identical-vmec-content is explicitly used for a plumbing-only smoke test; production evidence therefore requires real wout files. The generated TOMLs are restart-ladder segments: a final t=900 config only advances the last segment unless the earlier restart artifacts have been seeded. The manifest therefore records direct_full_horizon_launch_commands for one-shot final-horizon campaigns and an output_gate_command that must pass before ensemble evidence is built. For the direct one-shot route, launch the recorded commands with tools/run_nonlinear_gradient_direct_campaign.py instead of an ad-hoc shell loop. The launcher reads the manifest, assigns one worker per listed GPU, writes per-task logs and a status JSON, supports --skip-existing for safe restarts, and keeps the command provenance identical to the manifest. Then use tools/build_nonlinear_turbulence_gradient_fd_gate.py after the matched baseline/plus_delta/minus_delta ensembles finish. The builder writes the central finite-difference gradient sidecar and checks response resolution, forward/backward asymmetry, subtraction conditioning, propagated uncertainty, and the uncertainty gates on all three replicated nonlinear windows. The tracked optimized-QA/ESS ZBS(1,0) example is deliberately kept as a fail-closed regression: the real vmec_jax re-equilibrated t=[450,900] baseline/plus/minus ensembles pass their replicated transport-window gates and the initial three-replicate central finite difference is local, but gradient_uncertainty_rel = 0.655 and therefore does not promote a turbulence-gradient claim. A seed-5 follow-up for the same ZBS(1,0) bracket also remains blocked: the response fraction weakens to about 0.037, gradient_uncertainty_rel rises to about 1.18, and fd_asymmetry_rel is about 0.520. The companion RBC(1,1) and ZBS(1,1) controls fail the locality/asymmetry gates. The central-FD artifact now includes diagnostic-only paired-replicate rows when matching seed or timestep labels are available; these rows are useful for identifying sign reversals or weak responses, but they do not relax the production gates. A future passing artifact must satisfy both uncertainty and locality thresholds without weakening either threshold. For future perturbation refreshes, keep each coefficient/amplitude in a distinct artifact slug such as docs/_static/qa_ess_zbs10_rel5_nonlinear_gradient_zbs_1_0_central_fd_gradient_gate.*. Do not promote new prose until tools/check_nonlinear_turbulence_gradient_evidence.py reports passed = true and the JSON sidecar sets nonlinear_turbulence_gradient_gate = true. Until then, describe the result as a bounded production-candidate finite-difference audit, not as a nonlinear turbulence-gradient claim. The current QA/ESS composite profile-direction follow-up demonstrates this policy. The targeted plus_delta cross variants seed22_dt0p05, seed32_dt0p04, and seed33_dt0p05 completed and all six plus-state outputs passed the runtime-output gate. The extended plus ensemble still fails the spread gate with mean_rel_spread = 0.166 against the 0.15 limit, and the central finite-difference artifact remains blocked by fd_asymmetry_rel = 2.84 and gradient_uncertainty_rel = 1.22. That artifact is tracked as docs/_static/qa_ess_descent_profile_rel2_nonlinear_gradient_plus_delta_followup_central_fd_gradient_gate.json. It is a regression target for the fail-closed workflow and a design input for the next campaign, not promotion evidence. tools/rank_nonlinear_turbulence_gradient_candidates.py is the companion planning utility for failed candidates. It ranks completed central-FD artifacts by response, locality, conditioning, and propagated uncertainty margins, writes a fail-closed JSON summary, and recommends whether the next campaign should add replicas, shrink a bracket, or move to an overdetermined least-squares/profile-gradient design. The current tracked ranking artifact is docs/_static/nonlinear_turbulence_gradient_candidate_ranking.json and is not itself promotion evidence. tools/summarize_nonlinear_gradient_bracket_sweep.py is the next same-control locality utility. It consumes one or more central-FD JSON artifacts for the same control at different perturbation amplitudes, writes JSON/CSV/PNG sidecars plus an optional PDF, and decides whether to promote an already passing bracket, shrink/enlarge the amplitude, add statistical power, or abandon the single-control direction. It also reads the diagnostic-only paired-replicate rows when present. If those same-seed rows show sign reversals or large paired uncertainty, the utility explicitly recommends not spending more GPU time on more replicas at that same bracket. It also fails the campaign-planning recommendation toward a new locality sweep or smoother composite control when resolved central finite differences change sign across nearby amplitudes. The tracked RBC(1,1) 5%/8% result, docs/_static/qa_ess_rbc11_bracket_sweep.json, is a same-control negative audit: response is resolved at both amplitudes, but finite-difference asymmetry grows with amplitude, so the correct next action is a smaller locality sweep or an overdetermined profile-gradient control. tools/write_overdetermined_nonlinear_gradient_campaign.py implements that next launch-contract step. It writes multiple matched boundary-control VMEC perturbation manifests from one baseline input, records the per-control nonlinear campaign commands, and writes the final candidate-ranking command. The tracked QA/ESS profile-gradient launch plan is docs/_static/qa_ess_overdetermined_nonlinear_gradient_campaign_plan.json. Use tools/check_overdetermined_nonlinear_gradient_campaign.py to turn that multi-control launch plan into a machine-readable status artifact and tools/run_overdetermined_nonlinear_gradient_campaign.py to run all nested long-window tasks through one shared CPU/GPU worker queue. The checker must remain fail-closed until the VMEC states, nonlinear runtime outputs, ensemble gates, central finite-difference gates, and candidate ranking all exist and pass. Runtime outputs are only counted complete when their recorded Grids/time coverage reaches the campaign analysis-window endpoint, so in-progress NetCDF files cannot accidentally promote a result. After the long runtime queue completes, tools/postprocess_overdetermined_nonlinear_gradient_campaign.py runs the per-control output gates, ensemble gates, central finite-difference gates, candidate ranking, and final fail-closed status check in one reproducible sequence. The completed QA/ESS overdetermined campaign is intentionally tracked as a negative gate result: all 27 full-horizon nonlinear outputs pass the runtime coverage checks, but no control passes every production central-FD gate. The best candidate is RBC(1,1) with resolved response and bounded locality, but gradient_uncertainty_rel = 0.559 remains above the 0.5 promotion gate. The status artifact docs/_static/qa_ess_overdetermined_nonlinear_gradient_campaign_status.json therefore reports complete runtime coverage and zero promoted controls. This is a regression target for the fail-closed workflow and a design input for future variance-reduction or smaller-bracket campaigns, not a nonlinear turbulence gradient validation claim. tools/write_vmec_boundary_profile_perturbation_inputs.py is the companion for a single smoother composite direction. It perturbs several VMEC boundary coefficients together, normalizes the finite-difference scalar by the Euclidean norm of the coefficient-change vector, and writes the same baseline/plus/minus VMEC launch contract. The tracked docs/_static/qa_ess_descent_profile_direction_rel2_manifest.json uses the current QA/ESS long-window evidence signs to define a 2% descent-oriented ZBS(1,1), ZBS(1,0), RBC(1,1) direction. This is still a launch artifact; promotion requires the resulting re-equilibrated VMEC files and long-window nonlinear FD gate. After a detached office campaign finishes, run tools/run_nonlinear_gradient_manifest_postprocess.py on the generated gradient_campaign_manifest.json rather than replaying individual commands by hand. With --require-outputs it fails before post-processing if any expected *.out.nc file is missing; otherwise it runs the output gates, baseline/plus/minus replicated ensemble builders, the central-FD gate, and the final nonlinear-gradient evidence check in dependency order. Use --allow-blocked only when collecting a failure artifact for diagnosis; a promotion run should keep the default fail-closed behavior. If that central-FD gate is blocked by a replicated state, run tools/summarize_nonlinear_replicate_spread.py on the baseline, plus, and minus ensemble JSON files before launching more nonlinear simulations. The tool enriches the ensemble rows with seed/timestep labels and convergence statistics, writes JSON/CSV/PNG sidecars, and classifies whether the failed state is seed-limited, timestep-limited, mixed seed/timestep spread, or missing metadata. The current QA/ESS composite profile-direction diagnostic is docs/_static/qa_ess_descent_profile_rel2_replicate_spread_diagnostic.json: the plus state is a mixed seed/timestep failure, so the next GPU campaign must disambiguate timestep sensitivity or shrink the bracket rather than adding blind replicas. tools/write_nonlinear_replicate_followup_campaign.py turns that diagnostic back into a minimal run list. It reads the original gradient_campaign_manifest.json and the spread diagnostic, infers the seed and timestep metadata from the already-generated TOMLs, and writes only the cross variants needed to disambiguate the failed state. For the current QA/ESS profile-direction audit, the tracked launch artifact is docs/_static/qa_ess_descent_profile_rel2_plus_delta_replicate_followup_plan.json; it selects seed22_dt0p05, seed32_dt0p04, and seed33_dt0p05 for the plus_delta state. After those three GPU runs finish, rebuild the plus ensemble with the added outputs, rerun tools/summarize_nonlinear_replicate_spread.py, and only then rerun the central-FD/evidence gates.

tools/write_optimized_equilibrium_transport_configs.py is the production optimization companion for that final audit. Given a concrete post-optimization wout*.nc file, it writes the t=250,350,450,700 fixed-step nonlinear ladder on the release n64 grid, two seed replicates, one timestep replicate, restart-copy commands, and the exact tools/build_external_vmec_replicate_ensemble.py plus tools/check_production_nonlinear_optimization_guard.py commands needed after the runs finish. This wrapper is a launch contract only: the production optimization claim remains blocked until the generated t=[350,700] ensemble actually passes finite-flux, running-window, block/SEM, replicate-spread, and optimized-equilibrium marker gates.

tools/prepare_external_vmec_holdout_from_screen.py is the selector that feeds that generator. It reads the tracked linear candidate screen, skips excluded or already-audited cases, resolves the chosen VMEC file from the local vmec_jax checkout, and writes the next bounded holdout ladder plus a JSON selection summary. This removes another manual step from the external-VMEC nonlinear campaign and makes office reruns deterministic.

tools/build_external_vmec_holdout_runbook.py is stricter than a positive growth-rate sorter. It requires a configurable minimum screened growth rate (gamma >= 0.02 by default) before writing nonlinear launch commands. This keeps near-marginal branches in the manuscript evidence chain as linear/QI feasibility data without silently promoting them to expensive nonlinear transport holdout campaigns.

tools/build_qi_branch_refinement_gate.py is the focused companion for that near-marginal QI evidence. It checks finite low-k_y branch rows, contiguous positive support, optional Krylov consistency, and the same nonlinear-launch growth threshold. A failed launch-growth subgate is a useful documented result, not a release failure, because it prevents QI feasibility scans from being misread as transport validation.

tools/write_w7x_zonal_closure_sweep.py is the analogous reproducibility companion for the open W7-X zonal-response lane. It writes a manifest of single-k_x closure probes for the paper-facing test-4 contract, separated by operator family: baseline, constant-Hermite, |k_z|-weighted Hermite, mixed Laguerre-Hermite, Laguerre-only, and isotropic hypercollision variants. The manifest includes the exact tools/generate_w7x_zonal_response_panel.py launch commands plus the companion tools/plot_w7x_zonal_closure_ladder.py command needed to refresh the bounded closure audit after the remote runs complete. Each launch command writes a case-local panel.png and the final ladder command writes w7x_zonal_closure_ladder_full.{png,json,csv}, preventing exploratory office runs from overwriting the frozen documentation figure before the candidate passes the residual, late-envelope, and moment-tail screens.

tools/check_quasilinear_calibration_inputs.py is the corresponding calibration-admission guard. It scans quasilinear train/holdout reports and requires every non-audit nonlinear artifact to match a passed nonlinear gate. This makes validation provenance executable: finite-but-unconverged pilots can be documented in the docs, but they cannot silently become calibration or optimization data. The public CI runs this audit during the docs/packaging job, and the fast test suite checks the current tracked train/holdout reports against the same gate index.

tools/check_quasilinear_promotion_guardrails.py is the higher-level absolute-flux promotion guard. It scans the tracked quasilinear reports plus the claim-scope docs, fails if a promoted report lacks train/holdout points, finite nonlinear window statistics, a passed holdout gate, or calibration policy metadata, and writes docs/_static/quasilinear_promotion_guardrails.json with a normal gate_report for the validation index. This is not a runtime/TOML absolute-flux predictor; it is a fast metadata and wording guard that prevents overclaiming current diagnostics. The model-development figure scripts for saturation-rule sweeps, shape-aware saturation, and uncertainty-aware candidate scoring also validate their nonlinear summary inputs by default and serialize an input_validation block into the tracked JSON artifacts.

The diagnostics stream now also carries Diagnostics/Phi_zonal_mode_kxt, a signed complex zonal-potential history reduced over z with the same volume weights used elsewhere. That is the primitive to use for manuscript-grade Rosenbluth-Hinton / GAM work. Diagnostics/Phi2_zonal_t remains useful as a zonal-energy proxy for intermediate checks, but it is no longer the target observable for the final paper lane.

The first case-specific shaped-Miller pilot for this lane is now reproducible through examples/benchmarks/runtime_miller_zonal_response.toml and tools/generate_miller_zonal_response_pilot.py. Its frozen artifact lives in docs/_static/miller_zonal_response_pilot.png. The current frozen artifact is pinned to Merlo et al. Case III: adiabatic electrons, zero gradients, k_xρ_i≈0.05, k_y=0, and an initial ion-density perturbation. It uses Nz=32, Nl=4, Nm=24, dt=0.005, and runs to t≈60 through the same checkpoint-capable artifact writer used by long nonlinear runs. Using the Rosenbluth-Hinton convention phi(t -> infinity) / phi(0) gives a residual of about 0.192 against the Merlo Case-III figure read-off of about 0.19. The shipped extraction now follows the paper convention more closely: positive and negative extrema of the signed residual-subtracted trace are fit separately over a common pre-recurrence window, and the GAM frequency is extracted from the instantaneous phase of that same window via a Hilbert analytic signal. With the current t≈30 pre-recurrence window the artifact gives ω_GAM R0 / v_i≈2.20 and γ_GAM R0 / v_i≈-0.176, both close to the Merlo figure read-off. The explicit remaining follow-up item is the long-time recurrence visible in finite moment runs, rather than the benchmark-scale residual/frequency/damping gate itself.

An additional recurrence audit now brackets the numerical trade-off more explicitly: increasing the resolution to Nm=28 and Nl=4 lowers the late-time recurrence ratio from about 0.60 to about 0.54 and brings ω_GAM R0 / v_i nearly onto the Merlo read-off, but it also pushes the damping to roughly γ_GAM R0 / v_i≈-0.192, which is more damped than the paper-scale target near -0.17. A minimal hypercollisions_const ladder through 10^{-4} is effectively inert for this case, while 10^{-3} only lowers the recurrence ratio to roughly 0.589 and still does not beat the clean higher-moment run. The shipped artifact therefore remains on the Nm=24, Nl=4 baseline until the long-time recurrence can be reduced without moving the benchmark-scale damping gate.

The next literature lane now has a dedicated runtime contract as well: examples/benchmarks/runtime_w7x_zonal_response_vmec.toml and tools/generate_w7x_zonal_response_panel.py define the W7-X high-mirror bean-tube zonal-flow relaxation benchmark from the stella/GENE paper. The tool sweeps k_x rho_i over [0.05, 0.07, 0.10, 0.30]. The runtime contract seeds the published electrostatic-potential perturbation with init_field = "phi" and a Gaussian profile, while the panel extracts the unweighted signed line-average diagnostic Phi_zonal_line_kxt. The paper text states that the line-average trace is normalized to its value at t=0; the caption also mentions the maximum value, but the source figure is clipped at the initial point. The paper-facing default is therefore --initial-normalization=line_first and --time-scale=1. The init_amp normalization and non-unit time-scale options are retained as explicit audits, not as the validation contract. The default early-time fit-window cap is an explicit analysis policy chosen to isolate the initial GAM before the slower stellarator-specific oscillation. The generator forces a periodic radial box for this k_y=0 zonal response so the selected k_x rho_i values match the published test-4 targets exactly; this avoids the linked-boundary aspect-ratio override that is appropriate for drift-wave flux-tube runs but wrong for this radial zonal scan.

The current frozen VMEC-backed artifact lives at docs/_static/w7x_zonal_response_panel.png with strict JSON metadata at docs/_static/w7x_zonal_response_panel.json. The tracked combined trace CSV docs/_static/w7x_zonal_response_panel.traces.csv is written next to the figure so comparison and audit scripts can be rerun without office-only per-k_x directories. It is a long-window run: k_x rho_i=0.05 reaches t≈3460 and the other three wavelengths reach t≈1980. After the paper-faithful line-first normalization, the late residuals are about 0.0189, 0.137, 0.0938, and 0.526 for k_x rho_i = 0.05, 0.07, 0.10, and 0.30. tools/digitize_w7x_zonal_reference.py now extracts the stella/GENE Fig. 11 main traces and inset residual levels from the arXiv source figs/ZF.pdf. The resulting reference artifacts are docs/_static/w7x_zonal_reference_digitized.csv, docs/_static/w7x_zonal_reference_digitized_residuals.csv, docs/_static/w7x_zonal_reference_digitized.json, and docs/_static/w7x_zonal_reference_digitized.png. The comparison contract is implemented in tools/compare_w7x_zonal_reference.py and materialized at docs/_static/w7x_zonal_reference_compare.png with JSON metadata in docs/_static/w7x_zonal_reference_compare.json. The current long-window artifact passes the time-coverage gate for all four wavelengths, but the residual gate only passes at k_x rho_i=0.05 and the late-envelope gate fails by orders of magnitude. A previous init_amp-normalized audit happened to pass residual values for all four wavelengths, but that comparison is no longer treated as a validation result because it does not follow the paper text normalization. A later gaussian_width=4 probe matched the clipped apparent initial level of Fig. 11 better than the tracked width-1 profile, but the source figure shows that the apparent 0.8 start is a plot-limit artifact, not a reliable normalization target. The tracked TOML therefore keeps gaussian_width=1, matching the source expression exp[-(z-z0)^2].

The runtime path now has three safeguards for this lane. First, strided nonlinear diagnostics always retain the final step, so long traces do not silently stop one stride before the intended horizon. Second, checkpointed artifact generation validates each chunk for non-finite diagnostics, state, and fields before writing or continuing. This makes high-moment W7-X recurrence sweeps fail fast instead of running thousands of extra steps after a NaN. Third, default VMEC/eik cache outputs are reused when valid and generated through a unique temporary netCDF followed by atomic replacement, so parallel W7-X validation sweeps cannot observe or corrupt a partially written geometry file. A bounded k_x rho_i=0.07, Nl=16, Nm=64, dt=0.05 probe remained finite to t≈200 and a post-fix t≈50 rerun verified nonzero signed line-average diagnostics through the retained final sample. A separate external-restart artifact bug was then isolated to double-condensing already-active kx/ky diagnostic axes when appending loaded history. The writer now accepts either full spectral axes or already-active GX output axes, and a W7-X VMEC external resume smoke verified nonzero Phi_zonal_line_kxt and Phi_zonal_mode_kxt throughout the appended tail. A higher-moment follow-up with Nl=16, Nm=64, dt=0.05 then restart-continued the k_x rho_i=0.07 trace to t≈100 with finite diagnostics and nonzero signed line/mode samples across the post-restart tail. A full four-wavelength refresh at the same moment resolution also reached t≈100 with finite, nonzero signed traces for every target k_x rho_i. A width-4 full-window low-moment audit reached the digitized windows but flipped the residual sign at k_x rho_i=0.07, 0.10, and 0.30. The remaining open item is therefore not restart diagnostic continuity; it is the W7-X zonal damping, closure, and velocity-space recurrence behavior under the paper-facing line-first normalization. tools/plot_w7x_zonal_contract_audit.py turns the same tracked CSV/JSON artifacts into docs/_static/w7x_zonal_contract_audit.png. That panel is a publication-facing diagnostic of the open mismatch rather than a release gate; its JSON metadata has gate_index_include=false so the validation index does not count it as closed. tools/plot_w7x_zonal_moment_tail_audit.py adds a no-rerun velocity-space audit at docs/_static/w7x_zonal_moment_tail_audit.png. It shows that the long Nl=8, Nm=32 traces have large late normalized-trace standard deviations and non-negligible final high-Hermite/high-Laguerre free-energy fractions. The existing Nl=16, Nm=64, t≈100 audit lowers the early trace standard deviation but already carries a large high-Hermite tail, so the next closure experiment should be a bounded moment/closure or recurrence control sweep, not a change to the paper normalization. tools/plot_w7x_zonal_closure_ladder.py makes that bounded sweep explicit for k_x rho_i=0.07 in docs/_static/w7x_zonal_closure_ladder_kx070.png. The ladder separates closure families one knob at a time under the paper-facing initializer and line-average observable. The refreshed office-GPU ladder covers baseline, constant Hermite, k_z-weighted Hermite, mixed Laguerre-Hermite, Laguerre-only, and isotropic hypercollision variants at 0.01 and 0.03. The best early-window trace error is the isotropic nu_hyper=0.01 case with mean absolute error 0.2755 versus baseline 0.2861, but its late-window standard-deviation ratio is 4.25 versus baseline 4.10 and therefore worsens the recurrence/envelope metric. Laguerre-only and mixed Laguerre-Hermite closures show the same pattern: strong tail suppression with no simultaneous improvement of trace error and late envelope. The ladder is therefore a documented negative result for these bounded closure families, not a hidden validation setting. tools/plot_w7x_zonal_state_convention_audit.py closes the state-level initializer and observable convention layer for the same paper-facing setup. At k_x rho_i=0.07, Nl=16, and Nm=64, the recovered Gaussian potential has relative L2 error 1.85e-6, off-target spectral potential content is zero to the reported precision, and the signed line-average and volume-average helper diagnostics agree with manual reductions to about 2e-16. The line-first initial level is 0.28209 init_amp while the volume-weighted level is 0.28450 init_amp; that explicit difference is why the paper-facing observable must remain Phi_zonal_line_kxt normalized by its first nonzero sample. tools/plot_w7x_zonal_recurrence_sweep.py then performs the bounded recurrence sweep requested for the paper lane without changing initializer or normalization conventions. Moment resolution and closure source are varied separately at k_x rho_i=0.07 over the common t v_t/a <= 100 window. The no-closure rows give mean absolute reference errors 0.295 for Nl=8,Nm=32, 0.276 for Nl=12,Nm=48, and 0.283 for Nl=16,Nm=64. At fixed Nl=16,Nm=64, constant-source closure suppresses the final Hermite-tail fraction from 0.388 to 0.062 but worsens the trace mean absolute error to 0.291; the k_z-weighted closure remains close to no closure. This separates the remaining recurrence/closure problem from a state-convention error. The newest constant-hypercollision follow-up keeps the paper-facing normalization and compares nu_hyper_m=0.01 and 0.03 at Nl=16,Nm=64 to t v_t/a=100. Increasing nu_hyper_m lowers the final Hermite-tail fraction from 0.220 to 0.099 and lowers the free-energy ratio from 0.759 to 0.600, but the mean trace error remains 0.289 and the late-window standard deviation remains more than four times the digitized reference. The W7-X zonal lane therefore remains a physical closure/recurrence problem, not a normalization problem and not a simple constant-damping fix. The mixed Laguerre-Hermite closure audit then tests the best bounded closure candidate under a moment-resolution increase. At Nl=16,Nm=64 and dt=0.05, the mixed closure gives mean absolute trace error 0.2753 and late-window standard-deviation ratio 4.24. Raising the resolution to Nl=24,Nm=96 requires dt=0.025 for a finite run; it lowers the late-window standard-deviation ratio slightly to 4.11 and further reduces the Hermite/Laguerre tail fractions, but the trace error remains 0.2768. The more aggressive Nl=32,Nm=128 run still becomes non-finite by t v_t/a≈10 even at dt=0.025. This separates a real high-moment time-step limitation from the larger physical result: the current mixed closure does not converge toward the digitized W7-X trace in a way that can be promoted as validation. tools/generate_w7x_zonal_response_panel.py now exposes explicit --nu-hyper, --nu-hyper-l, --nu-hyper-m, --nu-hyper-lm, --p-hyper-*, --hypercollisions-const, --hypercollisions-kz, --enable-hypercollisions, and --gaussian-width overrides so future closure probes can be launched from the tracked benchmark tool rather than from unrecorded local TOML edits. Non-unit Gaussian widths remain initializer audits, not validation defaults.

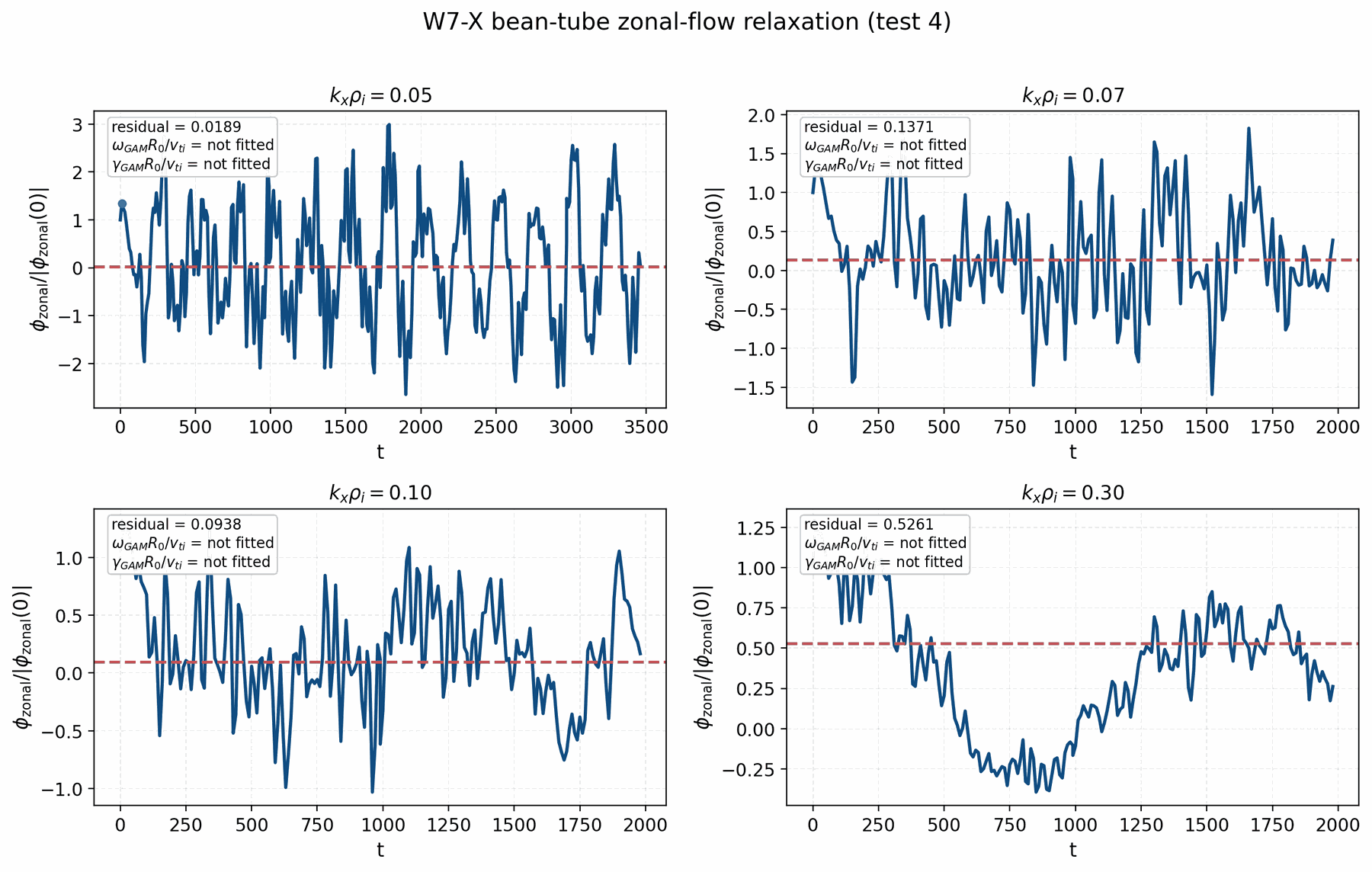

W7-X high-mirror bean-tube zonal-flow response panel

W7-X high-mirror bean-tube zonal-flow response for the stella/GENE test-4 target k_x rho_i values. The response is normalized to the first nonzero line-average sample, following the paper text. The red dashed line is the late-window residual estimate and the shaded band is the common initial-GAM extraction window.

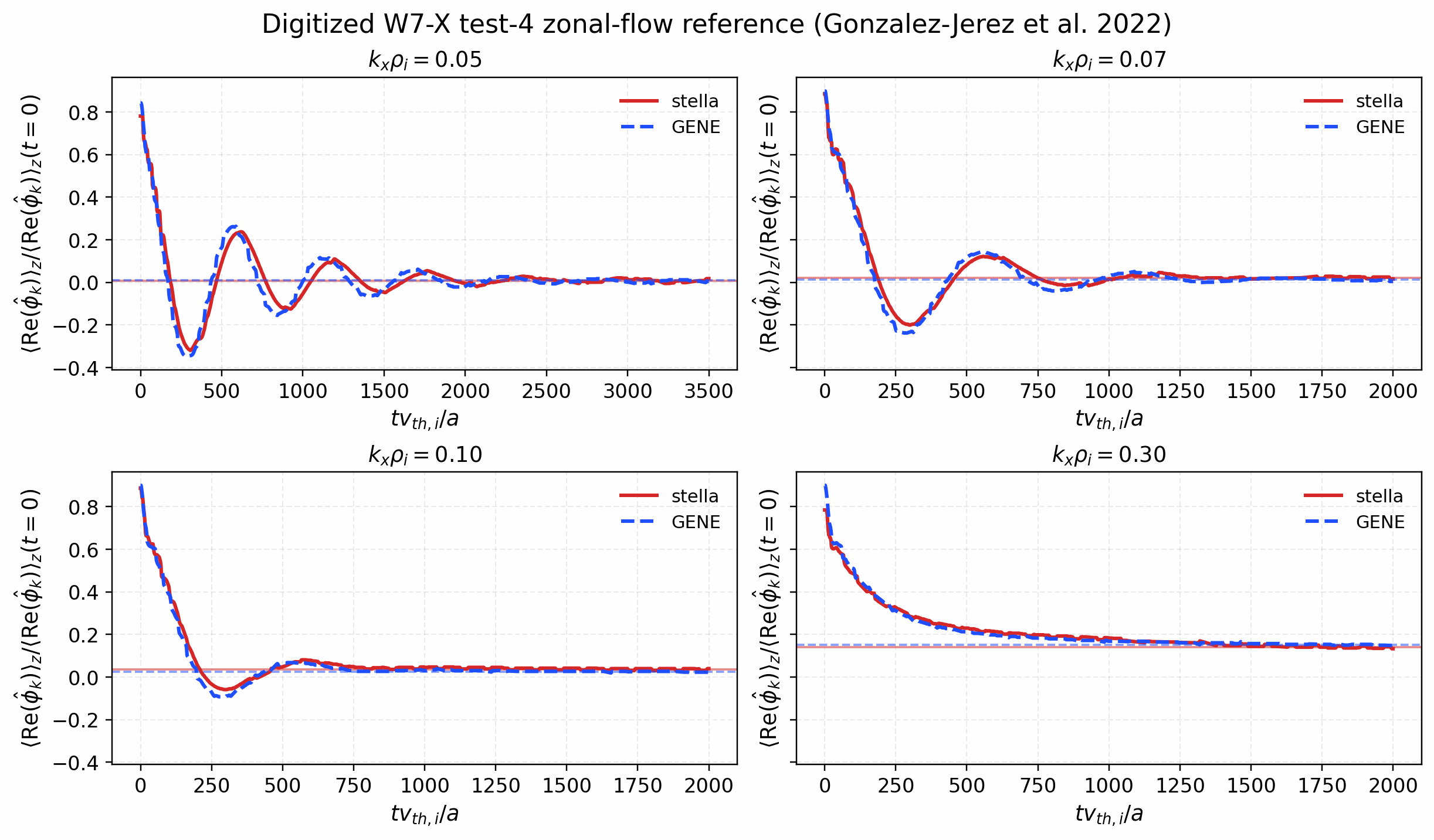

Digitized W7-X test-4 stella and GENE zonal-flow reference traces

Digitized stella/GENE reference traces from the W7-X benchmark paper’s Fig. 11. The horizontal lines are residual levels read from the figure insets and are the reference targets for the next long-window SPECTRAX zonal-response gate.

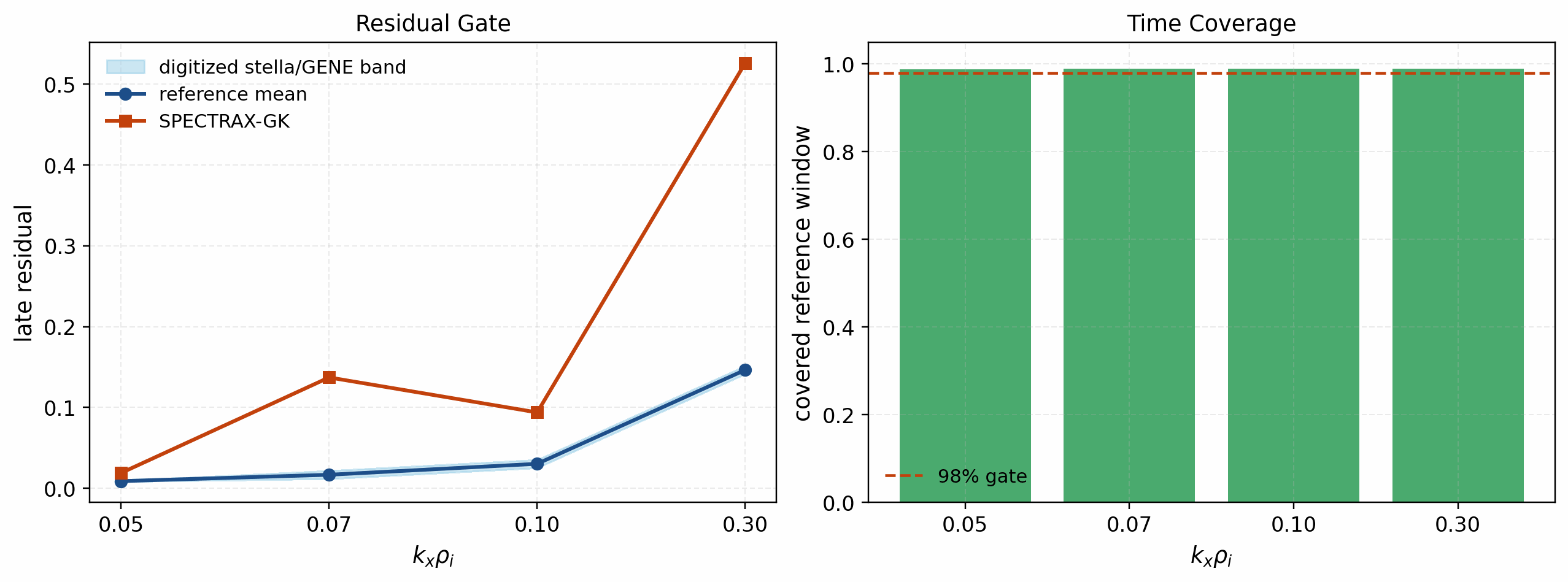

Current W7-X zonal SPECTRAX comparison against digitized references

Current W7-X zonal comparison gate. Time coverage passes for all four wavelengths, but the paper-normalized residuals and late-window envelopes remain open validation issues.

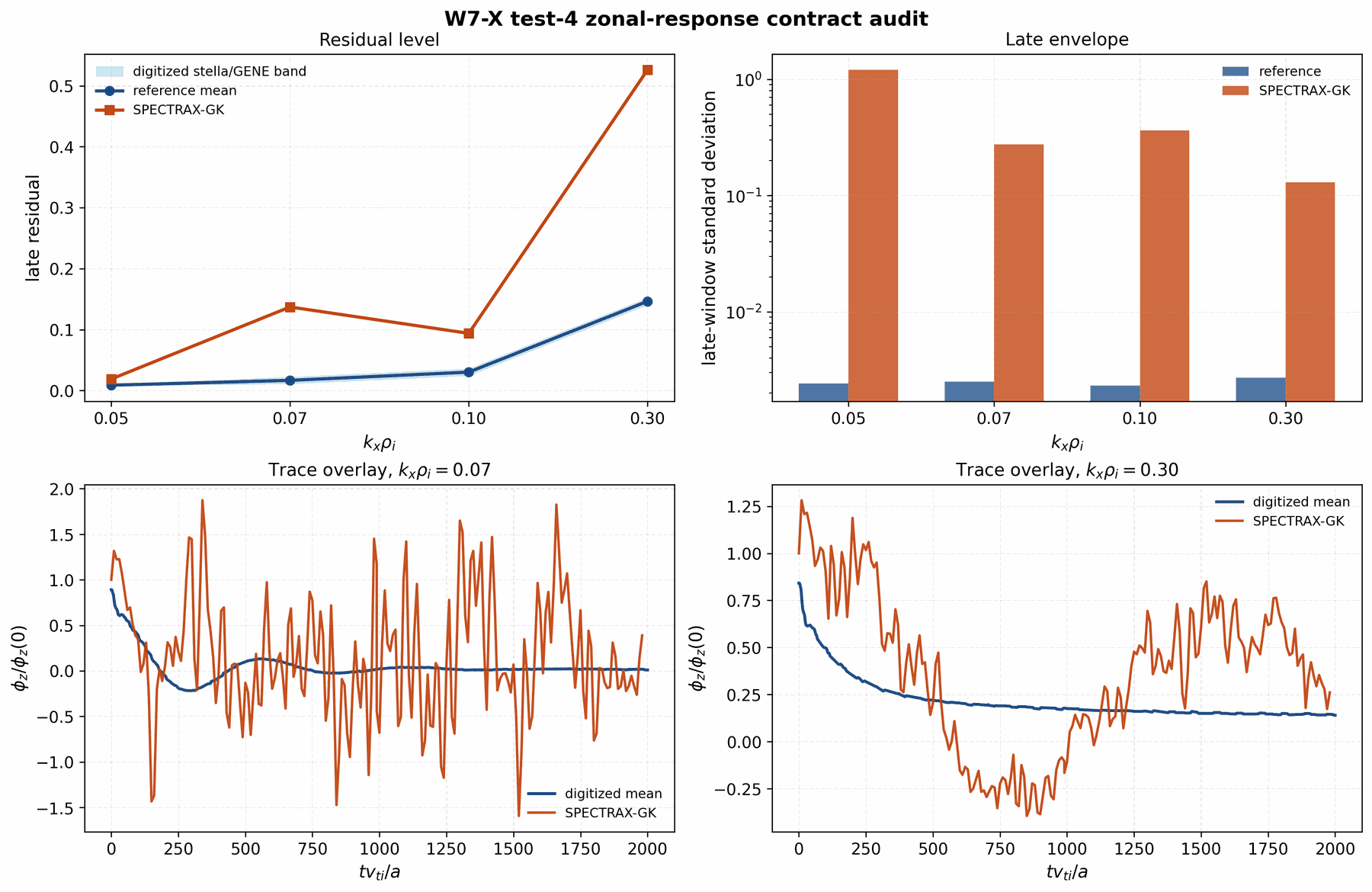

W7-X zonal-response literature-contract audit

Publication-facing audit of the open W7-X test-4 zonal-response lane. The top row separates residual and late-envelope discrepancies; the bottom row overlays representative paper-normalized traces against the digitized stella/GENE mean. This figure is intended to localize the remaining velocity-space recurrence / closure problem, not to claim validation closure.

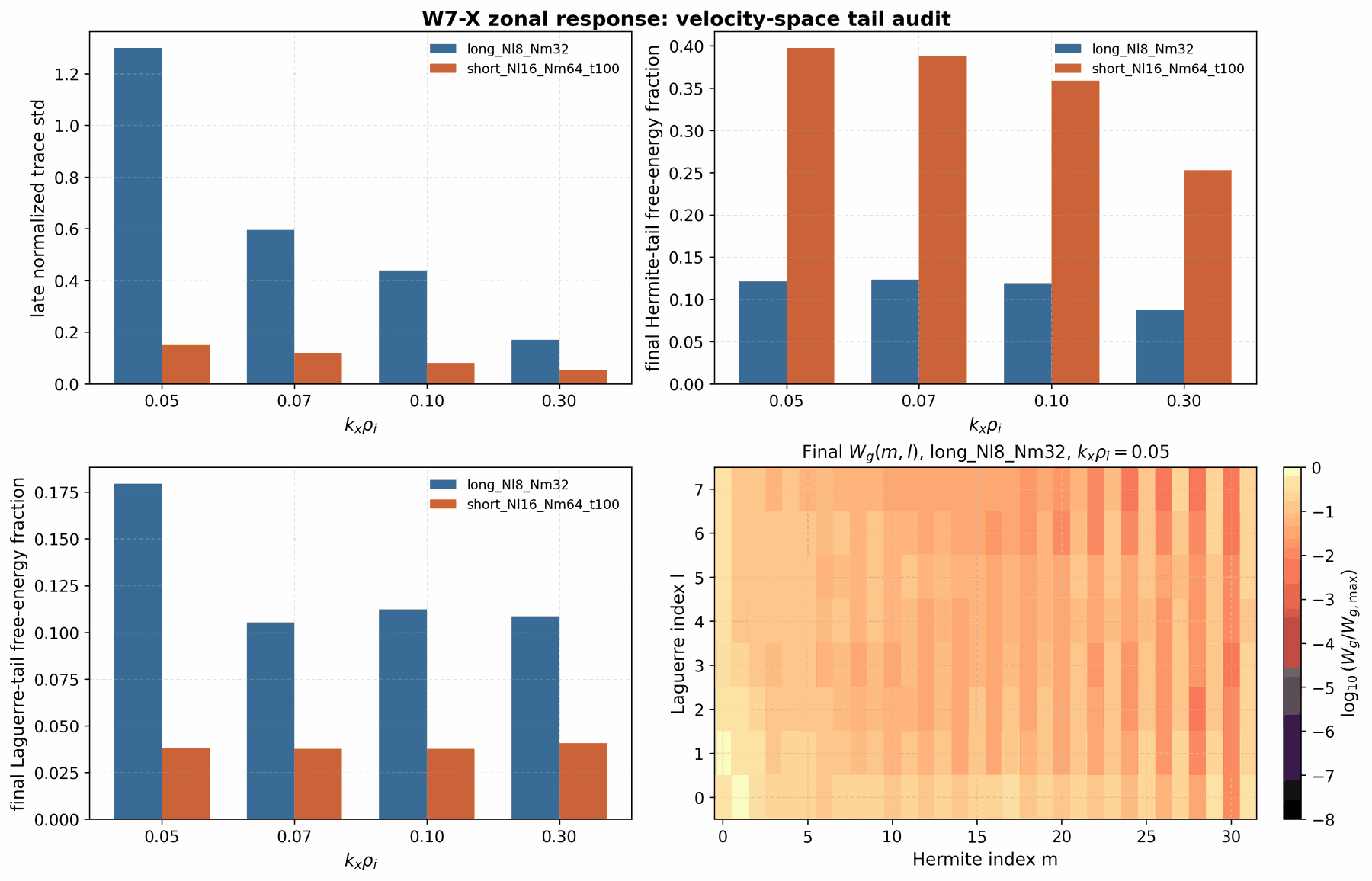

W7-X zonal-response velocity-space tail audit

Velocity-space tail audit for existing W7-X test-4 outputs. The long Nl=8, Nm=32 traces have large late normalized-trace variance and visible Hermite/Laguerre tail content. The short Nl=16, Nm=64 run reduces the early trace envelope but does not by itself close the long-window recurrence question.

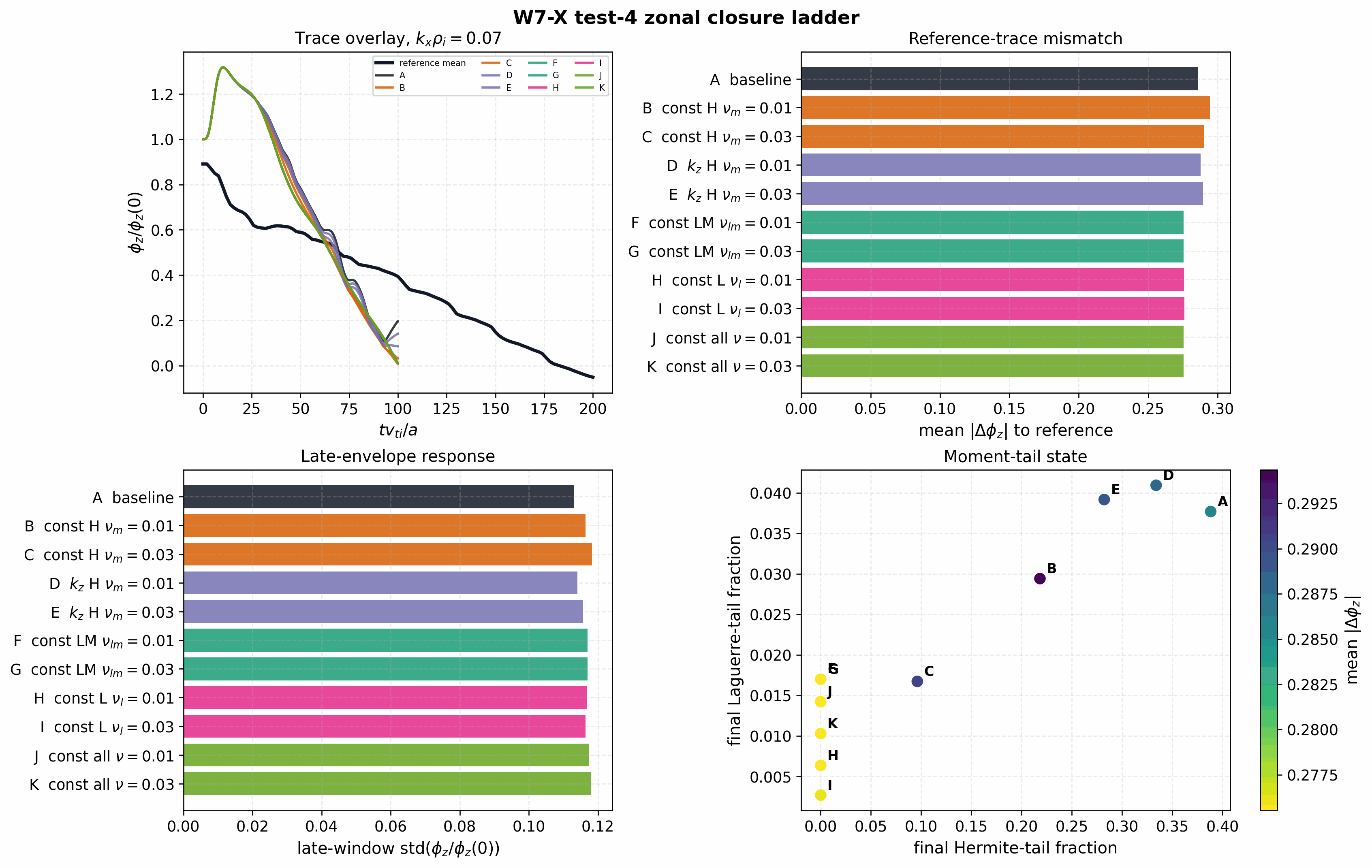

W7-X zonal-response closure ladder at kx rho_i 0.07

Bounded closure ladder for k_x rho_i=0.07. Constant Hermite, k_z-weighted Hermite, mixed Laguerre-Hermite, Laguerre-only, and isotropic hypercollision families are compared with the no-closure baseline. Some variants reduce mean trace error or velocity-space tails, but none improves the trace and late-envelope recurrence metrics together.

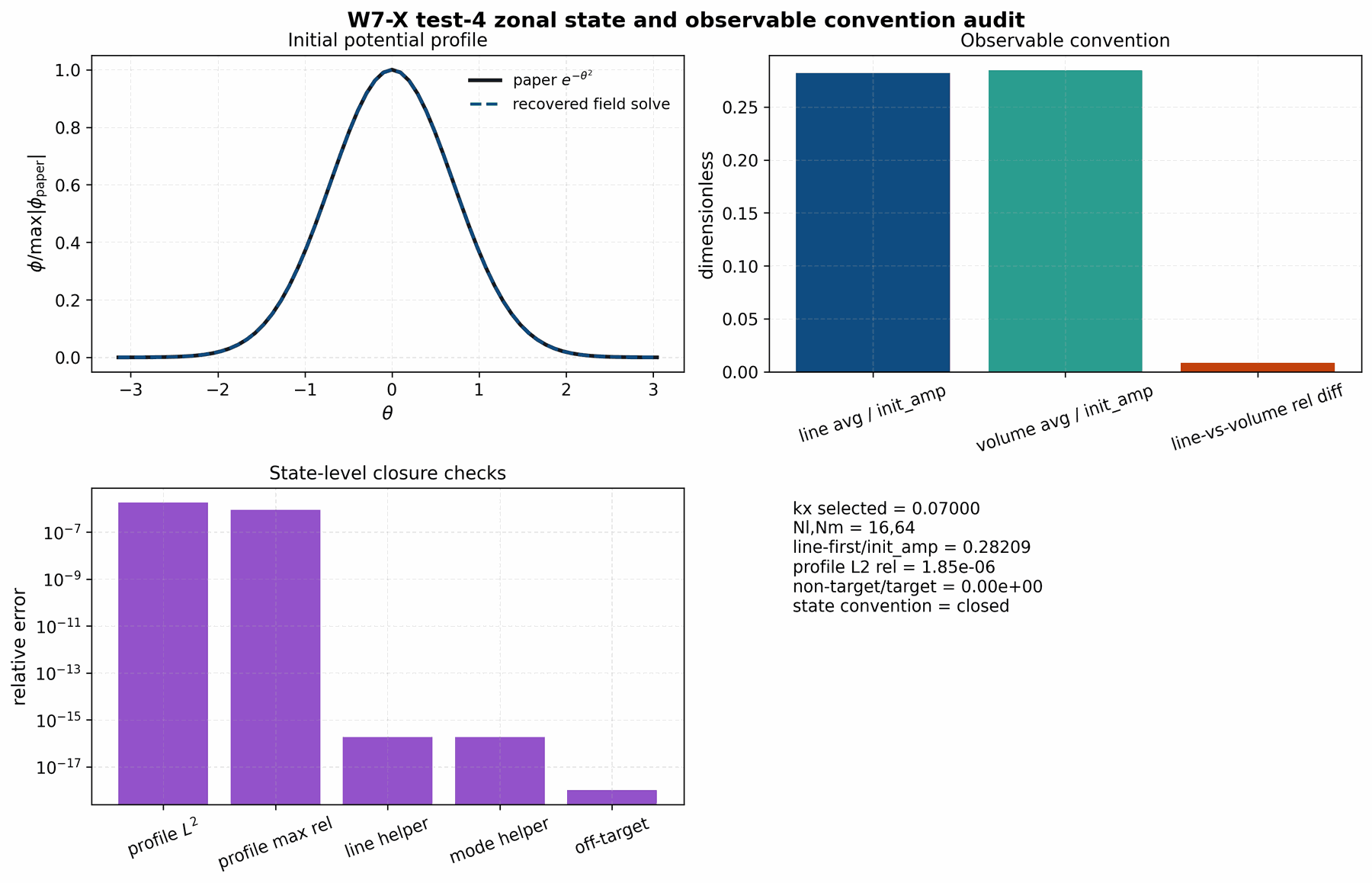

W7-X zonal-response state convention audit at kx rho_i 0.07

State-level W7-X test-4 convention audit. The runtime path recovers the paper Gaussian potential initializer, selects only the requested zonal spectral mode, and verifies that the signed line-average and volume-weighted zonal observables are intentionally distinct but internally consistent.

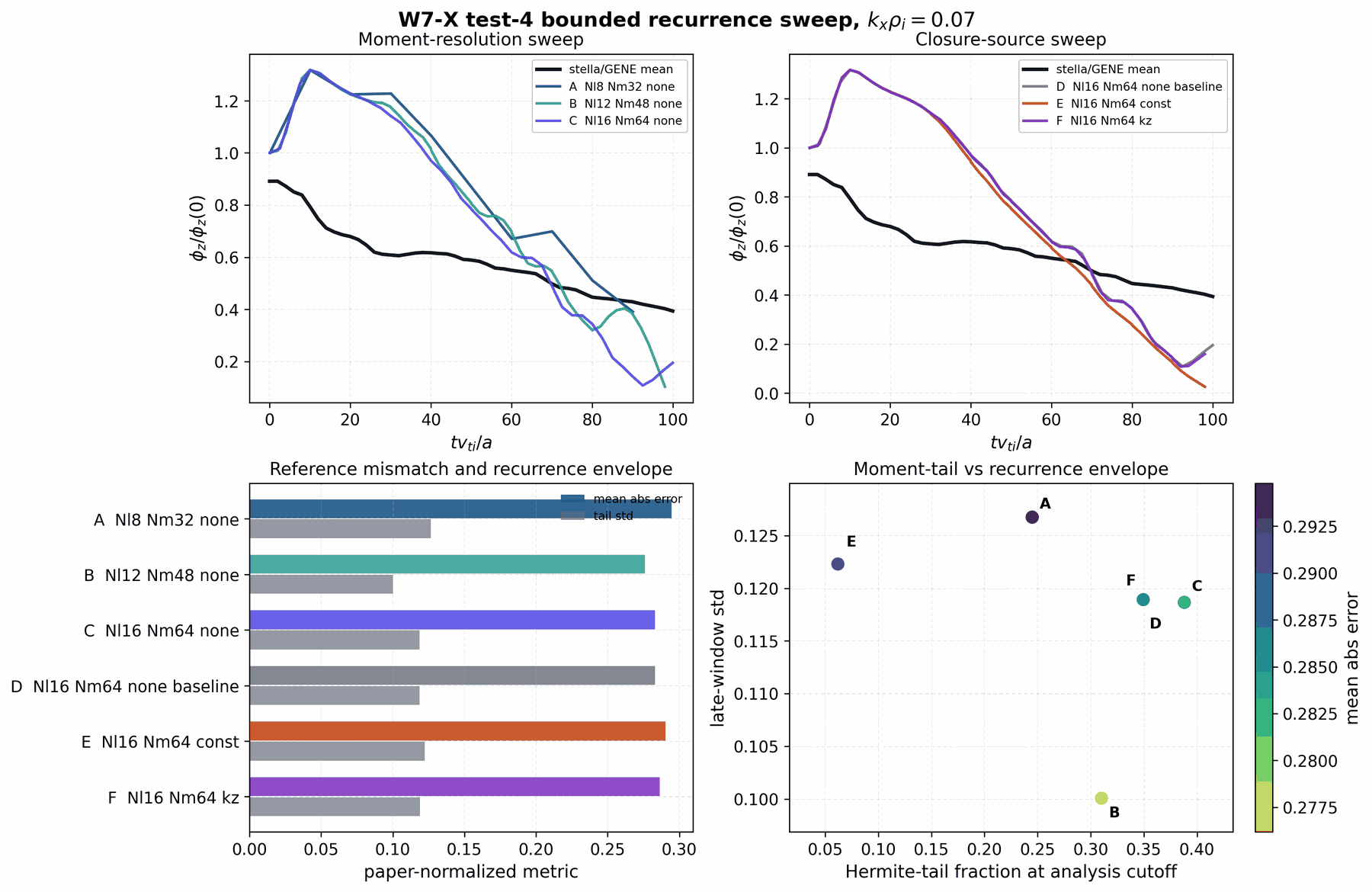

W7-X zonal-response recurrence sweep at kx rho_i 0.07

Bounded W7-X test-4 recurrence sweep at k_x rho_i=0.07. The left trace panel varies moment resolution with no closure; the right trace panel varies closure source at fixed high resolution. The bottom panels show that tail suppression alone does not yet close the literature-trace mismatch.

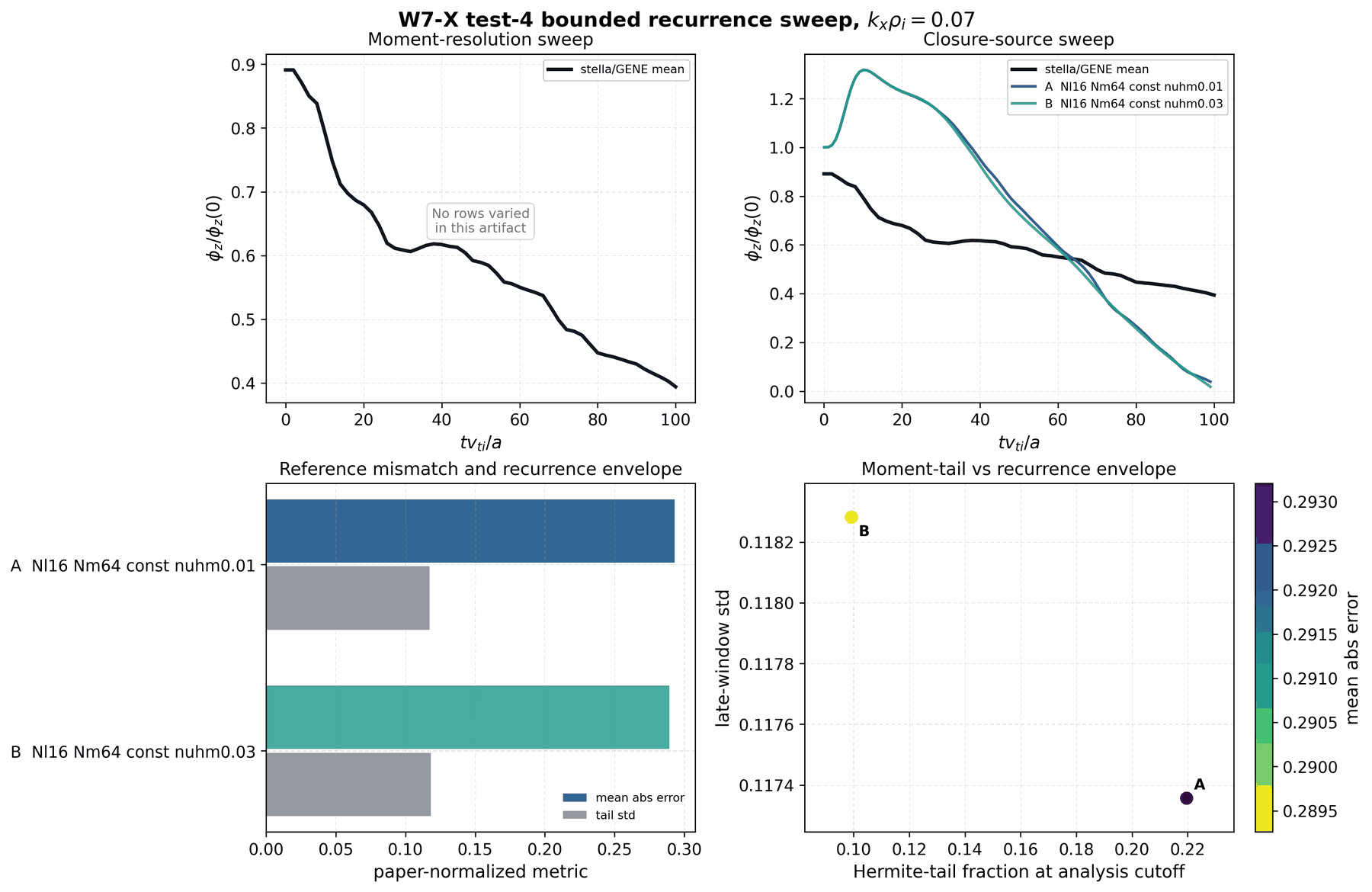

W7-X zonal-response constant hypercollision probe at kx rho_i 0.07

Constant-Hermite-hypercollision follow-up for k_x rho_i=0.07. Stronger constant damping reduces Hermite-tail and free-energy metrics but does not reduce the long-window trace error or recurrence envelope enough to match the digitized stella/GENE reference. This is a documented negative result that motivates a more physical closure/operator study.

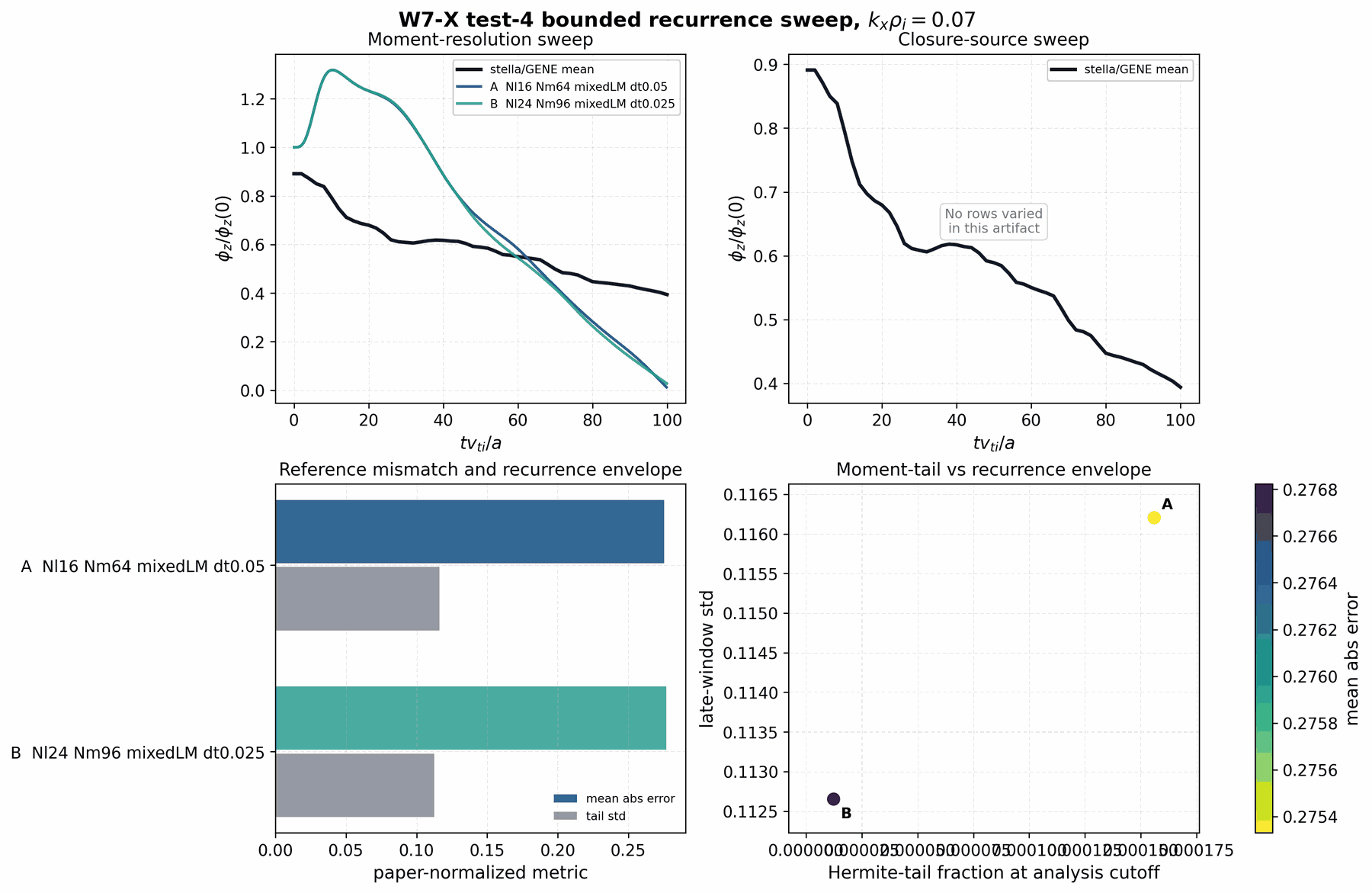

W7-X zonal-response mixed Laguerre-Hermite resolution audit at kx rho_i 0.07

Mixed Laguerre-Hermite closure resolution audit for k_x rho_i=0.07. The Nl=24,Nm=96 run is finite only with the smaller dt=0.025 and lowers the late-window variability modestly, but it does not improve the trace error relative to Nl=16,Nm=64. The omitted Nl=32,Nm=128 point is a tracked non-finite result under the same closure family, so this remains an open physics/numerics lane rather than a closed W7-X zonal validation.

Diffrax and nonlinear smoke tests

Diffrax integration and the nonlinear driver are exercised with fast smoke tests:

  • tests/test_diffrax_integrators.py runs explicit and IMEX diffrax solvers on tiny grids.

  • tests/test_diffrax_integrators_core.py hardens branch coverage for diffrax helper paths (solver selection, save modes, streaming fits, IMEX branches, parallelization, and validation errors).

  • tests/test_linear_krylov_core.py hardens matrix-free Krylov internals (mode-family targeting, shift-invert preconditioner selection, fallback policy, and dominant eigenpair wrappers).

  • tests/test_example_smoke.py verifies the config-driven runner (diffrax enabled) and a short nonlinear scan through the assembled E×B nonlinear bracket.

  • tests/test_nonlinear_exb.py exercises the nonlinear bracket sign, real-FFT path, flutter coupling, scalar/precomputed gyroaverage paths, and EM component accounting. The targeted nonlinear-term tranche covers the pseudo-spectral bracket and electromagnetic decomposition branches without launching benchmark-size turbulence runs.

  • tests/test_nonlinear_helpers_extra.py locks the higher-level nonlinear diagnostic contracts: Hermitian real-FFT projection, signed-mode masks, explicit Runge-Kutta variants, fixed-mode frequency extraction, collision splitting, and IMEX nonlinear terms.

  • tests/test_runtime_config.py and tests/test_runtime_runner.py verify unified runtime TOML loading and case-agnostic linear runs (Cyclone/ETG/KBM) through the same solver path.

  • tests/test_runtime_config.py also locks the public nonlinear stellarator runtime contract, including the absence of adaptive-step truncation caps and the presence of default tools_out/... artifact paths for W7-X and HSX.

Parallelization identity gates

Independent scan and ensemble parallelization is tested before it is used for performance claims:

  • tests/test_parallel.py locks the batch_map / ky_scan_batches helper semantics, including deterministic padding, one-device fallback, and pytree outputs used by UQ and sensitivity workflows.

  • tests/test_velocity_sharding.py locks the GX-inspired species/Hermite velocity-decomposition planner. These tests verify load balance metadata, Hermite ghost-exchange flags, and field-reduction axes before any production shard_map implementation can use that layout. The same test file also covers the full-array Hermite-neighbor reference and one-device fallback for the communication kernel.

  • tests/test_sharded_integrators.py locks the sharded linear RK2 wrapper in both no-sharding and explicit-sharding modes using a mocked RHS and mocked pjit. It also locks the fixed-step nonlinear state-sharded wrapper, including final-state-only profiling mode and the config-runner route through TimeConfig.state_sharding. These are numerical-identity and control-flow gates, not speedup claims.

  • tests/test_nonlinear_domain_parallel.py and tests/test_nonlinear_spectral_communication_gate.py lock the diagnostic nonlinear decomposition gates. The first covers one-cell halo chunks for a bounded local stencil. The second covers split/reassemble spectral layout identity for FFT round trip, pseudo-spectral bracket, and field-solve layout. Both fail closed and carry no production routing or speedup claim.

  • tests/test_generate_parallel_ky_scan_gate.py tests the artifact writer for the real Cyclone k_y-batch gate.

  • tests/test_parallel_artifact_contracts.py locks the tracked large-run scaling artifacts themselves. It requires the performance and validation manifests to list the CPU/GPU split artifacts, verifies serial numerical identity for independent k_y and quasilinear/UQ rows, checks that nonlinear whole-state sharding embeds per-device profiler/profile payloads, and fails if docs detach speedup wording from the current artifact set.

  • tools/generate_parallel_ky_scan_gate.py runs the actual linear solver serially and with fixed-shape k_y batching, then writes docs/_static/parallel_ky_scan_gate.{png,pdf,csv,json}. The JSON gate requires numerical identity for growth rate and frequency; the speedup value is reported separately for engineering tracking.

  • tools/generate_logical_cpu_parallel_scan_gate.py exercises RuntimeParallelConfig and batch_map over logical CPU devices with a structured JAX-native scan output. Its artifact docs/_static/logical_cpu_parallel_scan_gate.{png,pdf,csv,json} is an API identity gate, not a gyrokinetic physics benchmark.

  • tools/generate_hermite_exchange_gate.py runs the first actual jax.shard_map communication-kernel gate for nearest-neighbor Hermite ghost exchange and writes docs/_static/hermite_exchange_gate.{png,pdf,csv,json}. This is a prerequisite for production velocity-space decomposition, but it is not a nonlinear runtime speedup claim.

  • tools/generate_velocity_field_reduce_gate.py runs the matching jax.shard_map field-reduction gate with lax.psum over the Hermite mesh and writes docs/_static/velocity_field_reduce_gate.{png,pdf,csv,json}. Its tolerance is a float32 communication/reduction-tree tolerance, not a physics acceptance tolerance.

  • tools/generate_electrostatic_field_reduce_gate.py applies that reduction pattern to the production electrostatic quasineutrality density moment and writes docs/_static/electrostatic_field_reduce_gate.{png,pdf,csv,json}. It is currently scoped to single-species periodic electrostatic cases.

  • tools/generate_hermite_streaming_ladder_gate.py combines the Hermite exchange with the actual sqrt(m+1) / sqrt(m) streaming-ladder coefficients and writes docs/_static/hermite_streaming_ladder_gate.{png,pdf,csv,json}. This is the last isolated communication/coefficient gate before a linear streaming microkernel can be wired.

  • tools/generate_electrostatic_drift_gate.py gates the single-species periodic electrostatic mirror and curvature/grad-B drift slices against the production linear RHS. It uses offset-1 and offset-2 Hermite exchanges and writes docs/_static/electrostatic_drift_gate.{png,pdf,csv,json}.

  • tools/generate_electrostatic_diamagnetic_gate.py gates the single-species periodic electrostatic diamagnetic drive against the production diamagnetic-only linear RHS. It uses the Hermite-sharded electrostatic field reduction plus local m=0 and m=2 drive masks and writes docs/_static/electrostatic_diamagnetic_gate.{png,pdf,csv,json}.

  • tools/generate_periodic_streaming_microkernel_gate.py adds the periodic spectral parallel derivative and compares the shard-map path directly against spectraxgk.terms.operators.streaming_term. Its artifact docs/_static/periodic_streaming_microkernel_gate.{png,pdf,csv,json} gates the first opt-in linear streaming microkernel before full RHS wiring.

  • tools/generate_linear_rhs_streaming_gate.py routes the same sharded periodic streaming kernel through production linear_rhs_cached with all non-streaming terms and electromagnetic channels disabled. Its artifact docs/_static/linear_rhs_streaming_gate.{png,pdf,csv,json} is the first full-call-graph linear-RHS identity gate for velocity-space streaming.

  • tools/generate_linear_rhs_streaming_electrostatic_gate.py repeats that gate with an m=0 density perturbation and nonzero electrostatic phi. Its artifact docs/_static/linear_rhs_streaming_electrostatic_gate.{png,pdf,csv,json} gates the field-reduction-to-streaming call graph for the current single-species periodic electrostatic route.

  • tools/generate_linear_rhs_electrostatic_slices_gate.py compares the composed opt-in backend="electrostatic_linear_slices" route against serial linear_rhs_cached with streaming, mirror, curvature, grad-B, and diamagnetic drive enabled. Its artifact docs/_static/linear_rhs_electrostatic_slices_gate.{png,pdf,csv,json} is the current single-species periodic electrostatic linear-RHS identity gate for velocity-space parallelization.

  • tools/profile_linear_rhs_parallel_slices.py times that same composed route on a larger bounded CPU workload and writes docs/_static/linear_rhs_parallel_slices_profile.{png,pdf,csv,json}. The tracked profile is explicitly an engineering artifact, not a publication speedup claim; it uses a Hermite-heavy workload and a float32 reduction-order tolerance so the stricter composed identity gate remains the release correctness check. The office GPU companion artifact docs/_static/linear_rhs_parallel_slices_profile_gpu.{png,pdf,csv,json} is currently a negative performance baseline: it passes identity but is much slower than the single-GPU serial JIT path.

  • tools/profile_nonlinear_sharding.py runs a bounded fixed-step nonlinear serial-vs-sharded final-state comparison and writes docs/_static/nonlinear_sharding_profile.json locally and docs/_static/nonlinear_sharding_profile_office_gpu.json for the two-GPU office run. The release-gated nonlinear axes are auto/ky and kx; z-axis FFT sharding remains an exploratory domain-decomposition lane and must pass its own identity gate before it can be exposed as a runtime option. This keeps nonlinear state-sharding work profiler-backed while preventing unsupported runtime claims from entering the README.

Nonlinear parity snapshots

Recent GX parity spot checks are tracked outside the automated test suite:

  • Cyclone nonlinear short replay: the GX cyclone_salpha_short.in replay (dt=0.05, t_max=5, collisions off, diagnostics stride 1) now uses the explicit short-reference runtime contract in examples/nonlinear/axisymmetric/runtime_cyclone_nonlinear_short.toml. The main short-run drift turned out to be configuration-level: the replay needed p_hyper = 2 and no end damping to match the public GX short input. With that contract restored, the tracked comparison improves to mean_rel_abs(Wphi) ~= 2.11e-1 and mean_rel_abs(HeatFlux) ~= 2.51e-1. The resolved audit remains in docs/_static/nonlinear_cyclone_short_resolved_audit_t5.{png,csv}, where Wphi_kyst is still the dominant residual mismatch.

  • Secondary (`kh01a`): the tracked secondary comparison now uses a dense real GX run (kh01a_shortdense.out.nc, 10 samples in omega_kxkyt) and the rebuilt secondary_gx_out_compare.csv. The comparison helper now uses the GX file horizon automatically in out-nc mode, so it no longer mixes a short GX replay with a t_max = 100 SPECTRAX stage-2 run. On the matched short window, growth rates match tightly (max rel_gamma ~= 1.87e-4) and the non-zonal omega modes also close tightly (rel_omega ~= 3.23e-4 and 9.92e-4 on the k_y = 0.1 sidebands). The only large relative omega values left are the effectively zero- frequency k_y = 0 sidebands, where the absolute mismatch stays O(1e-6).

  • W7-X nonlinear (`t \approx 200`): the refreshed long-window NetCDF-backed comparison now closes at mean_rel_abs(Phi2) ~= 9.74e-2, mean_rel_abs(Wg) ~= 3.20e-2, mean_rel_abs(Wphi) ~= 3.02e-2, mean_rel_abs(HeatFlux) ~= 4.53e-2.

  • W7-X fluctuation spectrum: tools/plot_w7x_fluctuation_spectrum_panel.py reuses the same gated nonlinear NetCDF artifact and writes docs/_static/w7x_fluctuation_spectrum_panel.{png,pdf,json,csv}. The JSON records the time window, dominant nonzonal k_y, dominant heat-flux k_y, dominant zonal k_x, and claim_level. This is a reproducible simulation diagnostic and explicitly not a Doppler-reflectometry transfer- function validation.

  • W7-X/TEM extension status: tools/build_w7x_tem_extension_status.py reads the W7-X fluctuation panel plus the current TEM branch audit and writes docs/_static/w7x_tem_extension_status.{png,pdf,json,csv}. It closes only the simulation-spectrum estimator. tools/build_tem_branch_parity_audit.py writes docs/_static/tem_branch_parity_audit.{png,pdf,json,csv} from the tracked TEM mismatch table. TEM linear parity remains open with maximum absolute relative growth-rate mismatch about 4.25, maximum absolute relative frequency mismatch about 3.3 when near-zero reference denominators are excluded, one growth-rate sign mismatch, three frequency sign mismatches, and an inverted frequency-branch rank ordering (Spearman ≈ -0.986). Because this reference is a provisional literature digitization rather than a direct case dump, the audit blocks broad TEM claims but is not a standalone tuning target. W7-X multi-alpha, multi-surface, and kinetic-electron nonlinear windows remain unstarted.

  • HSX nonlinear (`t = 50`): the refreshed comparison closes at mean_rel_abs(Wg) ~= 2.75e-2, mean_rel_abs(Wphi) ~= 3.61e-2, mean_rel_abs(HeatFlux) ~= 2.91e-2.

  • KBM nonlinear (`t = 100`): the refreshed long-window comparison closes at roughly 9.3e-3 mean-relative error across Wg/Wphi/Wapar/HeatFlux/ParticleFlux.

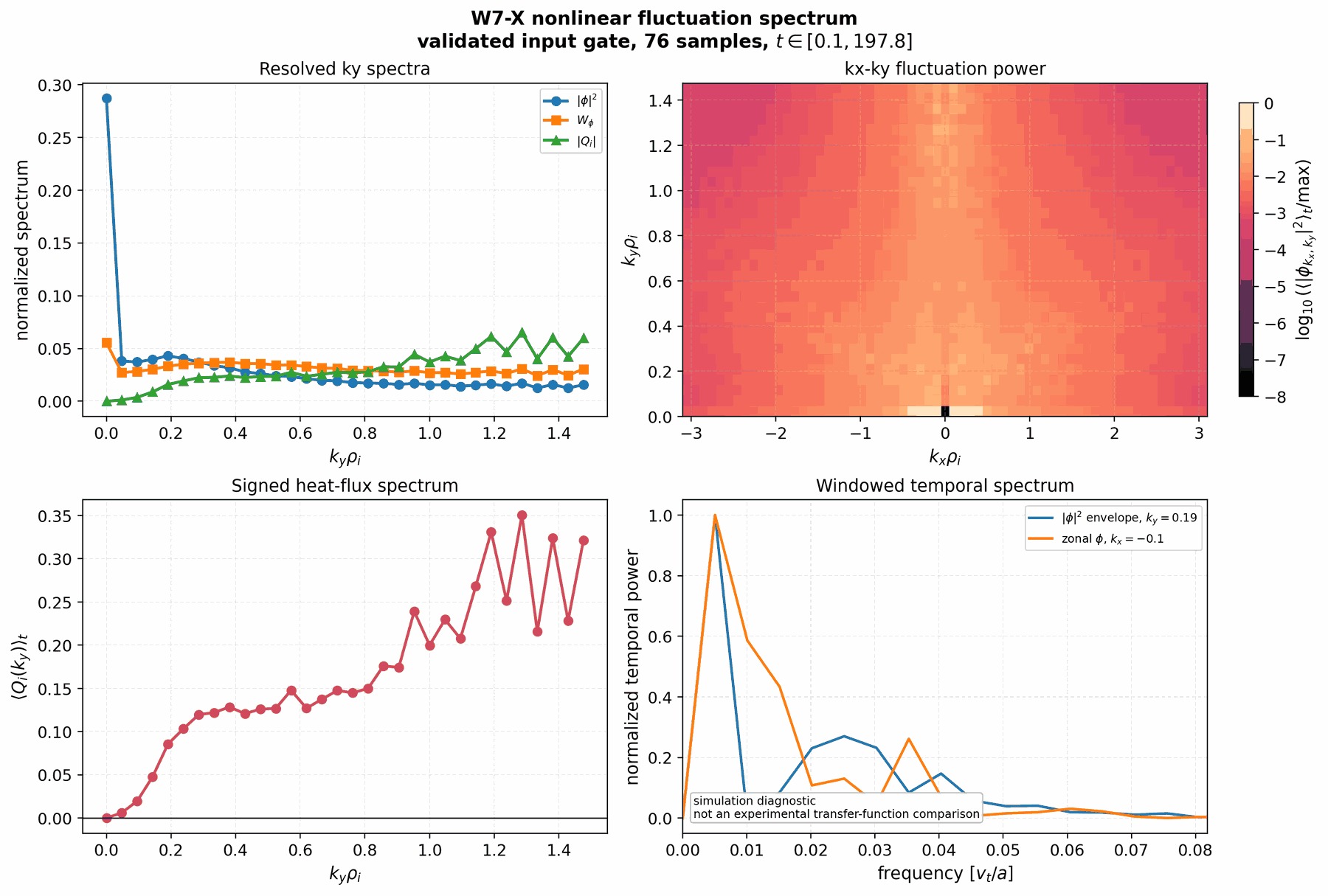

W7-X nonlinear fluctuation-spectrum diagnostic panel

W7-X nonlinear fluctuation-spectrum diagnostic from the gated t≈200 VMEC-backed run. The panel summarizes resolved simulation spectra and is intentionally scoped below an experimental Doppler-reflectometry comparison.

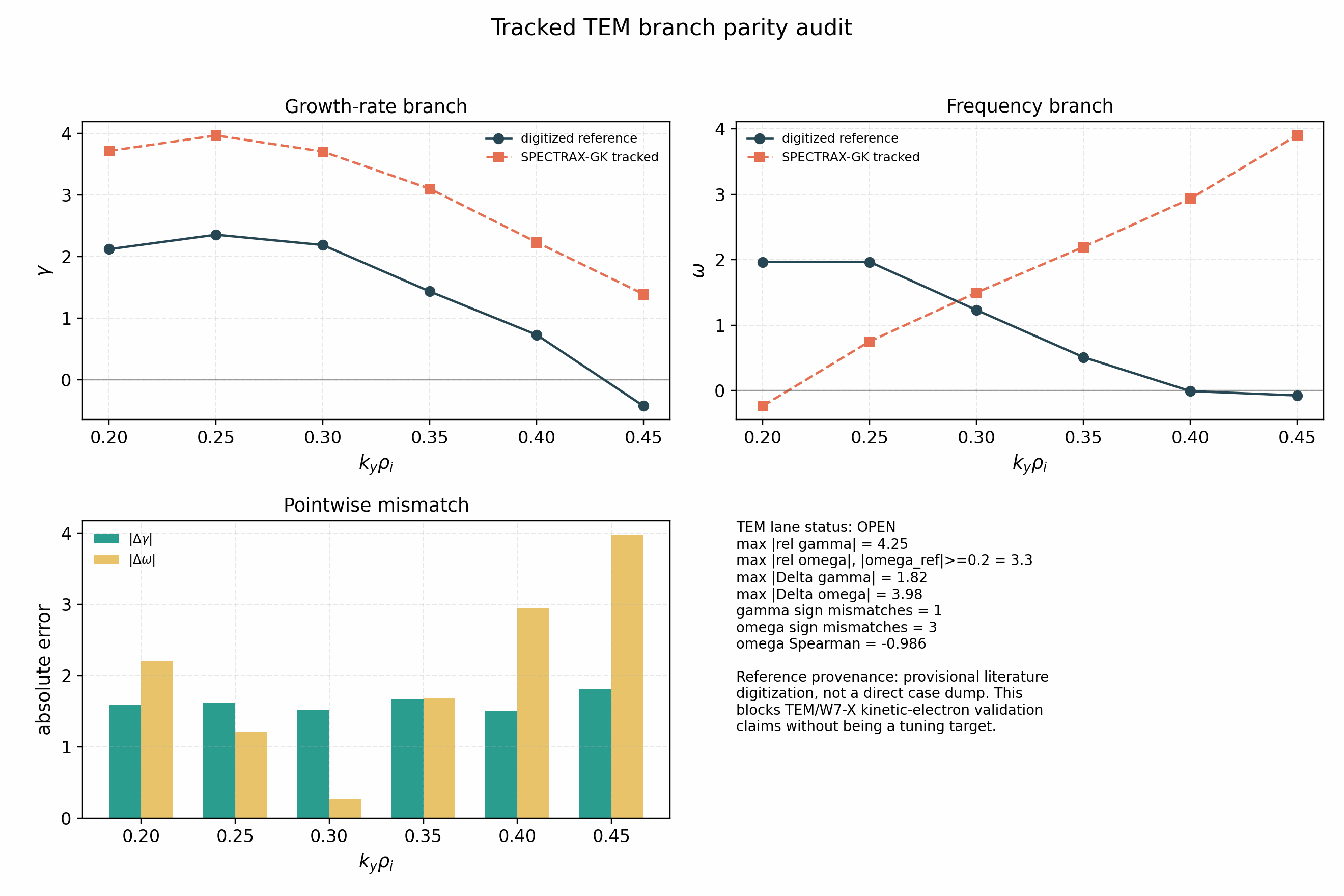

TEM branch parity audit

Executable TEM branch audit. The growth-rate and frequency branches fail simultaneously, with the frequency branch ordered oppositely to the digitized reference over the tracked low-k_y interval.

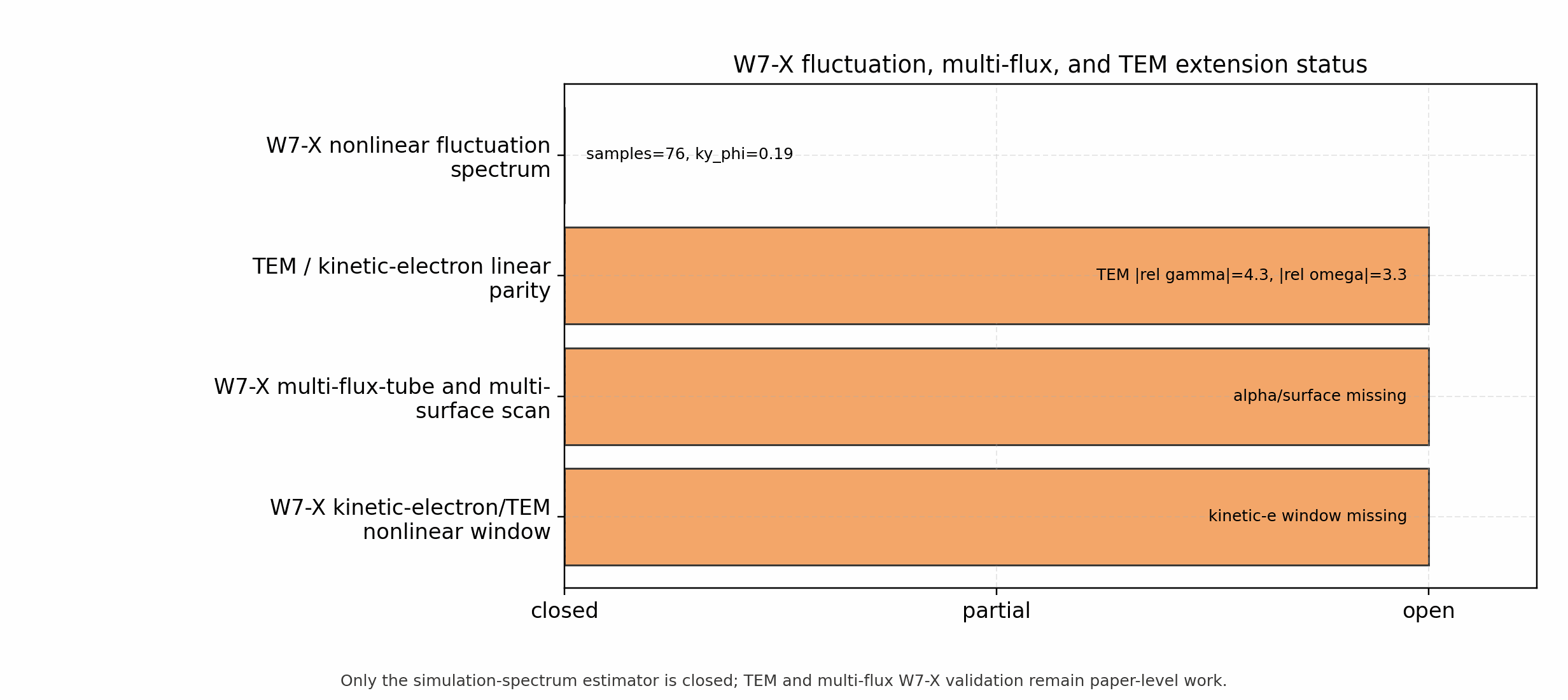

W7-X fluctuation/TEM extension validation status

Executable status of the W7-X fluctuation/TEM extension lane. The released simulation-spectrum diagnostic is closed, but TEM linear parity, alpha/surface-resolved W7-X scans, and kinetic-electron nonlinear windows remain open before broad W7-X/TEM validation claims.

Linear physics checks

Before nonlinear validation, we exercise linear physics checks grounded in published benchmarks and trend tests:

  • ITG/Cyclone base case: reproduce the standard Cyclone base case growth rates and frequencies across a reduced ky scan. [Dimits00] [Lin99]

  • GX term-by-term audit: use the term-dump tooling to compare SPECTRAX-GK streaming and linear-kernel RHS components against GX for a single Cyclone state (see tools/dump_rhs_terms.py and tools/compare_gx_rhs_terms.py).

  • GX nonlinear term audit (KBM/Cyclone): compare nonlinear derivative, bracket, electromagnetic split, and total RHS dumps using tools/compare_gx_nonlinear_terms.py. The tool supports GX dump folders with nl_apar.bin/nl_bpar.bin and can infer shape metadata when rhs_terms_shape.txt is absent.

  • ETG linear instability: verify that growth rates remain positive across reduced electron-scale gradients and that the real frequency follows the electron diamagnetic direction. [Dorland00] [Jenko00]

  • KBM beta scan: verify the transition between ITG-like and KBM branches in a fixed-\(k_y\) beta sweep against the tracked benchmark reference and exact-diagnostic audits.

Running tests

pytest

Benchmark reproducibility stack

The public CI and the tracked benchmark atlas are currently validated against a tested numerical stack:

  • jax>=0.8,<0.9

  • jaxlib>=0.8,<0.9

  • numpy>=2.3,<2.4

  • diffrax>=0.7,<0.8

  • equinox>=0.13,<0.14

This is not a claim that newer releases are unsupported. It is a statement about benchmark reproducibility. Near-marginal or branch-sensitive lanes such as TEM, ETG runtime scans, and some imported-linear stellarator cases can move materially under newer JAX/NumPy combinations even when the code still runs. When investigating parity regressions, reproduce the issue on the tested stack first before changing solver logic. For runtime-example parity reproduction across recent precision-policy changes, also set JAX_ENABLE_X64=1. Default precision can be faster while still moving parity-sensitive linear example outputs.

Stress-matrix parity gates

In addition to unit/regression tests, SPECTRAX-GK includes a small set of “stress-matrix” gates meant to catch parity regressions early (before tracked benchmark figures move):

  • Restart parity: tests/test_restart_gate.py verifies that a nonlinear run resumed from a compatible restart reproduces the same final state as a continuous run. This now covers both the raw binary state path and the nonlinear *.restart.nc bundle path, together with append-on-restart history preservation in *.out.nc.

  • CPU/GPU short-window parity (optional): tests/test_device_parity_gate.py compares a short nonlinear trajectory norm on CPU vs GPU. Enable explicitly:

    SPECTRAXGK_DEVICE_PARITY=1 pytest -q tests/test_device_parity_gate.py

  • VMEC roundtrip determinism (optional): tests/test_vmec_roundtrip_gate.py regenerates an *.eik.nc from a provided VMEC file twice and asserts the imported geometry arrays are bitwise identical. Enable explicitly:

    SPECTRAXGK_VMEC_FILE=/path/to/wout.nc pytest -q tests/test_vmec_roundtrip_gate.py

For developer workflows that require local reference benchmark NetCDFs or dump artifacts, use:

  • tools/run_gx_linear_stress_matrix.py (KAW, Cyclone kinetic electrons, KBM Miller)

  • tools/run_imported_linear_targeted_audit.py (generic per-ky targeted imported-linear wrapper)

  • tools/compare_gx_imported_window.py (exact imported-linear one-window replay against reference diag_state dumps)

  • tools/run_kbm_lowky_extractor_audit.py (direct cached-trajectory KBM low-ky extractor audit)

  • tools/run_exact_state_audit.py (manifest-driven wrapper around the exact-state audit tools)

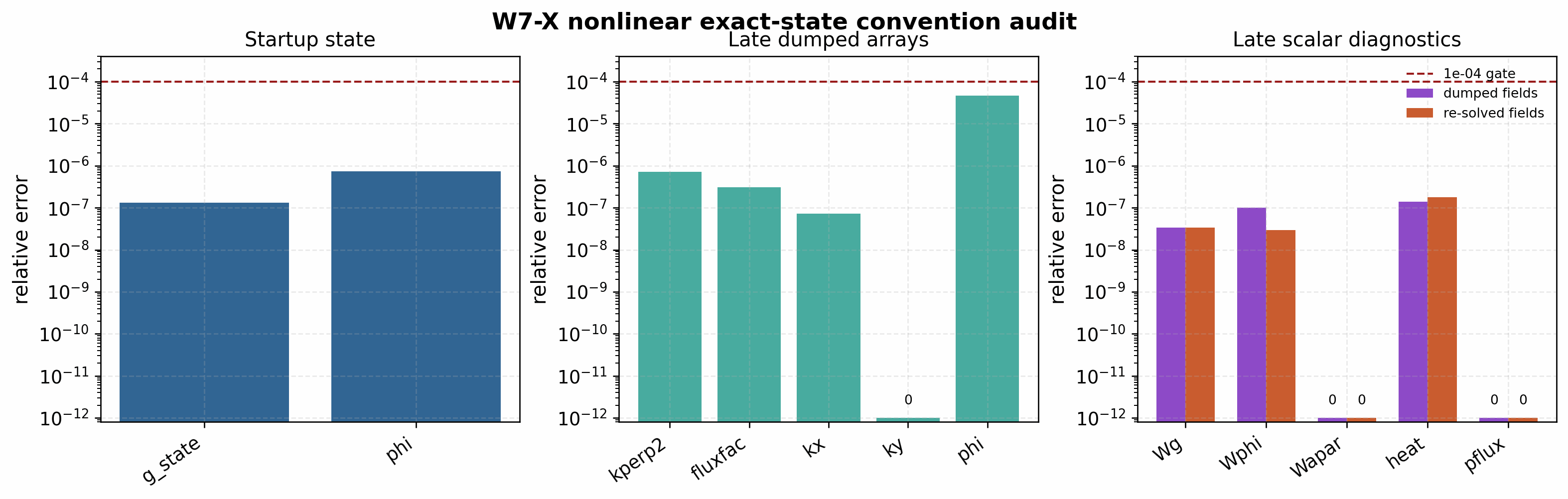

  • tools/plot_w7x_exact_state_audit.py (no-rerun W7-X exact-state convention audit panel)

  • tools/run_restart_parity_gate.py (manifest-driven nonlinear restart/continuation parity gate)

  • tools/run_device_parity_gate.py (manifest-driven CPU/GPU short-window parity gate)

  • tools/run_vmec_roundtrip_gate.py (manifest-driven VMEC vmec -> eik.nc determinism gate)

The current full-GK nonlinear ETG lane is now explicitly tracked as a pilot runtime contract via examples/nonlinear/axisymmetric/runtime_etg_nonlinear.toml. That lane is separate from the reduced cETG solver and should be used for future GX-backed nonlinear ETG parity work.

For ETG nonlinear audit runs, use dense short-window overrides first:

JAX_ENABLE_X64=1 spectrax-gk examples/nonlinear/axisymmetric/runtime_etg_nonlinear.toml \
  --steps 10 \
  --sample-stride 1 \
  --diagnostics-stride 1

This lane is currently expensive enough that short persisted windows are the right first diagnostic step before attempting long production horizons.

The ETG short-window startup mismatch was traced to the GX input contract, not the nonlinear ETG operator. GX reads init_single from [Expert] rather than [Initialization], so the audited GX pilot was actually using the Gaussian startup branch. The shipped runtime ETG pilot now matches that contract with gaussian_init = true, init_single = false, Lx = 1.25, and GX-style kz hypercollisions. On the matched Nx=10, Ny=22, ntheta=16, Nl=4, Nm=4, dt=1e-4, t_max=0.001 pilot, the refreshed short-window comparison lands at mean_rel_abs(Wg) ~= 1.31e-2 and mean_rel_abs(Wphi) ~= 5.18e-3, with the final heat-flux point within a few percent of GX.

The targeted imported-linear wrapper and the underlying compare_gx_imported_linear.py comparator now support two important controls for honest stress-lane scoring without changing the default full-window behavior:

  • --sample-step-stride: subsample the saved diagnostic sample indices before scoring.

  • --max-samples: truncate scoring to the first N selected samples.

The lower-level comparator also supports --cache-dir plus --reuse-cache to persist per-ky trajectory/result arrays (gamma, omega, Wg, Wphi, Wapar) as compressed .npz files keyed by the actual reference file, geometry file, reference input, selected ky, Hermite/Laguerre resolution, mode selector, and sample-window contract. This makes the stress-lane tooling incremental instead of rerunning a full lane every time. It now also writes absolute diagnostic-error columns and the reference |gamma| / |omega| scales alongside the relative metrics. That matters for near-marginal imported-linear stellarator lanes such as HSX, where mean_rel_gamma can look large simply because the reference growth rate is close to zero even while the absolute growth-rate mismatch and the field-energy diagnostics remain small.

For VMEC-backed exact-state audits, the runtime bridge now prefers a local booz_xform_jax checkout and injects a temporary booz_xform compatibility shim only into the external geometry-helper subprocess. This preserves the audited reference workflow while avoiding a host-level dependency on the original booz_xform Python package.

The bridge auto-discovers booz_xform_jax from BOOZ_XFORM_JAX_PATH / SPECTRAX_BOOZ_XFORM_JAX_PATH or from a checkout placed next to the SPECTRAX-GK workspace. When a specific Python environment is needed for the helper subprocesses, set geometry.gx_python in the runtime TOML. On office, the normal audited path is:

export BOOZ_XFORM_JAX_PATH=/path/to/booz_xform_jax
export SPECTRAX_VENV_PYTHON=/path/to/venv/bin/python
export SPECTRAX_OFFICE_ROOT=/path/to/SPECTRAX-GK
W7X_VMEC_FILE=/path/to/wout_w7x.nc \
HSX_VMEC_FILE=/path/to/wout_HSX_QHS_vac.nc \
"$SPECTRAX_VENV_PYTHON" tools/run_exact_state_audit.py \
  --manifest tools/exact_state_lanes.office.toml \
  --outdir tools_out/exact_state_audit_office

The tracked office manifest now pins these audit lanes to JAX_PLATFORMS=cpu. These are parity/reference jobs, not performance runs, and CPU pinning avoids spurious GPU RESOURCE_EXHAUSTED failures when booz_xform_jax or grid-default assembly would otherwise grab a busy device.

The restart/continuation gate uses the same environment model and should be run against the tracked nonlinear lanes with PYTHONPATH set to the source tree so the office venv does not pick up a stale installed package:

PYTHONPATH="$SPECTRAX_OFFICE_ROOT/src" \
"$SPECTRAX_VENV_PYTHON" tools/run_restart_parity_gate.py \
  --manifest tools/restart_gate_lanes.office.toml \
  --outdir tools_out/restart_parity_office

The current office exact-state manifest now includes:

  • startup audits for Cyclone, KBM, W7-X, and HSX

  • late dumped-state audits for Cyclone Miller, Cyclone runtime, W7-X, and KBM

The tracked W7-X exact-state convention panel is generated by tools/plot_w7x_exact_state_audit.py from the office W7-X startup and late diagnostic-state dumps. It closes the VMEC geometry, Fourier-grid, fieldsolve, and scalar-diagnostic convention layer against GX with a 1e-4 pointwise relative-error gate: startup g_state/phi are below 7.4e-7, late kperp2/fluxfac/kx/ky/phi arrays have maximum finite relative error 4.62e-5 with phi RMS relative error 3.77e-7, and late scalar diagnostics are below 1.8e-7. This panel is not a replacement for the open W7-X zonal-response literature lane; it rules out the geometry/diagnostic convention layer as the source of that separate recurrence/damping-envelope mismatch.

W7-X nonlinear exact-state convention audit against GX

W7-X nonlinear exact-state convention audit. Startup state, late dumped geometry/field arrays, and re-evaluated scalar diagnostics are compared directly against GX dumps from the same VMEC equilibrium and nonlinear runtime contract.

For KBM specifically, the startup audit, late dumped-state audit, nonlinear term replay, and first RK4 partial-step replay now all close on the shipped nonlinear config for the current release pass. The remaining KBM work is therefore future long-window cleanup rather than a blocking startup-state, diagnostic-reconstruction, or first-step assembly mismatch.

The device-parity gate now has audited office manifests for one tokamak and one stellarator lane, both requiring stable nonzero outputs rather than the older zero-norm smoke probe:

PYTHONPATH="$SPECTRAX_OFFICE_ROOT/src" \
"$SPECTRAX_VENV_PYTHON" tools/run_device_parity_gate.py \
  --manifest tools/device_parity_lanes.office.toml \
  --outdir tools_out/device_parity_office

The VMEC roundtrip gate uses the same manifest pattern and currently covers the tracked W7-X and HSX VMEC lanes:

PYTHONPATH="$SPECTRAX_OFFICE_ROOT/src" \
"$SPECTRAX_VENV_PYTHON" tools/run_vmec_roundtrip_gate.py \
  --manifest tools/vmec_roundtrip_lanes.office.toml \
  --outdir tools_out/vmec_roundtrip_office

If the helper must be forced to another interpreter, set geometry.gx_python in the runtime TOML used by the audit and rerun the same command. The old environment-variable override is no longer documented because the preferred path is the internal booz_xform_jax backend.

CI split: fast PR vs manual full

CI is split into two tiers to keep pull requests fast while preserving full physics rigor:

  • Fast PR/push tier: the quick-test matrix runs mypy and targeted test subsets across fundamentals, release artifacts, linear core, runtime, nonlinear, and parallel/autodiff contracts. This catches solver and dtype regressions quickly.

  • Wide coverage tier: CI runs the 48 top-level coverage shards as a matrix, uploads the per-shard coverage.py data, then combines the artifacts in one final wide-coverage check that enforces the package-wide >=95% target. The same helper, tools/run_wide_coverage_gate.py, is used locally and in CI so the threshold is not weakened when the job is parallelized. Each shard has its own timeout so a single slow validation slice cannot become an unbounded release job. The combine step also requires labeled coverage data for every CI shard and writes coverage-wide-shard-manifest.json before refreshing the package-wide Codecov flag. Optional VMEC/Boozer artifact builders remain validated by their tracked offline artifact gates and mocked CI contracts, not by importing unavailable external repositories in the public coverage job.

  • Manual full tier: full pytest suite plus strict coverage gates: spectraxgk.terms >= 90% and per-module core gates for linear_krylov.py and diffrax_integrators.py.

This keeps iteration latency low for development and still enforces complete coverage and regression checks on demand without relying on scheduled runners.

For bounded local feedback, use the per-file runner:

python tools/run_tests_fast.py

It enforces both a per-file timeout and a whole-run timeout of 300 seconds by default, then reports any remaining files as not_run(total_timeout) instead of leaving orphaned pytest children. Use --total-timeout 0 only for an explicit full sequential local pass.

The same wide gate can be run locally in one process with:

python tools/run_wide_coverage_gate.py \
  --shards 48 \
  --timeout 300 \
  --fail-under 95 \
  --pytest-arg=-o \
  --pytest-arg=addopts= \
  --pytest-arg=-m \
  --pytest-arg="not slow"

On local machines where every pytest process must stay below the five-minute release timeout, run one shard at a time and combine afterward. This is the same data-flow used by CI, except CI runs the --only-shard jobs in parallel and downloads the resulting coverage artifacts before the --combine-only gate:

python -m coverage erase
for shard in $(seq 1 48); do
  python tools/run_wide_coverage_gate.py \
    --shards 48 \
    --timeout 300 \
    --only-shard "${shard}" \
    --keep-existing-coverage \
    --skip-combine \
    --pytest-arg=-o \
    --pytest-arg=addopts= \
    --pytest-arg=-m \
    --pytest-arg="not slow"
done
python tools/run_wide_coverage_gate.py \
  --shards 48 \
  --combine-only \
  --fail-under 95 \
  --pytest-arg=-o \
  --pytest-arg=addopts= \
  --pytest-arg=-m \
  --pytest-arg="not slow"

Core modular coverage gate

To keep the modular RHS path future-proof, CI also enforces a dedicated coverage gate for spectraxgk.terms:

pytest -q tests/test_terms_assembly.py \
       tests/test_terms_operators.py \
       tests/test_terms_fields.py \
       tests/test_terms_integrators.py \
       tests/test_terms_validation.py \
       --maxfail=1 --disable-warnings \
       --cov=src/spectraxgk/terms \
       --cov-fail-under=90

This guard ensures term-wise kernels, field solves, custom-VJP behavior, and assembly plumbing stay highly covered while the rest of the benchmark and cross-code harness keeps evolving.

Core solver coverage gates

CI also enforces dedicated per-module thresholds for the two linear solver engines that are most likely to regress during algorithm work:

  • spectraxgk.linear_krylov (matrix-free Arnoldi/shift-invert path)

  • spectraxgk.diffrax_integrators (explicit/IMEX/implicit diffrax path)

The gate runs focused tests and checks each module from coverage-core.xml:

pytest -q tests/test_linear_krylov_core.py \
       tests/test_diffrax_integrators.py \
       tests/test_diffrax_integrators_core.py \
       --maxfail=1 --disable-warnings \
       --cov=src/spectraxgk \
       --cov-report=xml:coverage-core.xml

Both modules are required to stay at or above 90% line coverage in CI.
