Benchmarks

SPECTRAX-GK’s benchmark figures are organized as a compact atlas instead of a case-by-case gallery. The layout follows the standard gyrokinetic comparison pattern:

• linear growth-rate and real-frequency overlays versus k_y (or beta),

• nonlinear time traces of heat flux, free energy, electrostatic field energy, and magnetic field energy when present,

• compact panels that separate exact diagnostic closures from broader stress lanes.

The figures in this page are generated directly from tracked CSV assets and curated comparison traces in docs/_static.

Figure generation

Regenerate the atlas figures with:

python tools/make_benchmark_atlas.py

The atlas builder now reads its inputs from tools/benchmark_atlas_manifest.toml and writes a machine-readable summary to tools_out/benchmark_atlas_summary.json so the panel provenance stays explicit. Future velocity-space convergence panels should use the same JSON-ready gate-report convention before they are promoted into the publication stack.

This produces the tracked atlas panels:

• docs/_static/benchmark_core_linear_atlas.png

• docs/_static/benchmark_core_nonlinear_atlas.png

• docs/_static/benchmark_readme_panel.png

• docs/_static/benchmark_extended_linear_panel.png

PDF copies are emitted alongside each PNG for manuscript workflows.

Fresh-run refresh workflow

The tracked atlas is now paired with a refresh manifest:

python tools/run_benchmark_refresh.py --list

The refresh runner executes the benchmark matrix in manifest order from tools/benchmark_refresh_manifest.toml and writes a summary to tools_out/benchmark_refresh_summary.json. Jobs that depend on reference data declare explicit environment-variable requirements for their argument bundles, so the refresh pipeline can be rerun without editing the Python scripts themselves.

The VMEC-backed imported-linear refresh jobs are intentionally pinned to JAX_PLATFORMS=cpu in the manifest. That keeps the refresh workflow stable on shared machines such as office where the geometry helper stack can otherwise fail with GPU out-of-memory errors that are unrelated to parity.

Example:

python tools/run_benchmark_refresh.py --job cyclone-core-assets --job benchmark-atlas

Tracked benchmark metrics

The benchmark atlas uses the same small set of physically interpretable metrics throughout:

• growth rate gamma

• real frequency omega

• ion heat flux

• free energy

• electrostatic field energy (legacy variable name Wphi)

• magnetic field energy when A_parallel or B_parallel are active

At the README level, these metrics are intentionally packed into one compact publication panel plus one separate runtime/memory panel. The atlas therefore answers two questions:

• which branches and diagnostics are being tracked for validation,

• which shipped cases have measured CPU/GPU/runtime-memory coverage.

Primary publication set

The headline validation set is limited to the full-gyrokinetic lanes that are already used in the current validation and regression workflow:

• Cyclone ITG linear and nonlinear

• KBM linear and nonlinear

• W7-X VMEC linear and nonlinear

• HSX VMEC linear and nonlinear

• Cyclone Miller geometry linear and nonlinear

The README atlas also includes one extended linear strip for exploratory or stress lanes that are still useful to show publicly without folding them into the primary validation claim:

• Cyclone kinetic electrons

• TEM

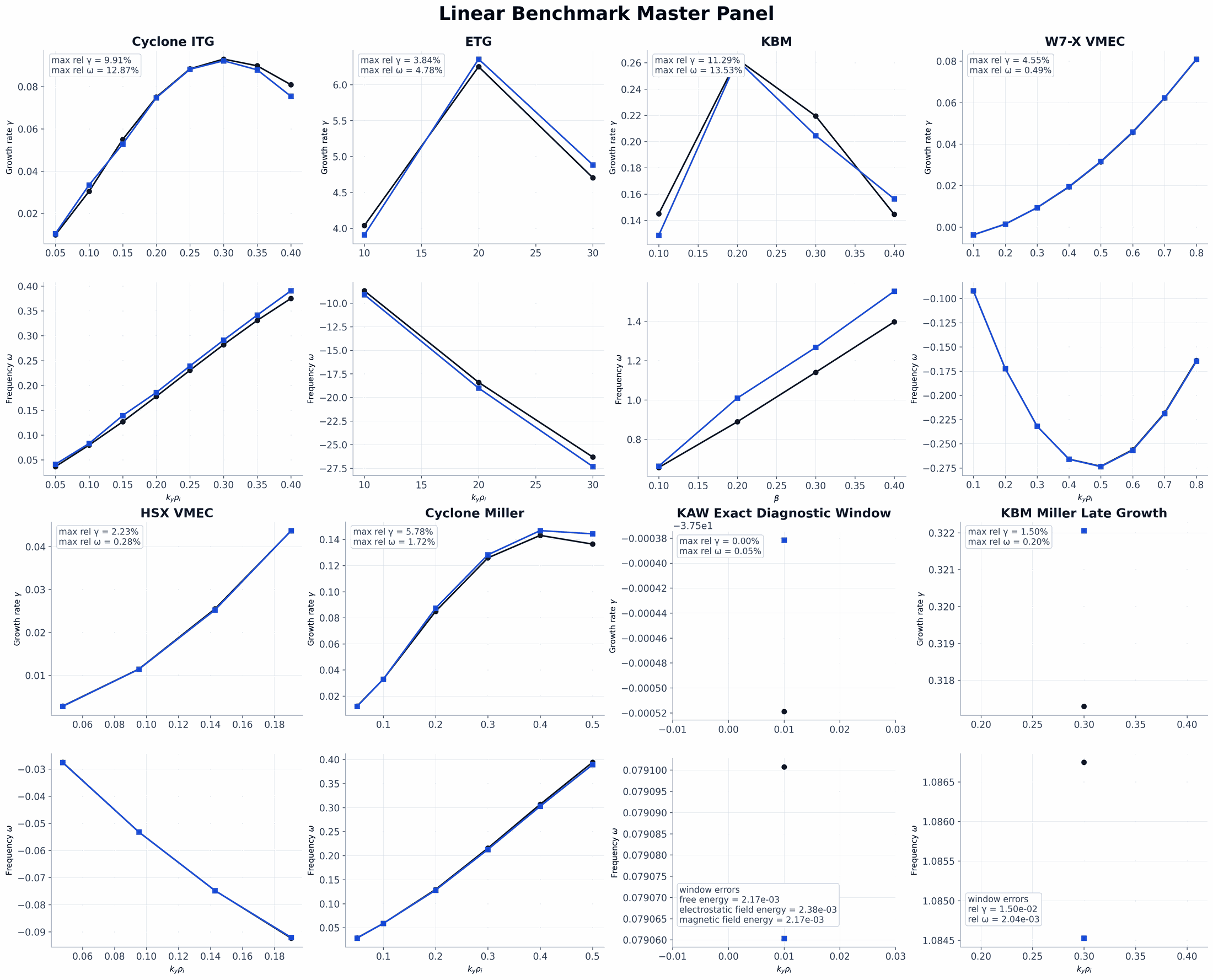

Linear benchmark master panel. This panel keeps the headline linear coverage on one page: Cyclone ITG, ETG, KBM, W7-X, HSX, Cyclone Miller, KAW, and the KBM Miller late-growth replay.

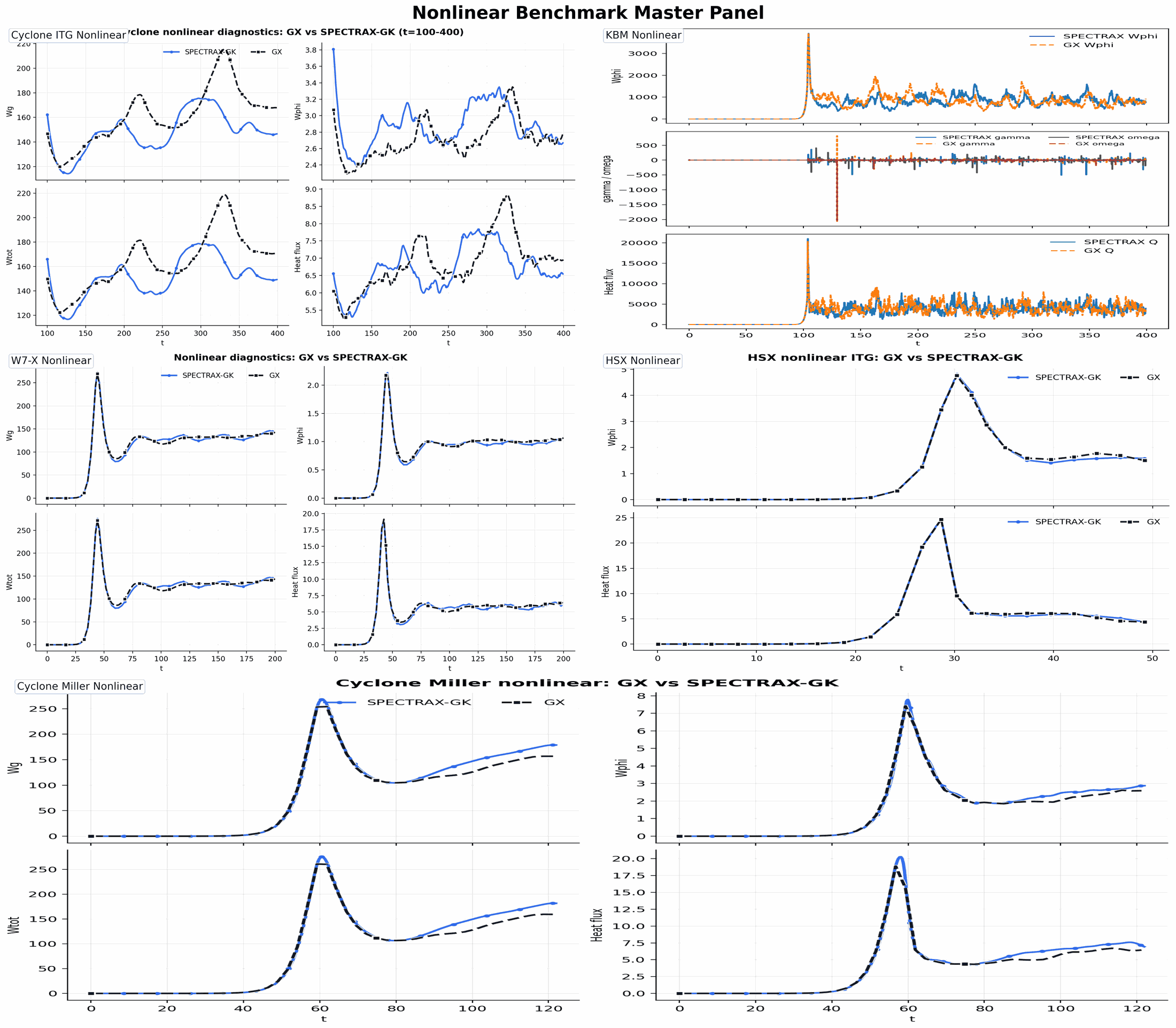

Nonlinear benchmark master panel. This panel groups the tracked nonlinear overlays used in the public benchmark set: Cyclone, KBM, W7-X, HSX, and Cyclone Miller.

For the current release pass, Cyclone, KBM, W7-X, HSX, and Cyclone Miller are treated as the acceptable nonlinear validation set in the main atlas. The short-window full-GK ETG pilot remains documented in the examples and testing notes, but it is intentionally kept out of the primary publication panel because it is a pilot rather than a headline transport benchmark. TEM and KAW are intentionally kept out of the active parity claim until their separate recovery work is finished.

The global release claim boundary is summarized in Release Scope and Claim Boundaries. Use that page when deciding whether a benchmark panel supports a README, release note, or manuscript claim.

Interpretation of validation

The atlas intentionally mixes two classes of evidence:

• broad benchmark overlays over scanned parameters such as k_y or beta,

• exact-window or exact-diagnostic closures on selected lanes.

Only the exact-window closures should be read as strict small-tolerance validation gates. In the current tracked set those are:

• KAW exact diagnostic window

• KBM Miller late-growth replay

The broader scanned benchmark panels are coverage figures, not universal rtol <= 3e-2 claims for every tile. They remain valuable because they show which branches and diagnostics are being tracked across the codebase.

Benchmark-specific replay knobs used to regenerate these figures stay confined to the benchmark builders in tools/. They are not promoted into generic runtime defaults for the solver or the shipped example drivers.

Benchmark runner internals

The public compatibility surface remains spectraxgk.benchmarks. Shared scan policies that are easy to test without launching a solver live in spectraxgk.benchmark_scan: fit-signal key validation, mode-only extraction coercion, explicit-window fallback, and fixed-shape k_y batching eligibility. The runner module imports those policies so Cyclone, ETG, kinetic-electron, TEM, and KBM scans keep the same window and ordering contracts without carrying separate copies of the policy code.

For the current stellarator nonlinear pair, the tracked public figures should also be read asymmetrically:

• HSX nonlinear is currently acceptable on the best validated t <= 50 trace and remains part of the public benchmark set.

• W7-X nonlinear is currently acceptable on the refreshed t <= 200 trace and remains part of the public benchmark set. It should still be read as a long-window benchmark closure rather than a universal small-tolerance claim for every late-time sample.

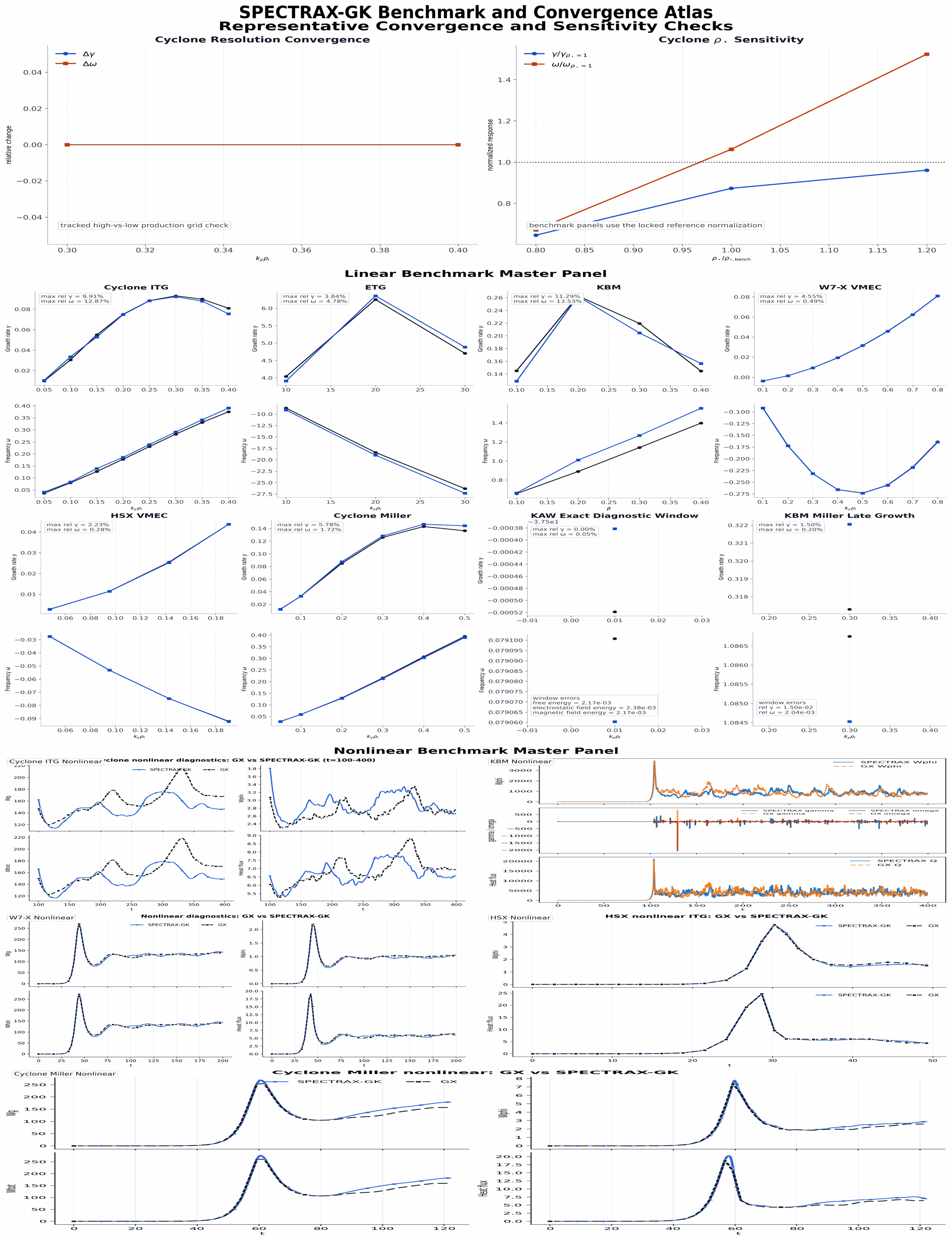

README summary panel

Publication-facing benchmark summary. The shipped summary/publication stack now includes the closed short-window full-GK ETG nonlinear pilot alongside the tokamak and stellarator headline lanes, while the top-level README atlas remains compact with one validation image and one separate runtime/memory image.

Supplementary closure figures

Some parity lanes are tracked as supplementary closure artifacts rather than as headline atlas tiles. Current examples include:

• docs/_static/nonlinear_cyclone_short_resolved_audit_t5.png for the corrected short nonlinear Cyclone replay, which now uses the explicit short-reference dissipation contract and localizes the remaining mismatch in resolved k_y field-energy diagnostics.

• docs/_static/secondary_gx_out_compare.csv for the refreshed secondary stage-2 mode table built from the dense kh01a GX replay.

• docs/_static/nonlinear_w7x_diag_compare_t200.png, docs/_static/hsx_nonlinear_compare_t50_true.png, and docs/_static/nonlinear_kbm_diag_compare_t100_refresh.png for the refreshed long-window nonlinear publication figures.

• docs/_static/etg_fullgk_pilot_compare_dt1e4_gaussian_match.png for the closed short-window full-GK ETG nonlinear pilot that now appears in the shipped summary/publication panels.

• docs/_static/kbm_eigenfunction_overlap_summary.png for the current eigenfunction-overlap summary on the tracked KBM GX candidate table. This is the first compact overlap artifact in the manuscript-facing stack and should be read as a branch-identity diagnostic. The raw mode-shape overlays are now tracked separately as docs/_static/kbm_eigenfunction_reference_overlay_ky0p3000.png and docs/_static/w7x_eigenfunction_reference_overlay_ky0p3000.png with JSON gate reports under docs/_static/reference_modes/.

Extended stress matrix

Not every benchmark lane belongs in the headline validation claim. The extended linear stress matrix keeps exploratory or still-evolving lanes visible without mixing them into the primary publication set.

The current extended panel covers:

• Cyclone kinetic electrons

• TEM (literature-backed stress lane)

• KBM Miller exact late growth window

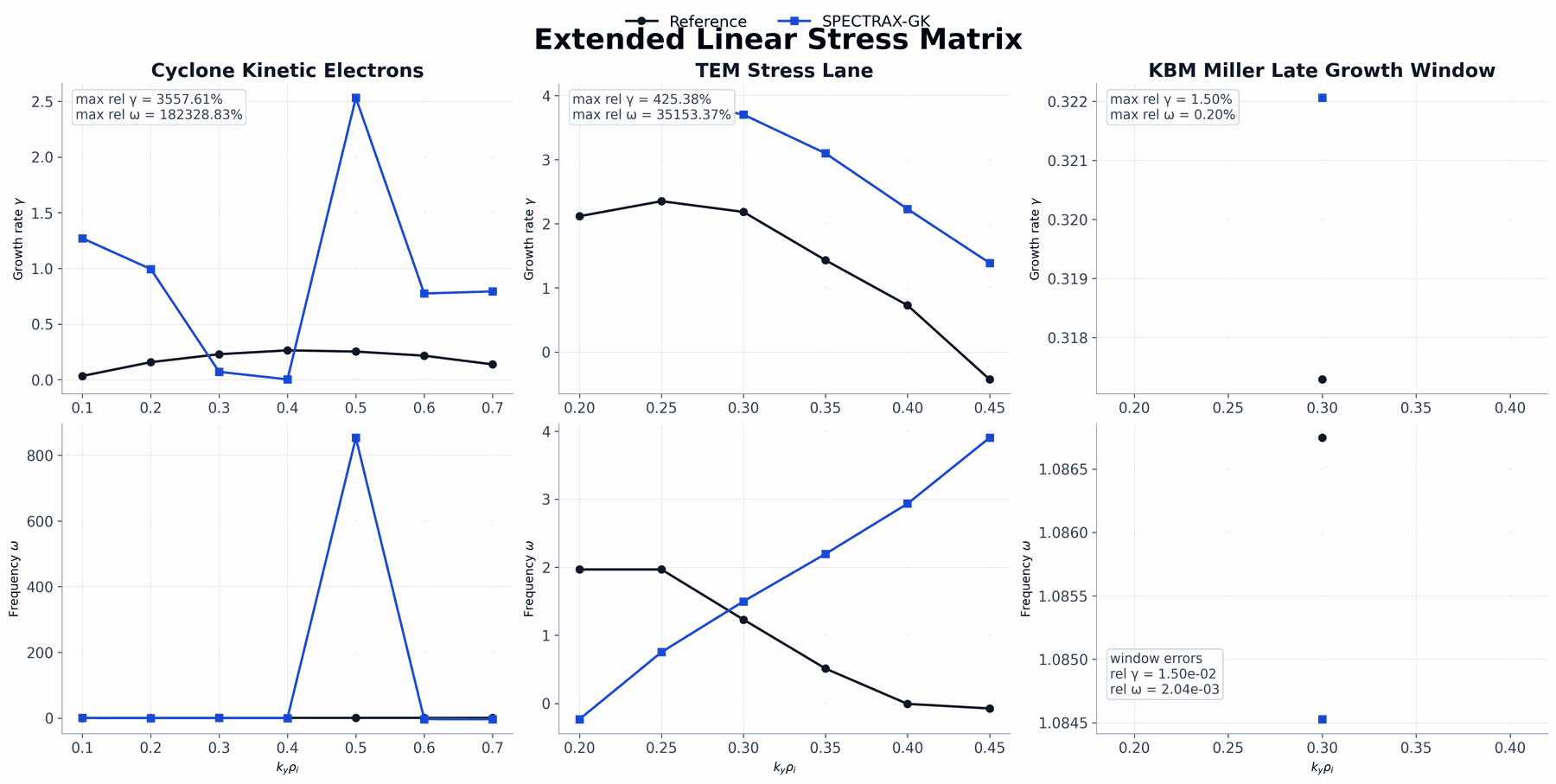

Extended linear stress matrix. These lanes remain visible for solver stress testing, but they are intentionally separated from the main publication panel.

The TEM row is provisional. The shipped tem_reference.csv is digitized from the literature rather than sourced from a GX benchmark dump, and the exact case definition behind that digitized curve is still being reassembled. It should be read as a tracked stress lane, not as a closed parity result. The executable audit docs/_static/tem_branch_parity_audit.{png,pdf,json,csv} records the open branch mismatch explicitly: maximum absolute relative growth-rate mismatch 4.25, maximum absolute relative frequency mismatch 3.3 after excluding the near-zero reference denominator, one growth-rate sign mismatch, three frequency sign mismatches, and a frequency-branch Spearman coefficient near -0.986.

Case groups

Tokamak core cases

• Cyclone ITG: linear gamma/omega scans and nonlinear transport traces

• KBM: linear branch-following scans and nonlinear transport traces

• Cyclone Miller geometry: imported linear scan and nonlinear time-trace audit

Stellarator core cases

• W7-X VMEC: short-window linear scans and nonlinear transport traces

• HSX VMEC: short-window linear scans and nonlinear transport traces

Reduced and stress cases

• ETG: linear benchmark overlays

• KAW: exact late-time diagnostic reconstruction and exact-window energy audit

• KBM Miller: exact late-time growth replay on the tracked low-k_y branch

• Cyclone kinetic electrons: extended linear stress lane

• TEM: extended linear stress lane

Notes on interpretation

The atlas is split deliberately. The README stays limited to a compact publication panel, while this page keeps the larger linear, nonlinear, and stress figures visible without claiming that every scanned point is an exact closure.
