Roadmap

SPECTRAX-GK is being developed as a research-grade, JAX-native gyrokinetic solver: accurate against independent benchmarks, differentiable end to end, fast enough for scoped production studies, and simple enough for researchers to run, test, and extend.

Current target

The active milestone is not just “more features”. The release target is a validated codebase with:

• documented install, run, plot, and artifact workflows;

• literature-anchored physics gates for linear, nonlinear, response-function, geometry, and autodiff examples;

• measured cold-start, warm-runtime, memory, and parallelization behavior;

• CI gates that cover unit tests, regression tests, docs, packaging, and selected validation artifacts;

• clear module boundaries so equations, numerics, runtime I/O, plotting, and benchmark policy can be tested independently.

The roadmap is not itself a claim ledger. Use Release Scope and Claim Boundaries for the current artifact-backed boundary between release-ready, deferred, and explicitly unpromoted claims.

Pre-release scope

The pre-release lane is limited to work that can be bounded, tested, and documented without changing the physics claim surface:

• keep the refreshed runtime/memory panel complete for Cyclone, Cyclone Miller, KBM, W7-X, and HSX release rows;

• tighten case-specific nonlinear window-statistics gates where the frozen reference windows support it;

• strengthen autodiff validation with finite-difference checks, sensitivity map conditioning, and UQ covariance metadata;

• add the Phase-A vmec_jax / booz_xform_jax bridge contract into the existing sampled flux-tube geometry interface;

• land production parallelization first for independent k_y scans and UQ ensembles, with serial numerical-identity gates. The first closed artifact is docs/_static/parallel_ky_scan_gate.png from tools/generate_parallel_ky_scan_gate.py;

• keep nonlinear hot-path optimization profiling-driven and tied to existing window-statistics and exact-state gates.

Current pre-release status snapshot:

• Release-ready technical lanes are those backed by tracked CI, documentation, refactor, parallelization, profiler, and guardrail artifacts; remaining manuscript physics lanes are tracked separately and must not be counted as shipped claims.

• runtime/memory and nonlinear atlas figures include W7-X and HSX release rows;

• the large runtime/diagnostics refactor has a release-engineering boundary: extracted startup/chunk/result/artifact helpers and validation-policy modules preserve public behavior, including restartable NetCDF append schema, but do not by themselves promote new physics or speedup claims;

• targeted nonlinear coverage now exercises explicit diagnostic branches, Hermitian projection, fixed-mode frequency extraction, IMEX nonlinear terms, and scalar/gyroaveraged electromagnetic bracket components;

• autodiff UQ validation includes finite-difference demo checks, closed-form Gauss-Newton covariance checks, rank-deficient sensitivity-map checks, and an explicit rejection path for empty parameter maps;

• solver-objective geometry-gradient validation now includes an actual electrostatic linear-RHS implicit-eigenpair gate for growth rate, real frequency, <k_perp^2>, linear heat/particle-flux weights, and a mixing-length heat-flux proxy with respect to solver-ready geometry arrays, plus a mode-21 full-chain vmec_jax state-coefficient to booz_xform_jax to SPECTRAX-GK eigenfrequency-gradient artifact at docs/_static/vmec_boozer_solver_frequency_gradient_gate.png and a matching quasilinear heat-flux-weight gradient artifact at docs/_static/vmec_boozer_quasilinear_gradient_gate.png, plus a bounded reduced nonlinear-window estimator-gradient artifacts for QH and Li383 at docs/_static/vmec_boozer_nonlinear_window_gradient_gate.png and docs/_static/vmec_boozer_li383_nonlinear_window_gradient_gate.png; the companion compact nonlinear startup-window finite-difference observable audit at docs/_static/nonlinear_window_fd_audit.png / .json closes only the startup-response plumbing and conditioning path; the companion VMEC/Boozer-perturbed nonlinear startup-window FD audit at docs/_static/vmec_boozer_nonlinear_window_fd_audit.png / .json starts from a real mode-21 vmec_jax -> booz_xform_jax state perturbation and closes the imported-geometry startup observable path while recording that the local forward/backward response is asymmetric. Both short FD artifacts explicitly keep their transport-average gates false; VMEC/Boozer nonlinear turbulence gradients, long post-transient running-average heat-flux windows, and optimized-equilibrium nonlinear audits remain promotion requirements;

• the Phase-A differentiable-geometry bridge is an in-memory sampled flux-tube contract with 100% targeted coverage, optional vmec_jax / booz_xform_jax discovery, tracer-safe mapping into FluxTubeGeometryData, real vmec_jax metric-tensor derivatives, a real non-axisymmetric VMEC field-line tensor derivative through vmec_jax.geom plus vmec_jax.vmec_bcovar, a direct VMEC tensor-derived flux-tube mapping derivative, a direct-VMEC-tensor vs imported-VMEC/EIK array-parity audit, a Boozer equal-arc core parity audit that closes the bmag/bgrad/gradpar/Jacobian, zero-beta gds*/grho metric convention, and zero-beta loaded drift convention at release tolerance, a separate mboz=nboz=21 QH/QI/tokamak parity matrix artifact at docs/_static/vmec_boozer_parity_matrix.png, a real vmec_jax VMECState to booz_xform_jax to SPECTRAX-GK derivative gate, and a tracked AD-vs-finite-difference inverse/UQ artifact at docs/_static/differentiable_geometry_bridge.png;

• the fixed-resolution QI row in the parity matrix is admitted only at mboz=nboz=21 after low-mode Boozer settings are rejected; after the Boozer half-mesh convention fix, the current regenerated artifact passes QI drift at about 7.13e-2 against the 8e-2 tolerance and the evaluated QI ntheta=8,16 variants pass. The full QI seed campaign remains artifact-limited by missing bundled wout references and is not broad QI transport validation, quasilinear calibration, or nonlinear optimization;

• production parallelization is currently claimed only for independent k_y/batch/quasilinear/sensitivity/UQ-style workloads, including the runtime scan [parallel] strategy = "batch" path for independent k_y scans. Solver-layout sharding paths remain diagnostic or communication-gated, not production nonlinear domain decomposition;

• release-level performance evidence is closed with the refreshed runtime/memory panel, CPU/GPU nonlinear RHS split profiles, fused full-RHS traces, W7-X/HSX runtime-mode stellarator profiles, and the nonlinear sharding identity gate. This supports bounded profiler claims only; broad production nonlinear speedup and nonlinear domain-decomposition claims remain future profiler-gated work.

Executable open-lane status

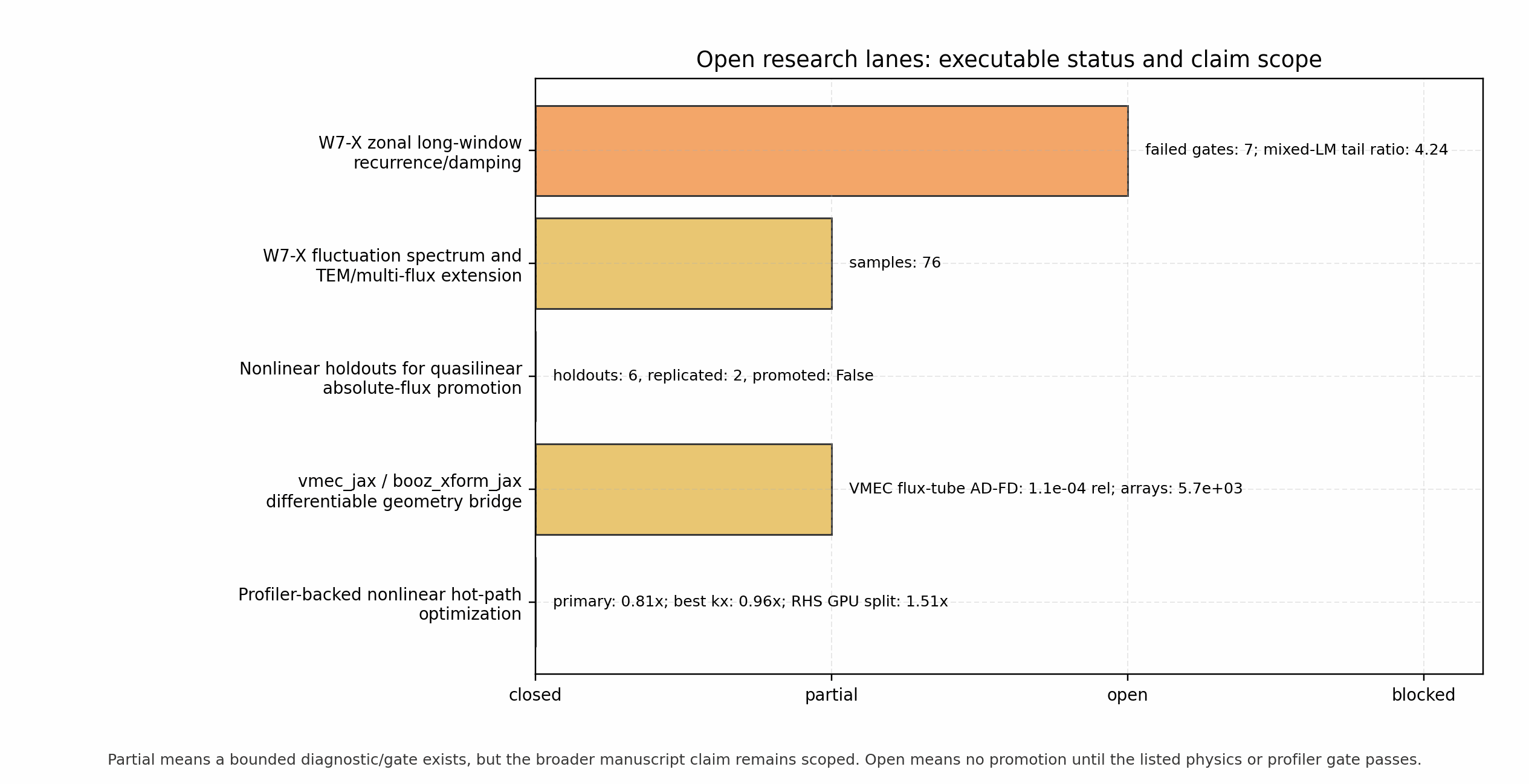

The active post-v1.5 research lanes are now summarized by tools/build_open_research_lane_status.py. The generated artifact is a claim-scope gate, not a substitute for the underlying physics figures. It reads the W7-X zonal, W7-X fluctuation-spectrum, quasilinear holdout, differentiable geometry, and nonlinear-profiler artifacts and reports whether each lane is closed, partial, open, or blocked.

In the broader research tracker, the current snapshot has two closed release/research-support lanes: nonlinear holdouts for the scoped quasilinear model-development claim and profiler-backed nonlinear hot-path localization. W7-X fluctuation/TEM and the broader differentiable-geometry bridge remain partial bounded diagnostics, while W7-X long-window zonal recurrence remains open. This keeps the README/docs claim surface honest while still preserving publication-ready diagnostic panels for the pieces that are already reproducible.

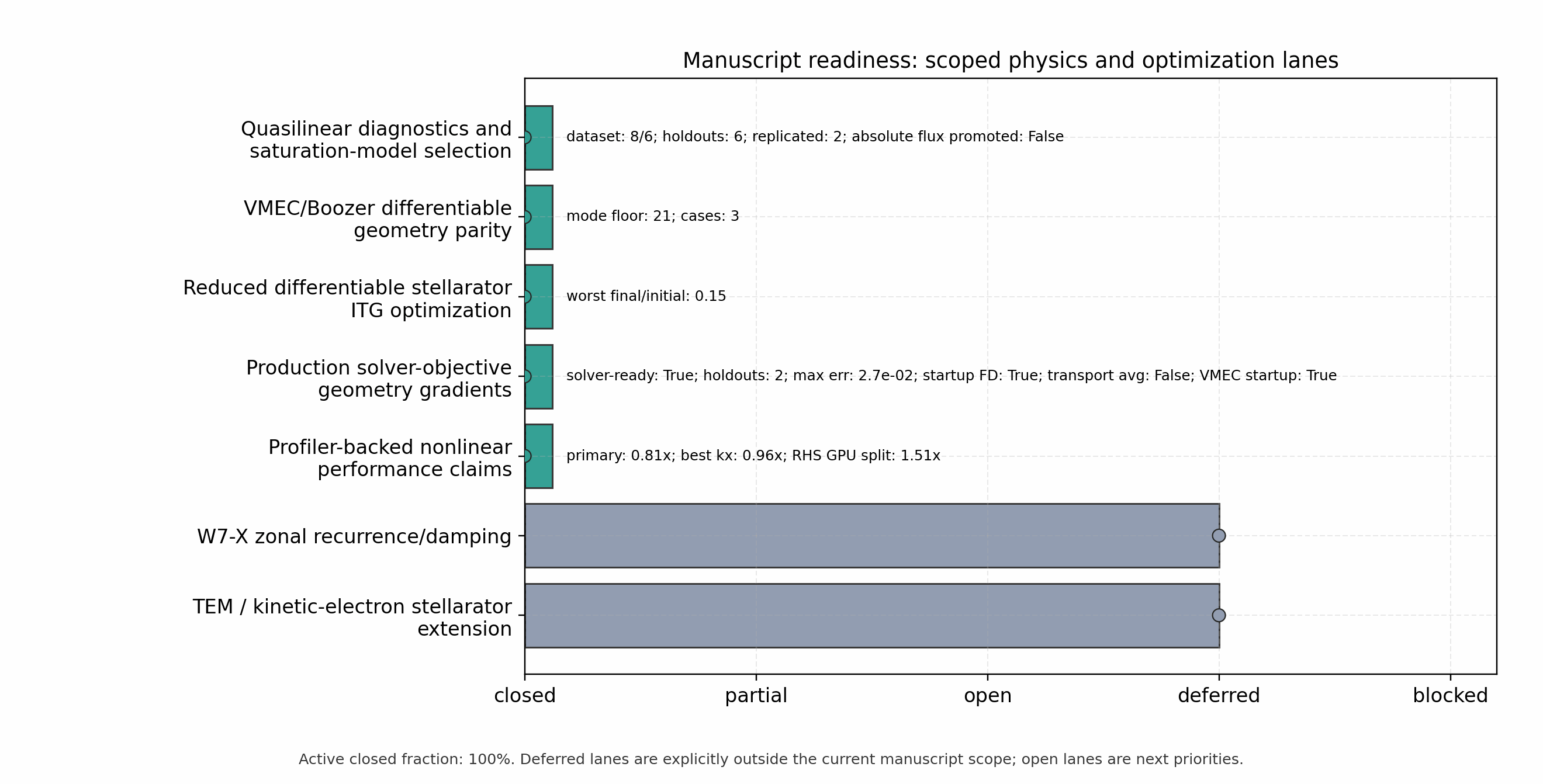

Current manuscript-scope readiness is tracked separately by tools/build_manuscript_readiness_status.py because W7-X zonal recurrence and TEM/kinetic-electron extensions are intentionally deferred from this manuscript. In that narrower scope, the quasilinear lane is closed as a validated diagnostic/model-selection result rather than as an absolute-flux predictor, VMEC/Boozer equal-arc geometry parity is closed for the current artifact-passing mboz=nboz=21 rows, including fixed-resolution QI after the half-mesh convention fix. The evaluated QI robustness variants pass, while the full QI seed campaign is artifact-limited by missing bundled wout files. The reduced differentiable stellarator ITG optimization examples are closed with AD/FD gates. The solver-objective geometry-gradient lane has passed actual linear-RHS gates at the solver-ready geometry contract plus mode-21 VMEC/Boozer state-to-solver eigenfrequency, quasilinear heat-flux-weight, and reduced nonlinear-window-estimator gates on QH and Li383 holdouts. Compact nonlinear startup-window finite-difference observable audits are tracked at docs/_static/nonlinear_window_fd_audit.png / .json and docs/_static/vmec_boozer_nonlinear_window_fd_audit.png / .json. These short artifacts validate plumbing only and explicitly are not heat-flux transport averages. The production guard at docs/_static/production_nonlinear_optimization_guard.png / .json records that D-shaped and circular long post-transient replicate ensembles now pass as holdout evidence, and the selected optimized QA equilibrium now has its own replicated t=[350,700] post-transient transport-window audit. A matched finite-transform no-ESS reference from the same VMEC-JAX campaign now also passes the same ensemble protocol, and the optimized QA/ESS equilibrium reduces the audited late-window heat flux by 18.4%. The remaining promotion step is production nonlinear turbulence-gradient evidence or broader matched baseline-to-optimized finite-difference audits with local-gradient conditioning and converged long post-transient running-average heat-flux windows. Those are required before claiming a production nonlinear heat-flux stellarator optimizer.

Before tagging, the latest public main CI run must pass repo hygiene, mypy, quick shards, docs/packaging, fast coverage, and the full wide-coverage matrix. The configured wide-coverage job enforces 95% package-wide coverage. Some individual modules can still sit below 95% because the gate is package-wide; notably nonlinear.py and zonal_validation.py remain useful targets for future targeted physics tests.

The latest W7-X zonal follow-up is docs/_static/w7x_zonal_hypercollision_probe_kx070.png. It varies constant Hermite hypercollision at fixed paper-facing initializer and normalization. The stronger nu_hyper_m=0.03 row reduces the final Hermite-tail fraction to about 0.099 but leaves the mean trace error near 0.289 and the late-window envelope about 4.3 times the digitized reference. The next step is therefore a physically motivated velocity-space closure/operator study, not a normalization change or another single-parameter constant-damping scan.

The W7-X fluctuation/TEM extension lane is tracked by docs/_static/w7x_tem_extension_status.png and the TEM branch audit docs/_static/tem_branch_parity_audit.png. The nonlinear fluctuation spectrum estimator is closed as a simulation diagnostic with 76 samples, but the TEM branch audit remains far outside any publication parity envelope: max |rel gamma|≈4.25, max |rel omega|≈3.3 away from the near-zero reference denominator, one growth-rate sign mismatch, three frequency sign mismatches, and an inverted frequency-branch ordering. No multi-alpha, multi-surface, or kinetic-electron W7-X nonlinear windows are admitted yet. These are now explicit blockers before broad W7-X/TEM validation or optimization claims.

Post-release scope

The following remain post-release manuscript lanes until their literature contracts and gates close:

• W7-X zonal long-window damping, recurrence, and closure under paper-facing normalization;

• W7-X fluctuation-spectrum experimental extension: the simulation-spectrum panel now has a reproducible estimator and gated artifact, but density and zonal-frequency comparison through a Doppler-reflectometry transfer function remains post-release;

• W7-X multi-flux-tube and TEM extension before broad stellarator-validation claims.

• production nonlinear heat-flux stellarator optimization, including converged VMEC/Boozer nonlinear transport gradients and optimized-equilibrium nonlinear audits.

Current release-scope guardrail

The canonical claim ledger for release notes and manuscript drafting is now Release Scope and Claim Boundaries. It records which claims are supported by the current artifacts and which remain explicitly unpromoted. In short: release-level validation is closed for the scoped benchmark, quasilinear diagnostic/model- selection, artifact-passing reduced differentiable-geometry, independent-work parallelization, runtime/refactor artifact-contract, and profiler-localization claims, including the fixed-resolution QI equal-arc row after the half-mesh convention fix. Production nonlinear heat-flux stellarator optimization, broad QI validation, runtime absolute quasilinear flux prediction, electromagnetic quasilinear calibration, nonlinear multi-GPU speedup, W7-X zonal recurrence closure, and W7-X TEM/kinetic-electron validation remain future gates.

Active refactor lane

The current branch is splitting large modules into smaller, tested units while preserving public behavior and benchmark parity. Refactors should only land when they add or preserve tests for the extracted behavior.

Current refactor status: runtime startup, GX-style diagnostics, adaptive chunks, runtime result assembly, pure runtime policies, linear parameter policies, linear linked-boundary maps, nonlinear diagnostic packing, validation-gate helpers, zonal-validation helpers, and nonlinear parallelization policy metadata are split out and tested. Benchmark normalization/Krylov defaults and pure benchmark helpers are also separated from the public runner module while preserving the spectraxgk.benchmarks compatibility surface. The latest restart-artifact contract keeps NetCDF continuation appends on the persisted diagnostic schema. Treat this as release engineering: it supports maintenance, restart reproducibility, and future refactors, not a production nonlinear optimization or broad validation claim.

Highest-value remaining slices:

• runtime.py run dispatch, artifact writing, and plotting hooks;

• linear.py cache construction, field solve calls, RHS kernels, and integration paths;

• nonlinear.py bracket kernels and long diagnostic integration paths;

• benchmarks.py runner orchestration and benchmark artifact policy;

• plotting and publication-figure helpers;

• VMEC/Miller geometry adapter boundaries.

Validation gates

Research-facing validation is organized around artifact gates. Each gate should have an owning script, frozen output path, reference source, fit/window policy, and explicit numeric tolerance.

Linear gates:

• growth rate and real frequency from late-time fits;

• branch continuation and near-marginal behavior;

• eigenfunction overlap and phase/sign conventions;

• velocity-space and field-line resolution convergence;

• geometry-contract parity for Miller and VMEC imports.

Nonlinear gates:

• windowed heat-flux statistics rather than single-time comparisons;

• mode-resolved Wphi and heat-flux spectra;

• conservation/free-energy behavior in reduced limits;

• restart and diagnostic-order regressions;

• stable long-window behavior for Cyclone, Miller, KBM, W7-X, and HSX lanes.

Response-function gates:

• Rosenbluth-Hinton/GAM response in shaped tokamak cases;

• W7-X and HSX zonal-flow response using the same extraction protocol;

• damping, frequency, residual, and recurrence diagnostics reported together.

Autodiff gates:

• finite-difference, tangent, and adjoint consistency where applicable;

• sensitivity maps for growth rates, frequencies, and selected transport metrics;

• two-parameter inverse problems with covariance/uncertainty estimates;

• differentiable geometry gradients after the vmec_jax bridge is added.

Near-term physics priorities

The next physics lanes should be closed in this order after the pre-release scope above is stable:

1. W7-X zonal-response residual and late-envelope closure. The VMEC-backed SPECTRAX-GK artifact now uses the paper-facing potential initializer, signed line-average observable, line-first normalization, and no hidden time-axis scaling. The long-window comparison reaches the digitized stella/GENE time windows for all four wavelengths, but residuals fail at k_x rho_i=0.07, 0.10, and 0.30 and the late envelopes are much larger than the digitized traces. The tracked TOML keeps gaussian_width=1 because the benchmark source writes the initializer as exp[-(z-z0)^2]; wider profiles and non-unit time scales are explicit audits only. The runtime now preserves final samples under strided diagnostics, aborts checkpointed artifact runs on the first non-finite diagnostic chunk, and preserves signed zonal line/mode diagnostics across external restart continuation. A four-wavelength Nl=16, Nm=64, dt=0.05 refresh reached raw runtime t≈100 with finite signed traces, so longer restart-continued W7-X traces can now be used to study the remaining physics/numerics issue directly. A constant-Hermite hypercollision follow-up reduced moment-tail energy but did not close the trace residual or late envelope, so the next sweep should vary the closure/operator physics rather than simply increasing constant damping.

2. Tighten the now-materialized windowed nonlinear-statistics panel beyond the current 0.10 release gate where the literature/reference windows justify stricter tolerances.

3. W7-X multi-flux-tube ITG/TEM extension and fluctuation-spectrum lane. The simulation-spectrum estimator is closed, while TEM linear parity, alpha/surface-resolved scans, and kinetic-electron nonlinear windows remain open in docs/_static/w7x_tem_extension_status.json and docs/_static/tem_branch_parity_audit.json.

4. Shaped multispecies tokamak linear lane.

5. ETG nonlinear only after its benchmark operating point and observable contract are explicit.

Performance and memory

Performance work should stay measurement-driven. The current priorities are:

• separate cold compile, cache construction, first-step compile, warm runtime, and output/plot time in every reported panel;

• reduce integrator compile cost before optimizing small runtime kernels;

• keep large constants out of closed-over JIT state when possible;

• stream diagnostics rather than materializing full histories by default;

• expose JAX memory-allocation and persistent-cache guidance for production sweeps;

• use distributed parallelization first for independent scans, UQ ensembles, sensitivity sweeps, and linear batches before attempting nonlinear domain decomposition;

• only introduce custom kernels after profiling shows a persistent XLA bottleneck.

Differentiable geometry and optimization

After the refactor/testing lane is stable, the differentiable geometry plan is:

1. Replace the remaining local grad-\(B\) drift closure with the production VMEC/EIK drift convention.

2. Add gradient checks for geometry-to-observable paths.

3. Promote examples from sensitivity analysis to inverse design, uncertainty quantification, and stellarator optimization only after the derivative checks and benchmark artifacts are frozen.

Testing and CI

The package-wide coverage target remains 95%, but coverage alone is not the goal. Tests should map to equations, numerical schemes, diagnostics, artifacts, benchmark observables, or differentiability contracts.

CI tiers:

• pull requests: type checks, fast test shards, docs build, package build, and release-surface coverage;

• main/manual: wider package coverage and selected artifact checks;

• workflow dispatch: full local validation suite;

• office/manual: GX parity, VMEC/W7-X validation, runtime/memory sweeps, and multi-GPU checks.

Documentation and examples

Documentation should remain user-first at the top level: install, run the executable, plot an output file, inspect diagnostics, and reproduce shipped figures. Longer benchmark caveats belong in the verification and benchmark pages.

Examples that should stay maintained:

• default Cyclone linear run and plotting;

• Miller geometry;

• VMEC imported geometry;

• W7-X and HSX nonlinear runs;

• plotting from output files;

• autodiff inverse/UQ examples;

• profiling and memory diagnostics;

• parallelization examples.

Release policy

PyPI publishing is handled through the tag-driven GitHub release workflow. Release notes should distinguish closed lanes from open paper lanes. Open research artifacts can be included in the roadmap, but should not be described as validated until their scripts, outputs, references, and gates are frozen.
