Numerics

Spectral discretization

Perpendicular spatial coordinates are discretized with Fourier modes on a uniform grid in \(x\) and \(y\), while the parallel coordinate is resolved in real space along the field line. The velocity space uses a Hermite-Laguerre basis. The resulting data layout for a single species is

(N_l, N_m, N_y, N_x, N_z).

Algorithm mapping (numerics → code)

The core numerical algorithms and their implementation entry points are:

JAX execution model

The implementation leverages the following JAX primitives:

  • JIT compilation: jax.jit is used in spectraxgk.linear._integrate_linear_cached() to stage time-stepping kernels.

  • Loop fusion: jax.lax.scan drives the time integration loop.

  • FFT grids: jax.numpy.fft.fftfreq is used in spectraxgk.grids.build_spectral_grid().

  • Sparse Krylov solver: jax.scipy.sparse.linalg.gmres is used for the implicit linear solve in spectraxgk.linear.integrate_linear().

  • Stencil operations: jax.numpy.roll and jax.numpy.pad implement the centered z derivative and Hermite/Laguerre ladder couplings in spectraxgk.linear.grad_z_periodic(), spectraxgk.linear.streaming_term(), spectraxgk.linear.apply_hermite_v(), spectraxgk.linear.apply_laguerre_x().

These links are clickable in the HTML docs via the viewcode extension.

Time integration algorithms

The linear solver supports:

  • Forward Euler (method="euler") and RK2/RK4 explicit schemes for non-stiff runs.

  • reference-compatible RK4 with CFL step control (integrate_linear_gx). The timestep is recomputed from the linear max-frequency estimate using the benchmark-locked CFL rule, and growth rates are extracted from the midplane phi ratio using the same diagnostic convention as the tracked comparison data.

  • IMEX (semi-implicit) where the collisional/hyper-diffusion terms are treated implicitly and the remaining terms explicitly.

  • Backward Euler + GMRES in method="implicit" for stiff scans, with a diagonal preconditioner that includes damping and drift/mirror diagonals.

  • IMEX (implicit linear operator + explicit nonlinear term) in method="imex" for nonlinear runs, using the same GMRES-based linear solve and preconditioner.

These are all implemented in spectraxgk.linear.integrate_linear() and share the cached operator data assembled by spectraxgk.linear.build_linear_cache().

Diffrax integration

Diffrax-backed solvers are available via spectraxgk.diffrax_integrators.integrate_linear_diffrax() and spectraxgk.diffrax_integrators.integrate_nonlinear_diffrax(). Explicit solvers (e.g., Tsit5) and implicit/IMEX solvers (e.g., KenCarp) are supported. Progress reporting is disabled by default; enable it by setting TimeConfig.progress_bar=True (or progress_bar=True in the integrator call). Diffrax currently emits a warning when evolving complex-valued states; the solvers still run, but treat this as experimental behavior.

Use spectraxgk.config.TimeConfig and spectraxgk.runners.integrate_linear_from_config() to select diffrax integration from input configuration without changing call sites. By default, TimeConfig enables diffrax with a fixed-step Dopri8 solver; set use_diffrax=False to force the built-in fixed-step integrators.

For distributed parallelization, set TimeConfig.state_sharding = "auto" (or "ky" / "kx" for the release-gated nonlinear path) to partition the packed state array over multiple JAX devices. This is honored by diffrax integrations and by the fixed-step nonlinear scan through integrate_nonlinear_sharded. When only one device is visible, the parallelization request is ignored and the run proceeds on a single device while preserving the same control-flow path for identity testing. The nonlinear config path intentionally rejects "z" sharding because the current multi-device FFT-axis decomposition has not passed the identity gate. On macOS you can emulate multiple CPU devices with XLA_FLAGS=--xla_force_host_platform_device_count=2 for non-FFT-axis parallelization checks, but multi-GPU artifacts remain the release reference for active nonlinear state sharding.

For scan workloads, the default path is custom fixed-step imex2 with TimeConfig.use_diffrax=False. This keeps stepping shape-stable and improves throughput for multi-ky scans. Diffrax adaptive stepping remains available as an optional mode through TimeConfig.use_diffrax=True.

Nonlinear FFT bracket

The nonlinear \(E\times B\) term is evaluated pseudospectrally using FFT-based derivatives in the perpendicular plane. By default SPECTRAX-GK uses the compressed real-FFT path (TimeConfig.gx_real_fft = true), which computes gradients from the Nyquist-compressed (N_y/2+1) spectrum using the benchmark-compatible compressed wavenumber layout: non-negative k_y (including positive Nyquist when N_y is even) and a positive Nyquist multiplier on the k_x axis when N_x is even. The result is then expanded back to full \(k_y\). This matches the tracked nonlinear reference layout and minimizes memory traffic. Set gx_real_fft = false to use the full complex FFT bracket instead.

For electromagnetic nonlinear runs, SPECTRAX-GK stacks the gyro-averaged potentials J0*phi, J0*apar, and the bpar correction into a single FFT batch. This collapses multiple rFFT/iFFT passes into one pipeline per step and reuses the same real-space gradients for all channels. Laguerre/Bessel factors on the benchmark quadrature grid (J0 and J1/alpha) are precomputed once per grid and cached in the linear operator, so the nonlinear kernel only applies them via inexpensive elementwise multiplies. For nonlinear runs that do not require the benchmark quadrature grid, set TimeConfig.laguerre_nonlinear_mode="spectral" to skip the Laguerre quadrature transform and instead use the spectral gyroaverage factors Jl directly. The default "grid" mode applies the quadrature transform.

De-aliasing and hyperdiffusion

Nonlinear brackets are filtered using the standard 2/3 de-alias mask. The mask lives on the spectral grid and is applied after each bracket evaluation. Additional numerical stabilization is provided by hyperdiffusion in \(k_\perp\) (TermConfig.hyperdiffusion / D_hyper settings), which acts as a scale-selective damping term and is treated implicitly in IMEX schemes.

Performance tuning

SPECTRAX-GK includes several performance-oriented options that preserve end-to-end JAX differentiability:

  • Streaming growth-rate fits: use spectraxgk.diffrax_integrators.integrate_linear_diffrax_streaming() to compute (gamma, omega) online without storing time series. This reduces memory pressure during long scans. The streaming fit supports phi or density moments via fit_signal and uses a fixed tmin/tmax window.

  • Batched ky scans: pass ky_batch>1 to the benchmark scan helpers to integrate multiple ky values at once using a sliced ky grid. Set fixed_batch_shape=True (default) to edge-pad the final batch and avoid recompilation on short tail batches.

  • Stacked FFT channels: nonlinear brackets batch phi/apar/bpar into a single FFT pipeline so the spatial derivatives are computed once and reused across fields. This removes redundant transforms and reduces FFT calls.

  • Donation and parallelized buffers: time integrators donate state buffers in JIT-compiled paths to reduce allocations. The diffrax integrators accept a state_sharding argument if you want to preserve explicit JAX parallelization on the state array.

  • Implicit preconditioning hooks: implicit_preconditioner accepts "auto"/"diag"/"physics"/"block" (full diagonal preconditioner), "damping" (collisional/hyper-only), "pas" (PAS line preconditioner), "pas-coarse" (line + coarse correction in kx/linked-kx chains), "hermite-line" (Hermite streaming line solve in m at fixed \(k_z\)), or "hermite-line-coarse" (Hermite line solve + kx-coarse correction), or "identity" to disable preconditioning.

  • Shift-invert preconditioning hooks: the shift-invert Krylov solver uses GMRES solves for (A - \sigma I)^{-1}. Configure KrylovConfig.shift_preconditioner to accelerate these solves with "damping" (element-wise inverse of the collisional/hyper damping) or "hermite-line" (Hermite streaming line solve via FFT in z and a tridiagonal solve in m). The "-coarse" variants add a lightweight coarse correction in the kx direction (for linked boundaries this averages within linked chains; for periodic boundaries this reduces to a kx-mean).

  • Targeted shift-invert mode selection: set KrylovConfig.mode_family (for example "cyclone", "etg", "kbm") and KrylovConfig.shift_selection to stabilize branch selection in stiff spectra. KrylovConfig.fallback_method controls the automatic fallback policy when shift-invert returns a non-finite or strongly damped mode.

  • Reusable IMEX operators: nonlinear IMEX runs can prebuild and reuse the matrix-free linear operator with spectraxgk.nonlinear.build_nonlinear_imex_operator() and pass it to spectraxgk.nonlinear.integrate_nonlinear_imex_cached() via implicit_operator. When apar=bpar=0, the IMEX fixed-point and post-step field paths use the same electrostatic compiled linear-RHS route as the explicit nonlinear RHS, avoiding unused electromagnetic Hamiltonian branches while preserving the generic-RHS identity gate.

Automatic solver + fit-signal selection

For newcomer-friendly runs, the benchmark and runtime drivers accept solver="auto" and fit_signal="auto". The auto solver tries the preferred path for the case (time integration for ion-scale Cyclone/KBM benchmarks, Krylov for ETG) and falls back to the alternative if the returned (gamma, omega) is non-finite or violates require_positive. The auto fit-signal choice computes both phi and density moment time traces (when available), scores each using the same windowing rules (R^2 of log-amplitude and phase fits plus an optional growth-rate weight), and selects the higher score. To make this decision robust, auto mode disables streaming fits and stores the minimal time traces needed for the comparison.

Advanced users can override these defaults in TOML or Python drivers by setting solver="time"/"krylov" and fit_signal="phi"/"density" together with custom fit-window parameters.

Implementation note:

  • Cached hypercollision factors: the linear cache now stores the Hermite– Laguerre hypercollision ratios and masks to avoid repeated power operations inside the RHS assembly.

Gyroaverage and polarization

The Laguerre gyroaverage coefficients follow the Laguerre–Hermite convention used in Hermite–Laguerre gyrokinetic moment closures,

\[J_\ell(b) = \frac{1}{\ell!}\left(-\frac{b}{2}\right)^\ell e^{-b/2},\]

with \(b = k_\perp^2 \rho^2\). This definition is consistent with the Laguerre projection of the gyroaveraged potential in the Hermite–Laguerre closure used by the linear operator.

Parallel streaming

The streaming operator is applied in real space using a spectral periodic derivative in \(z\) (FFT-based, via jax.numpy.fft) and the Hermite ladder coupling

\[\mathcal{L}_m[H] = \sqrt{m+1} H_{m+1} + \sqrt{m} H_{m-1}.\]

In the current linked-FFT formulation we apply the parallel derivative to the non-adiabatic moments plus explicit field terms before the Hermite ladder is applied. In other words, the streamed quantity is

\[\tilde{G}_{\ell m} = G_{\ell m} + \frac{Z_s}{T_s} J_\ell \phi\,\delta_{m0} - \frac{Z_s v_{th}}{T_s} J_\ell A_\parallel\,\delta_{m1} + J_\ell^B B_\parallel\,\delta_{m0},\]

so that the current streaming term uses \(\partial_z \tilde{G}\) instead of the full \(H_{\ell m}\) derivative. This matches the ordering and ghost exchange used by GX’s grad_parallel_linked operator.

Curvature, grad-B, and mirror couplings

The magnetic drift terms follow a Laguerre-Hermite stencil: curvature (cv) couples Hermite indices \(m\pm 2\), grad-\(B\) (gb) couples Laguerre indices \(\ell\pm 1\), and the mirror term couples \(m\pm 1\) and \(\ell\pm 1\) with a \(b^\prime(\theta)\) prefactor. These couplings are applied directly to the gyrokinetic variable \(H_{\ell m}\) built from the non-adiabatic moments and the gyroaveraged potential.

Putting the pieces together, the linear operator is assembled from:

  • Streaming: \(v_{th}\,\partial_z\) with Hermite ladder couplings.

  • Mirror: \(b'(\theta)\) coupling across \((\ell\pm1, m\pm1)\).

  • Curvature drift: cv_d coupling across \(m\pm2\).

  • Grad-B drift: gb_d coupling across \(\ell\pm1\).

  • Diamagnetic drive: \(\omega_*\) energy-weighted source in m=0,2.

Operator toggles start from spectraxgk.linear.LinearTerms and are converted into one canonical spectraxgk.terms.TermConfig through spectraxgk.linear.linear_terms_to_term_config(). The same modular RHS path is then used by fixed-step linear integrators, diffrax integrators, Krylov operator applications, and nonlinear IMEX linear solves.

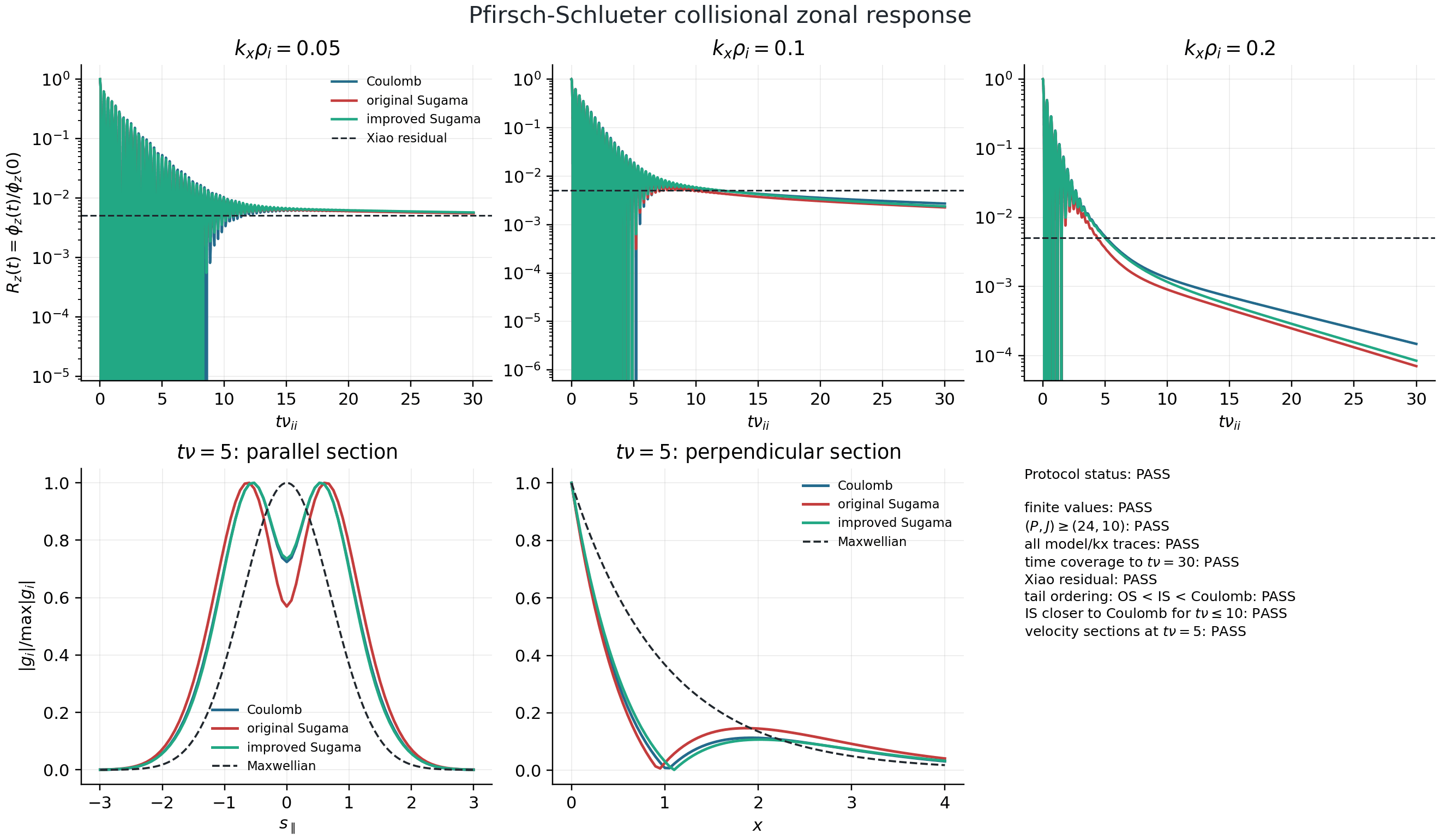

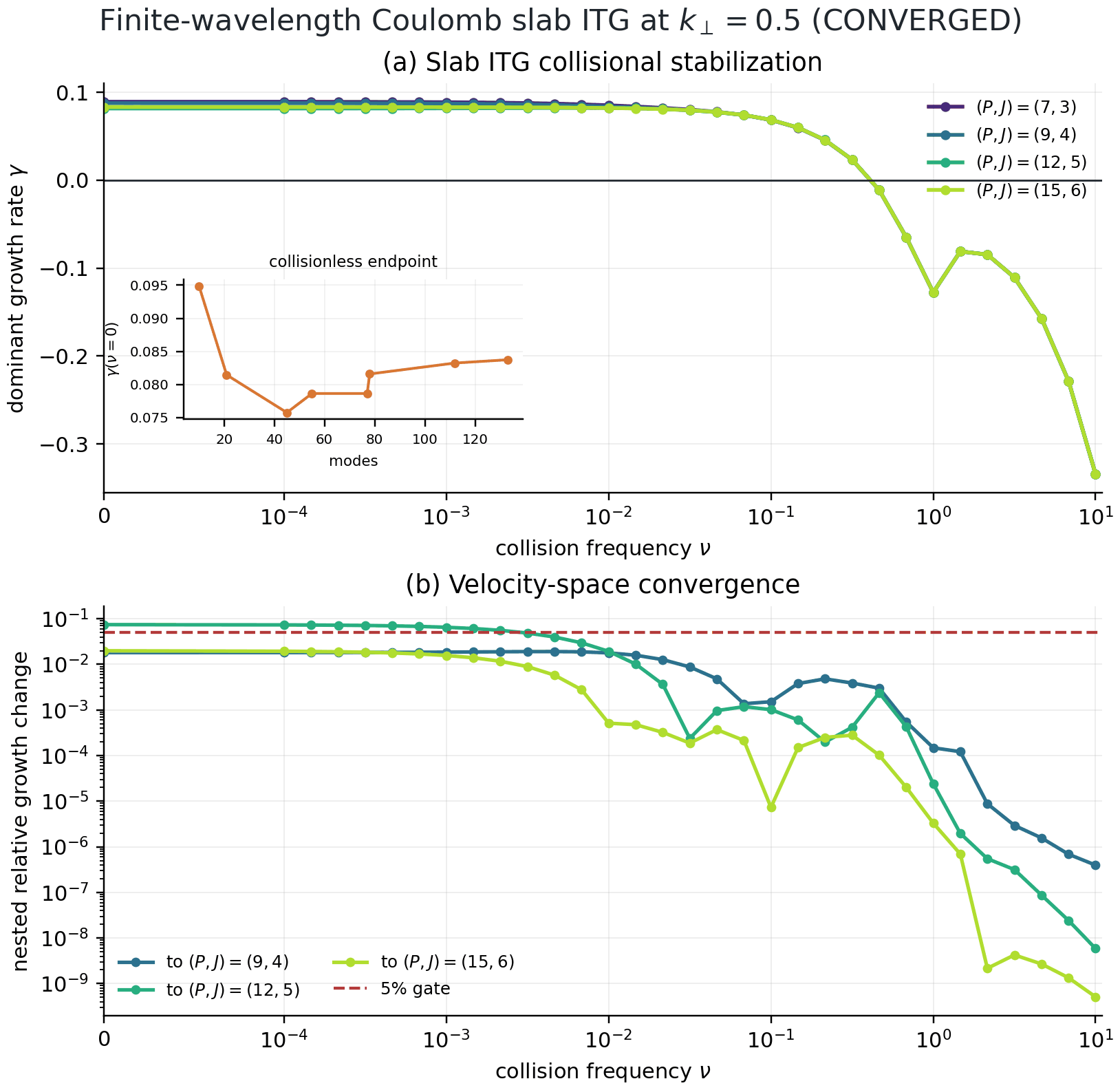

The RHS is assembled in spectraxgk.terms via spectraxgk.terms.assemble_rhs_cached(), which sums per-term kernels (streaming, mirror, drifts, diamagnetic drive, collisions, hyper-collisions, and end damping). This keeps the physics core branch-free and easier to extend, while preserving JAX differentiability and performance.

For the explicit equations and per-parameter operator definitions, see Operators And Terms.

Field solve and electromagnetic coupling

Electrostatic runs solve quasineutrality for \(\phi\) with optional Boltzmann response (tau_e). Electromagnetic runs solve the coupled quasineutrality/perpendicular-Ampere system for \((\phi, B_\parallel)\) and then compute \(A_\parallel\) from parallel Ampere’s law. The implementation is in spectraxgk.terms.fields and is called from spectraxgk.terms.assemble_rhs_cached().

Normalization control

LinearParams exposes a rho_star factor that scales the perpendicular wave numbers used in the drift and drive terms. This allows fine adjustments of the effective \(k_\perp \rho\) without changing the FFT grid spacing.

Diamagnetic drive

The diamagnetic drive is written in the standard energy form,

\[\mathcal{D}_{\ell m} = i \omega_*\, J_\ell(b)\, \phi \left[1 + \eta_i \left(\mathcal{E}_{\ell m} - \frac{3}{2}\right)\right],\]

where \(\omega_* = k_y R/L_n\), \(\eta_i = (R/L_T)/(R/L_n)\), and \(\mathcal{E}_{\ell m}\) is the Hermite–Laguerre energy operator applied to the basis. The coefficients are generated by spectraxgk.linear.diamagnetic_drive_coeffs().

Time integration

The linear system is integrated using explicit fixed-step schemes (Euler, RK2, RK4) implemented inside a jax.lax.scan loop. For higher-order Hermite-Laguerre scans, the imex and implicit options provide additional stability by treating damping terms implicitly. RK4 remains the default for the Cyclone harness.

Boundary damping

For field-aligned domains with extended \(z\) coverage, the linear operator optionally applies a smooth end-cap damping profile (matching the analytic linked-boundary taper used in flux-tube calculations). The damping profile is controlled by:

  • damp_ends_widthfrac: fraction of the domain used for the taper.

  • damp_ends_amp: damping amplitude applied to \(H_{\ell m}\).

The damping is only applied to nonzonal modes (\(k_y>0\)) and can be disabled by setting damp_ends_amp = 0 in LinearParams.

Dealiasing

Nonlinear E×B terms use the 2/3 de-aliasing rule in perpendicular Fourier space, consistent with standard pseudo-spectral practice. The current implementation applies the mask before and after the real-space bracket evaluation.

Nonlinear Electromagnetic Terms

The nonlinear kernel evaluates gyro-averaged Poisson brackets in spectral space and converts to real space only for the perpendicular derivatives. The E×B term advects each Hermite–Laguerre moment with a gyro-averaged potential \(\chi = J_0 \phi + J_1 b_\parallel\) (implemented via \(J_l\) and \(J_l^B\) in the Laguerre basis). The electromagnetic flutter contribution uses \(\{g_m, J_0 A_\parallel\}\) and couples adjacent Hermite moments with the standard ladder factors, matching the GX nonlinear formulation. See FC82, AL80, and GX in References for the governing electromagnetic gyrokinetic equations and GX’s implementation details.
