Benchmarks

GKX’s benchmark figures are organized as a compact atlas instead of a case-by-case gallery. The layout follows the standard gyrokinetic comparison pattern:

• linear growth-rate and real-frequency overlays versus k_y (or beta),

• nonlinear time traces of heat flux, free energy, electrostatic field energy, and magnetic field energy when present,

• compact panels that separate exact diagnostic closures from broader stress lanes.

The figures in this page are generated directly from tracked CSV assets, curated comparison traces, and the small root-level result index under benchmarks/results. Large run directories are deliberately excluded from git.

Figure generation

Lightweight benchmark drivers, runtime TOML inputs, and result-index pointers live in the repository root under benchmarks/. This is the canonical benchmark entry-point directory for users and developers. It is intentionally separated from examples/: examples teach workflows, while benchmarks reproduce validation panels and paper-facing comparison traces. Generated outputs should go to tools_out/ or another scratch directory; only reviewed, compressed summary figures and small CSV/JSON metadata are tracked in docs/_static.

The repository-size contract for this directory is deliberately strict: benchmarks/ should stay at the scale of small scripts and manifests, not simulation products. The tracked result manifest under benchmarks/results/manifest.toml is the docs-facing index for promoted figures and tables, while NetCDF files, restart files, logs, profiler traces, and exploratory plots remain outside git.

Quick driver examples:

python benchmarks/cyclone_linear_benchmark.py --outdir tools_out/cyclone_benchmark
python benchmarks/kbm_linear_comparison.py
python -m gkx.cli run-runtime-linear --config benchmarks/runtime_secondary_slab.toml
python benchmarks/secondary_slab_workflow.py

The Cyclone publication driver fits the terminal t=7--10 interval. A fresh trajectory audit showed that the previous automatic window could select the short t=5.07--5.38 startup transition and understate the ky=0.3 growth rate by more than a factor of two, even though the late-time mode converged to the tracked branch.

The KBM plotting driver reads the reviewed fixed-beta ky comparison table. Use tools/comparison/compare_gx_kbm.py with a matched external output to regenerate that table; branch selection remains a transitional time-history policy until the generic runtime reproduces the full scan. The generic runtime now provides the same CFL-controlled trajectory and can refit multiple branch extractors from one stored field history; the remaining gate is the converged full-grid replay, not missing runtime functionality.

Regenerate the atlas figures with:

python tools/artifacts/make_benchmark_atlas.py

The atlas builder now reads its inputs from tools/benchmark_atlas_manifest.toml and writes a machine-readable summary to tools_out/benchmark_atlas_summary.json so the panel provenance stays explicit. Future velocity-space convergence panels should use the same JSON-ready gate-report convention before they are promoted into the publication stack.

Capability and matched-comparison contract

benchmarks/capability_matrix.toml is the machine-readable source of truth for feature scope. It prevents two common errors: implying support because a related equation exists, and diagnosing a solver mismatch before the two runs actually use the same physical and numerical contract.

Required-core and extension status

Capability family	Status	Current claim
Electrostatic flux-tube dynamics and nonlinear ExB bracket	validated, scoped by case	Cyclone, Miller, W7-X, and HSX state/observable gates
Electromagnetic A_parallel/B_parallel dynamics	validated, scoped by case	KAW/KBM linear and KBM nonlinear gates
Boltzmann and kinetic species in a Hermite–Laguerre basis	validated, scoped by branch	adiabatic ITG is core; kinetic-electron/TEM remains a stress lane
Analytic, Miller, and imported VMEC geometry	validated, scoped by equilibrium	axisymmetric and selected W7-X/HSX comparisons
Restart, spectra, heat flux, and field-energy diagnostics	validated	schema plus numerical-identity and windowed-statistics gates
Independent k_y scans and UQ ensembles	production validated	CPU/GPU identity and strong-scaling evidence
Nonlinear multi-device domain decomposition	blocked	current benchmark-grid whole-state route is slower and fails identity
JAX autodiff, implicit gradients, and VMEC/Boozer optimization	validated, scoped	AD/FD, conditioning, covariance, geometry parity, and holdout gates
Conserving Dougherty and linearized Sugama/Coulomb collisions	validated reduced research boundary	conserving Dougherty-like runtime model plus published reduced original/ improved-Sugama and Coulomb matrix, invariant, dissipation, relaxation, and derivative gates. Full finite-\(b\) multispecies promotion still requires generated hierarchy, conductivity, ITG, zonal, and resolution evidence.
VMEC exact-periodic, continuous-drift, and fixed-aspect boundaries	validated, scoped	policy tests plus fixed-aspect W7-X/HSX comparison lanes
Equilibrium \(E\times B\) flow shear	numerical research API validated; physical model unshipped	zero-shear, shearing-wave, remap/dealias, cache, linear-suppression, AD/FD, linked-boundary, and fixed-step IMEX gates pass. The final fixed- step 64x64x24 response audit rejects promotion: the internal windows drift and show a 4.82% increase, while independently stationary comparison windows show a 24.82% increase. No input-file option is exposed.
Specialized KREHM, Vlasov–Poisson, collisional-ETG, and Beer/Smith closures	not shipped	separate reduced models are outside the full-gyrokinetic release claim
Species/Hermite multi-device operator execution	validated electrostatic operator route, scoped	periodic and linked 2 species x 2 Hermite identity gates pass; mixed electromagnetic and four-physical-device evidence remain open

A matched comparison must record the equations and normalization, geometry coefficients and parallel boundary, species conventions, perpendicular and velocity grids, initial condition and seed, precision and de-aliasing, integrator and timestep policy, collision/dissipation settings, diagnostic normalization, and the fit or transport window. A visually similar input file is insufficient. This rule is especially important for nonlinear saturation, where short state-level agreement does not establish a converged heat-flux comparison.

The promoted comparison contract was audited at GX revision bc2fe552. A fresh office clone confirms that revision and has aggregate source fingerprint sha256:bfaaadfa...20b. The long-lived instrumented office source tree is not a Git checkout and has fingerprint sha256:436e403e...a004; these two provenances must not be interchanged. The older binaries mixed system OpenMPI and netCDF with local HDF5 and are excluded. An isolated clean-revision rebuild now links one local OpenMPI 4.1.6, parallel netCDF 4.9.2, and HDF5 1.14.5 stack. The canonical Cyclone s-alpha probe completed 2,145 steps to t=10 in 23.1 s and wrote valid netCDF/restart outputs; at ky=0.3 its terminal diagnostic is (gamma, omega)=(0.101814, 0.286777). GX remains the mature baseline for conventional GPU nonlinear initial-value runs and species/Hermite multi-device execution. GKX’s distinct validated scope is its Python/JAX API, differentiable objectives, implicit gradient paths, CPU execution, and in-memory vmex/ booz_xform_jax integration. GKX does not claim the complete finite- wavelength multispecies linearized Landau hierarchy: its published reduced Sugama/Coulomb slice remains a separately gated Python research boundary.

Feature parity is intentionally not blanket parity. GKX’s required comparison scope is the standard electrostatic/electromagnetic gyrokinetic system, not GX’s optional KREHM, Vlasov–Poisson, collisional-ETG, forcing, transport-coupling, or Beer/Smith closure paths. Conversely, differentiable eigen/objective solves and the in-memory JAX geometry chain are GKX extensions rather than comparison requirements.

The audit also identifies equilibrium \(E\times B\) flow shear as a scientifically useful extension rather than a compatibility checkbox. Its coordinate, operator, timestep, and derivative foundations are validated, but the predeclared fixed-step transport-response gate failed. The implementation therefore remains a Python research API rather than an input-file feature. The compact negative-evidence record is docs/_static/flow_shear_fixed_step_response_gate.json; raw states and large comparison outputs remain off-repository.

Tracked results index

The root-level result index is benchmarks/results/manifest.toml. It points to the promoted benchmark figures and machine-readable tables without moving or duplicating large run products. The current tracked result set is:

Promoted benchmark result artifacts

Result	Tracked artifact	Claim scope	Regeneration path
Core linear benchmark atlas	docs/_static/benchmark_core_linear_atlas.png	headline linear validation atlas	python tools/artifacts/make_benchmark_atlas.py
Core nonlinear benchmark atlas	docs/_static/benchmark_core_nonlinear_atlas.png	headline nonlinear validation atlas	python tools/artifacts/make_benchmark_atlas.py
README benchmark summary panel	docs/_static/benchmark_readme_panel.png	compact publication-facing benchmark summary	python tools/artifacts/make_benchmark_atlas.py
Extended linear stress matrix	docs/_static/benchmark_extended_linear_panel.png	stress and provisional lanes, not headline validation claims	python tools/artifacts/make_benchmark_atlas.py
Runtime and memory comparison	docs/_static/runtime_memory_benchmark.png	tracked wall-time and memory comparison rows	python benchmarks/performance/benchmark_runtime_memory.py --summary-glob ...
Runtime and memory result rows	docs/_static/runtime_memory_results_ship_refresh.csv	machine-readable runtime/memory rows used by the tracked panel	python benchmarks/performance/benchmark_runtime_memory.py
Runtime and memory summary	docs/_static/runtime_memory_summary_ship_refresh.json	machine-readable summary for runtime/memory panel generation	python benchmarks/performance/benchmark_runtime_memory.py
Core linear atlas inputs	tools/benchmark_atlas_manifest.toml	manifest of small tracked benchmark inputs	python tools/artifacts/make_benchmark_atlas.py

This keeps the repository light: benchmarks/ stores only drivers and pointers, docs/_static stores reviewed compact figures/tables, and raw solver output directories remain untracked. The tracked benchmarks/ payload is intentionally on the order of tens of kilobytes.

The manifest above is the docs-facing source of truth for promoted benchmark results. If a new result is added to benchmarks/results/manifest.toml, it must either appear in this table or remain unpromoted in scratch storage.

This produces the tracked atlas panels:

• docs/_static/benchmark_core_linear_atlas.png

• docs/_static/benchmark_core_nonlinear_atlas.png

• docs/_static/benchmark_readme_panel.png

• docs/_static/benchmark_extended_linear_panel.png

PDF copies are emitted alongside each PNG for manuscript workflows.

Tracked benchmark metrics

The benchmark atlas uses the same small set of physically interpretable metrics throughout:

• growth rate gamma

• real frequency omega

• ion heat flux

• free energy

• electrostatic field energy (output variable Wphi)

• magnetic field energy when A_parallel or B_parallel are active

At the README level, these metrics are intentionally packed into one compact publication panel plus one separate runtime/memory panel. The atlas therefore answers two questions:

• which branches and diagnostics are being tracked for validation,

• which shipped cases have measured CPU/GPU/runtime-memory coverage.

A fresh bounded Cyclone check on 2026-07-10 used RK4 to t=20 at ky=0.3, N_l=16, and N_m=48 on an RTX A4000. The reference late-window mean was gamma=0.09582 and omega=0.28106; the unified runtime with the benchmark-aligned midplane observable returned gamma=0.09076 and omega=0.27828. Relative errors are 5.3% and 1.0%, respectively. The compact machine-readable record is docs/_static/cyclone_runtime_parity_refresh.json. Its wall times must not be read as a speedup: the reference invocation advanced 12 ky modes, while the GKX invocation advanced one.

Primary publication set

The headline validation set is limited to the full-gyrokinetic lanes that are already used in the current validation and regression workflow:

• Cyclone ITG linear and nonlinear

• KBM linear and nonlinear

• W7-X VMEC linear and nonlinear

• HSX VMEC linear and nonlinear

• Cyclone Miller geometry linear and nonlinear

The README atlas also includes one extended linear strip for exploratory or stress lanes that are still useful to show publicly without folding them into the primary validation claim:

• Cyclone kinetic electrons

• TEM

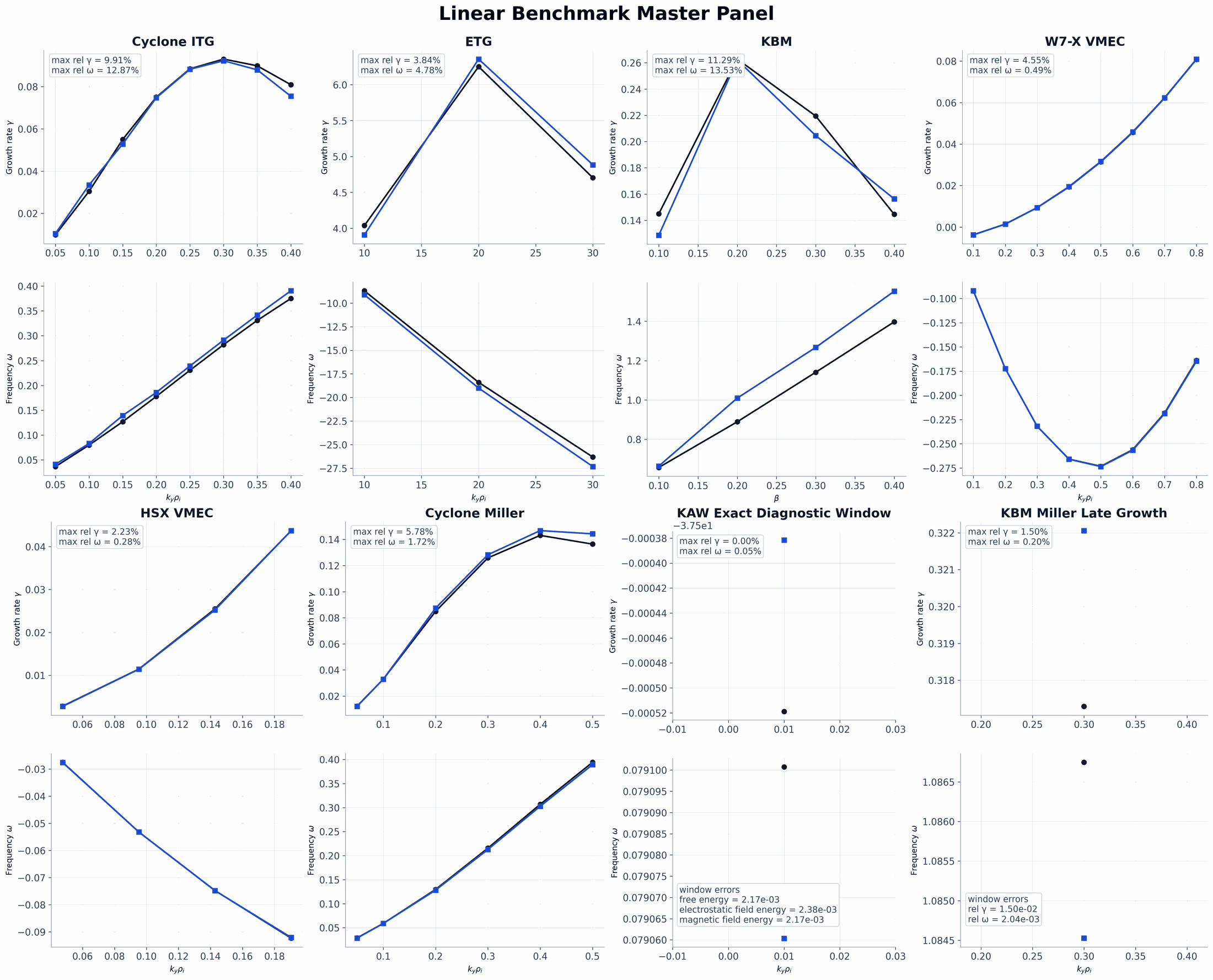

Linear benchmark master panel. This panel keeps the headline linear coverage on one page: Cyclone ITG, ETG, KBM, W7-X, HSX, Cyclone Miller, KAW, and the KBM Miller late-growth replay.

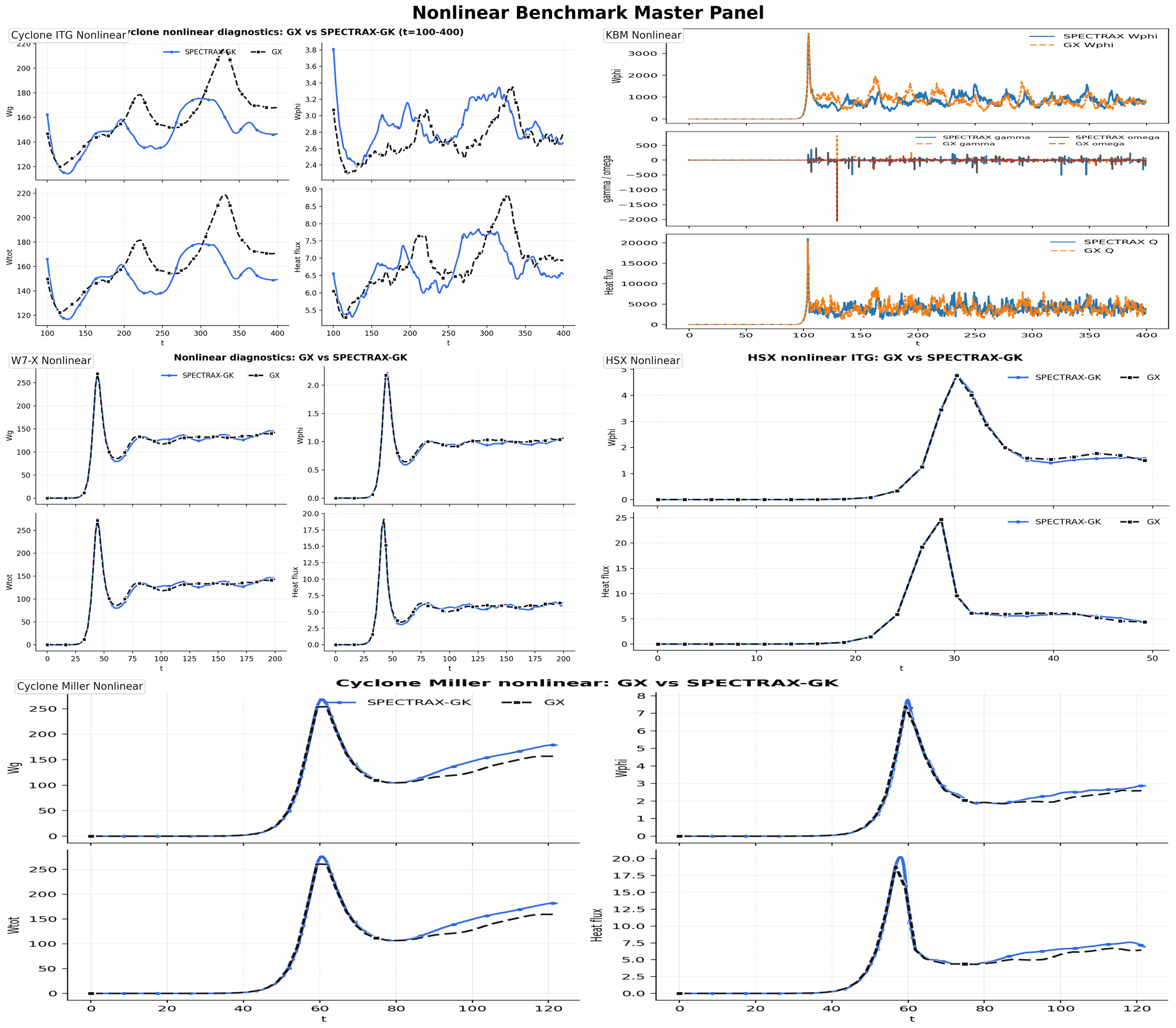

Nonlinear benchmark master panel. This panel groups the tracked nonlinear overlays used in the public benchmark set: Cyclone, KBM, W7-X, HSX, and Cyclone Miller.

For the current release pass, Cyclone, KBM, W7-X, HSX, and Cyclone Miller are treated as the acceptable nonlinear validation set in the main atlas. The short-window full-GK ETG pilot remains documented in the examples and testing notes, but it is intentionally kept out of the primary publication panel because it is a pilot rather than a headline transport benchmark. TEM and KAW are intentionally kept out of the active parity claim until their separate recovery work is finished.

The global release claim boundary is summarized in Release Scope and Claim Boundaries. Use that page when deciding whether a benchmark panel supports a README, release note, or manuscript claim.

Interpretation of validation

The atlas intentionally mixes two classes of evidence:

• broad benchmark overlays over scanned parameters such as k_y or beta,

• exact-window or exact-diagnostic closures on selected lanes.

Only the exact-window closures should be read as strict small-tolerance validation gates. In the current tracked set those are:

• KAW exact diagnostic window

• KBM Miller late-growth replay

The broader scanned benchmark panels are coverage figures, not universal rtol <= 3e-2 claims for every tile. They remain valuable because they show which branches and diagnostics are being tracked across the codebase.

Benchmark-specific replay knobs used to regenerate these figures stay confined to the benchmark builders in tools/. They are not promoted into generic runtime defaults for the solver or the shipped example drivers.

Benchmark runner internals

Reusable reference loaders and comparison policies live in gkx.benchmarking.shared; timestepping, scans, geometry, and physical operators use the same runtime and solver APIs as ordinary simulations. Case-level reproduction policy stays in root benchmarks/ drivers rather than creating a second installed solver stack.

Generic pointwise scans and representative-mode extraction are owned by gkx.workflows.linear. They deliberately call one linear solve per k_y and accept optional resolution and Krylov policies. Benchmark drivers provide case policy; the reusable workflow owns iteration, result assembly, mode selection, and fit-window extraction. The former scan_fn argument was removed because it was accepted but never used.

For the current stellarator nonlinear pair, the tracked public figures should also be read asymmetrically:

• HSX nonlinear is currently acceptable on the best validated t <= 50 trace and remains part of the public benchmark set.

• W7-X nonlinear is currently acceptable on the refreshed t <= 200 trace and remains part of the public benchmark set. It should still be read as a long-window benchmark closure rather than a universal small-tolerance claim for every late-time sample.

README summary panel

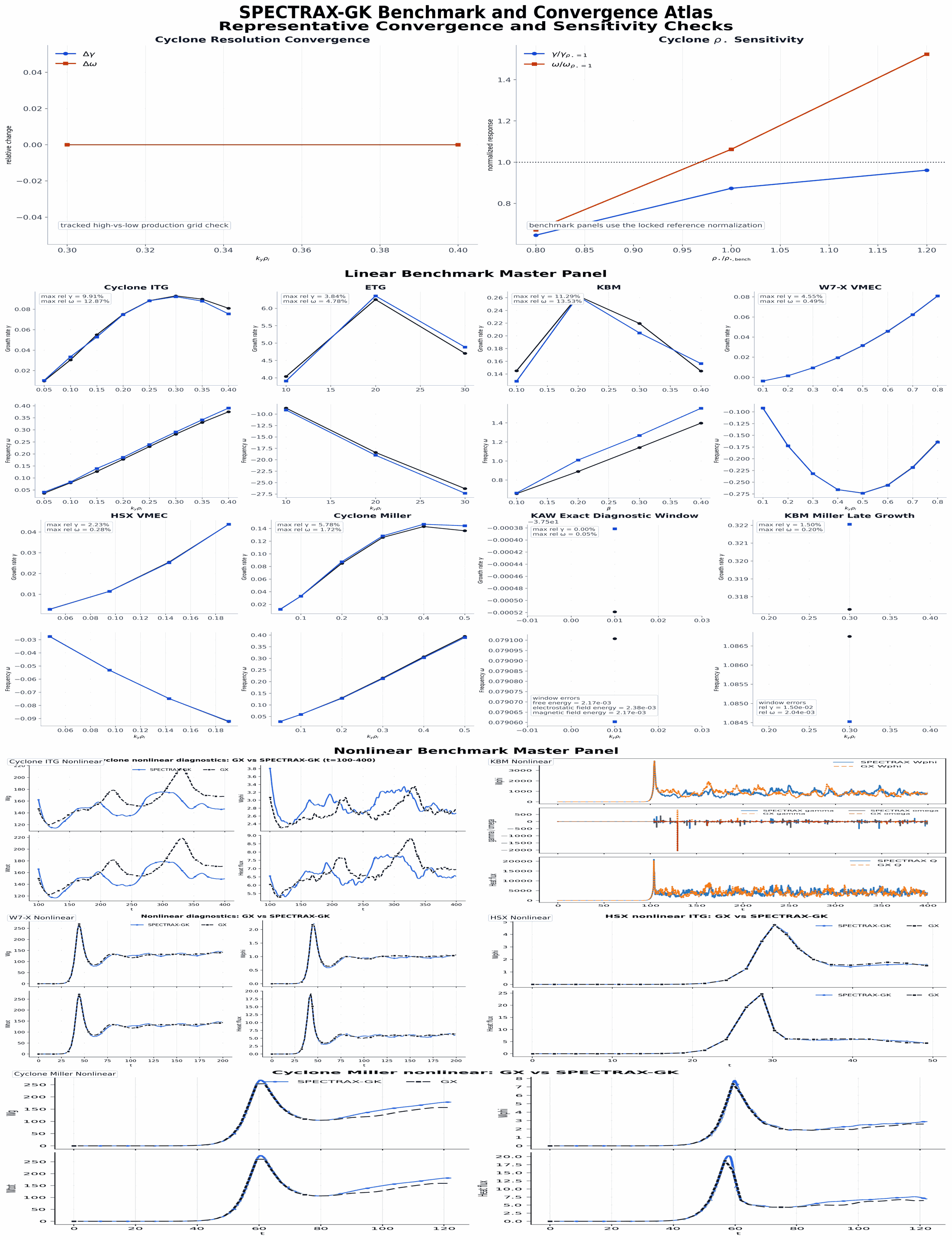

Publication-facing benchmark summary. The shipped summary/publication stack now includes the closed short-window full-GK ETG nonlinear pilot alongside the tokamak and stellarator headline lanes, while the top-level README atlas remains compact with one validation image and one separate runtime/memory image.

Supplementary closure figures

Some parity lanes are tracked as supplementary closure artifacts rather than as headline atlas tiles. Current examples include:

• docs/_static/nonlinear_cyclone_short_resolved_audit_t5.png for the corrected short nonlinear Cyclone replay, which now uses the explicit short-reference dissipation contract and localizes the remaining mismatch in resolved k_y field-energy diagnostics.

• docs/_static/comparison/secondary_reference_out_compare.csv for the refreshed secondary stage-2 mode table built from the dense kh01a GX replay.

• docs/_static/nonlinear_w7x_diag_compare_t200.png, docs/_static/hsx_nonlinear_compare_t50_true.png, and docs/_static/nonlinear_kbm_diag_compare_t100_refresh.png for the refreshed long-window nonlinear publication figures.

• docs/_static/etg_fullgk_pilot_compare_dt1e4_gaussian_match.png for the closed short-window full-GK ETG nonlinear pilot that now appears in the shipped summary/publication panels.

• docs/_static/kbm_eigenfunction_overlap_summary.png for the current eigenfunction-overlap summary on the tracked KBM GX candidate table. This is the first compact overlap artifact in the manuscript-facing stack and should be read as a branch-identity diagnostic. The raw mode-shape overlays are now tracked separately as docs/_static/kbm_eigenfunction_reference_overlay_ky0p3000.png and docs/_static/w7x_eigenfunction_reference_overlay_ky0p3000.png with JSON gate reports under docs/_static/reference_modes/.

Extended stress matrix

Not every benchmark lane belongs in the headline validation claim. The extended linear stress matrix keeps exploratory or still-evolving lanes visible without mixing them into the primary publication set.

The current extended panel covers:

• Cyclone kinetic electrons

• TEM (literature-backed stress lane)

• KBM Miller exact late growth window

The kinetic-electron scan is defined by examples/linear/axisymmetric/runtime_kinetic_electron.toml and runs through the unified runtime API. Its effective reference seed, linked-boundary damping, species, and electromagnetic toggles are explicit in that file rather than being applied by a hidden benchmark wrapper.

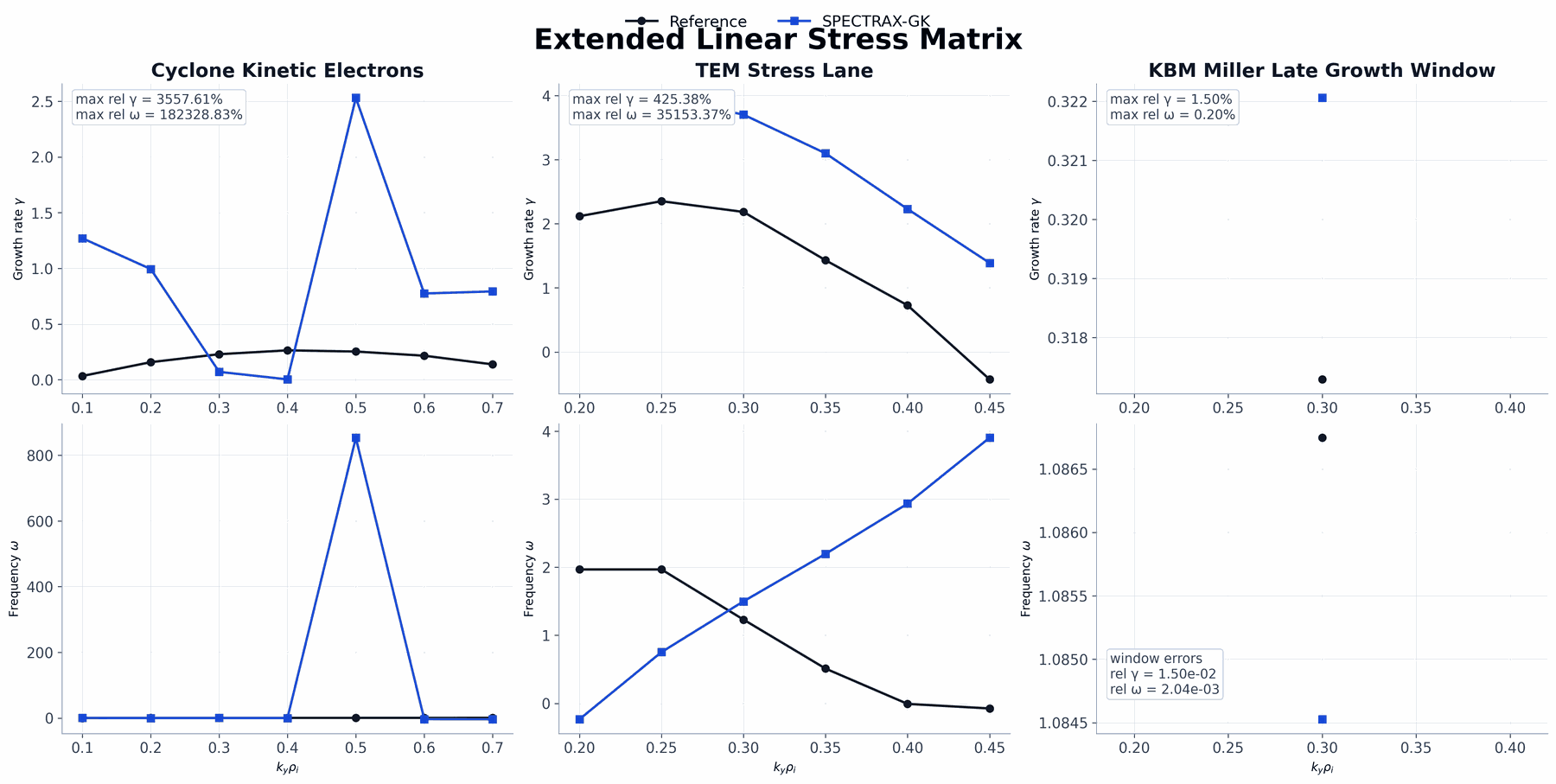

Extended linear stress matrix. These lanes remain visible for solver stress testing, but they are intentionally separated from the main publication panel.

The TEM row is provisional. The shipped tem_reference.csv is digitized from the literature rather than sourced from a GX benchmark dump, and the exact case definition behind that digitized curve is still being reassembled. It should be read as a tracked stress lane, not as a closed parity result. The executable audit docs/_static/tem_branch_parity_audit.{png,pdf,json,csv} records the open branch mismatch explicitly: maximum absolute relative growth-rate mismatch 4.25, maximum absolute relative frequency mismatch 3.3 after excluding the near-zero reference denominator, one growth-rate sign mismatch, three frequency sign mismatches, and a frequency-branch Spearman coefficient near -0.986.

The authoritative executable input is examples/linear/axisymmetric/runtime_tem.toml. It uses the unified runtime schema, including electron-only Gaussian moment initialization, and benchmarks/tem_linear_benchmark.py runs that file through the same runtime scan path exposed to users. A state/parameter/RHS identity test protects the migration from the former case-specific runner.

Case groups

Tokamak core cases

• Cyclone ITG: linear gamma/omega scans and nonlinear transport traces

• KBM: linear branch-following scans and nonlinear transport traces

• Cyclone Miller geometry: imported linear scan and nonlinear time-trace audit

Stellarator core cases

• W7-X VMEC: short-window linear scans and nonlinear transport traces

• HSX VMEC: short-window linear scans and nonlinear transport traces

Reduced and stress cases

• ETG: linear benchmark overlays

• KAW: exact late-time diagnostic reconstruction and exact-window energy audit

• KBM Miller: exact late-time growth replay on the tracked low-k_y branch

• Cyclone kinetic electrons: extended linear stress lane

• TEM: extended linear stress lane

Notes on interpretation

The atlas is split deliberately. The README stays limited to a compact publication panel, while this page keeps the larger linear, nonlinear, and stress figures visible without claiming that every scanned point is an exact closure.
